Used

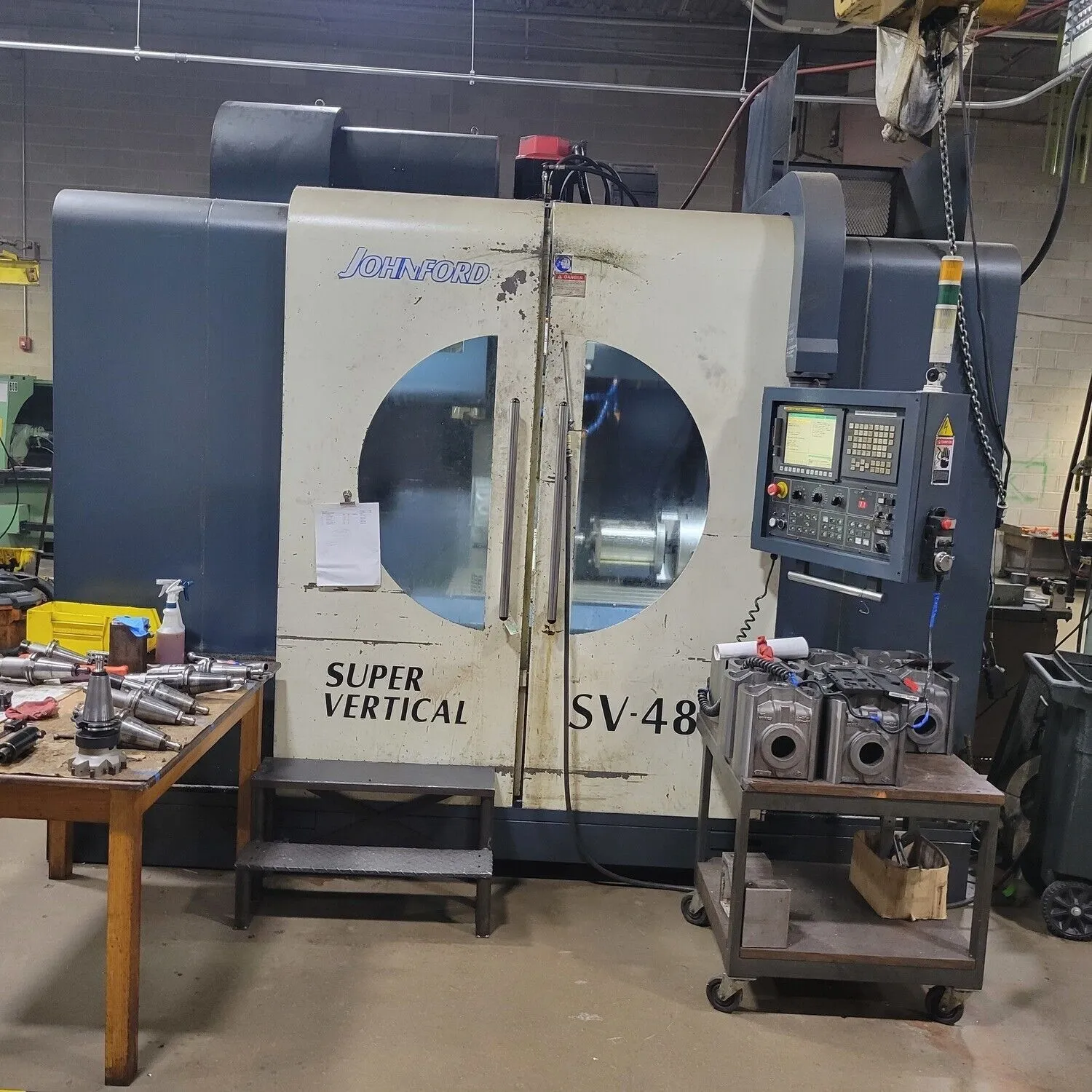

USED 2012 JOHNFORD SV-48H

California, United States
896Listings|318Followers
Overview
Vertical Machining Centers

Discover the 2012 JOHNFORD SV-48H CNC Vertical Machining Center—gently used, featuring FANUC control, 4th-axis table, and high-pressure coolant system. Ideal for precision machining.

Specs
X Axis Travel
48"
1,219.2 mm
Y Axis Travel
28"
711.2 mm
Z Axis Travel
24.8"
629.92 mm
Spindle Motor
20 hp
14.9 kW
Spindle Speed
6,000 RPM
6,000 RPM
ATC Capacity
24
24
Spindle Taper
CAT-50
CAT-50
# Axis
3
3
Table-W
27.6"
701.04 mm
Table-L
51.2"
1,300.5 mm
Table dimensions
27.6" x 51.2"
27.6" x 51.2"
Equipped With

FANUC Series 0i-MD Control
Ganro 4th-Axis Rotary Table
Ganro Tailstock
High Pressure Through Spindle Coolant
Chip Auger
