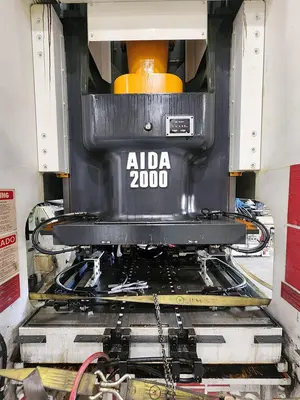

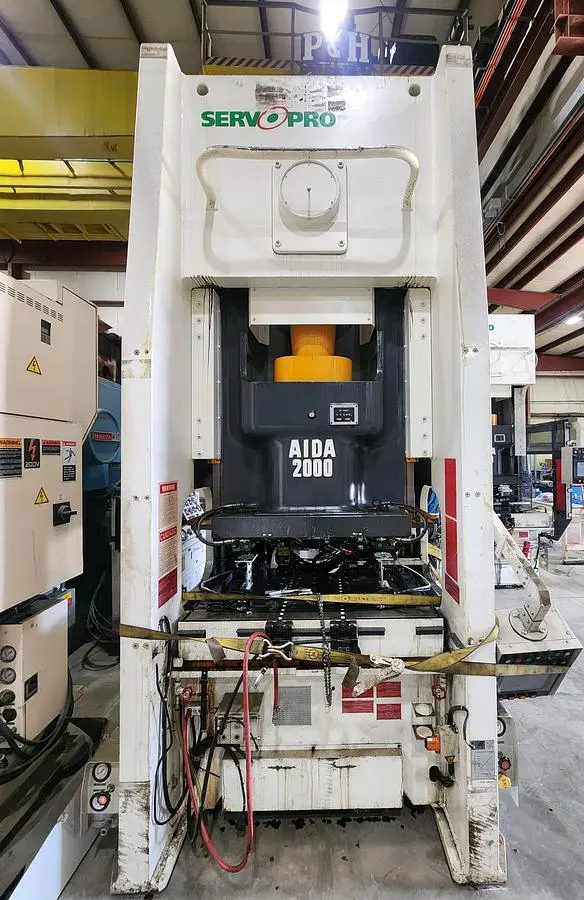

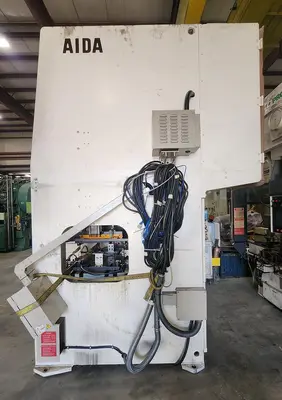

The Aida NS1-2000 (D) Servo Press is a used precision pressing machine known for its robust capabilities and efficiency. It offers a substantial tonnage of 220 tons, making it suitable for high demanding industrial applications. Its slide stroke measures 9.84 inches, with a flexible speed range allowing 0 to 50 strokes per minute at full stroke, accommodating various production needs.
With a die height of 17.7 inches and a slide adjustment of 4.33 inches, this press can handle a range of die sizes and configurations. The machine features a slide area of 39.4 inches by 25.6 inches, along with a bolster area of 49.2 inches by 33.1 inches, optimizing it for versatility in manufacturing processes. It operates under a required air pressure of 73 PSI and supports up to 2205 pounds of maximum upper die weight, with convenient hydraulic die clamping for ease of operation.
This servo press is designed to meet demanding production environments while maintaining precision and reliability. Its well-engineered specifications ensure efficient workflow and high-quality output. Suitable for businesses looking to upgrade their pressing operations without compromising on technology and performance.

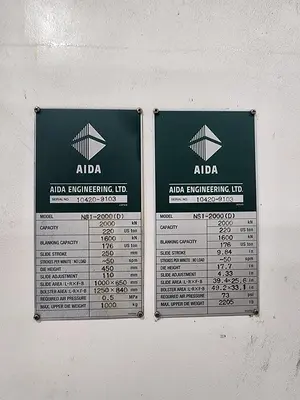

Tonnage: 220 tons
Slide Stroke: 9.84
Strokes per min: 0-50 full stroke
Die height: 17.7
Slide Adjustment: 4.33
Slide area: 39.4 x 25.6
Bolster area: 49.2 x 33.1
Required air pressure: 73
Max upper die weight: 2205
Die clamping: Hydraulic
Cushion: Yes
