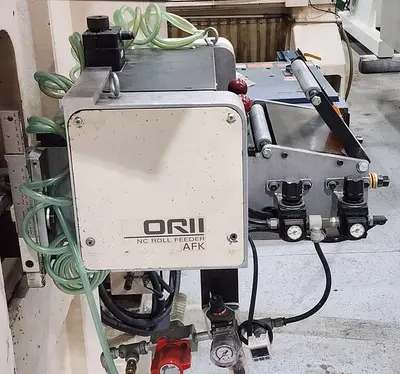

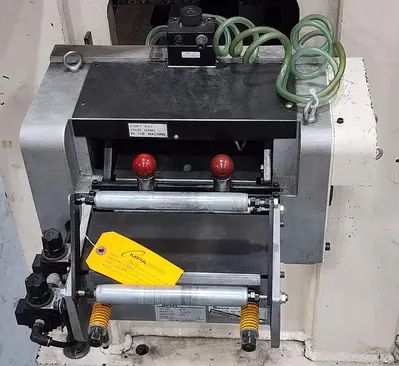

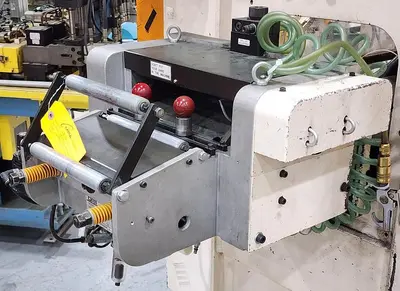

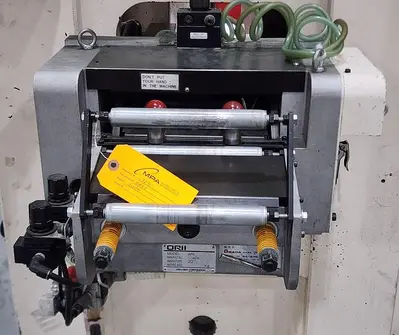

The ORII AFK Press Mounted Roll Feeder, model AFK02GBBX, is a reliable piece of feed line equipment suitable for precise and efficient operations. Manufactured in 2008, this used feeder accommodates stock thicknesses ranging from 0.004 inches to 0.090 inches and supports stock widths from 0.8 inches to 7 inches. It boasts a maximum feed length of 393 and a roll lift up to 200, ensuring versatility across various applications.
With a repeatability accuracy of within +/- 0.008, the feeder operates with dependable precision. The pass line is adjustable from 2.7 to 6.6 inches above the bolster, facilitating compatibility with different setups. Powered by a 0.4 kW AC motor that can run on 200/220 volts, this feeder also features air cylinder and spring mechanisms for feed roll pressurization and roll lift, providing robust performance.
Equipped with a manual fixed-width guide for entry stock side guidance and an end-of-stock detector as standard equipment, this ORII roll feeder is designed for streamlined use and productivity on the shop floor. Its compact integration into existing systems makes it a viable choice for operations looking to enhance their feeding processes efficiently.

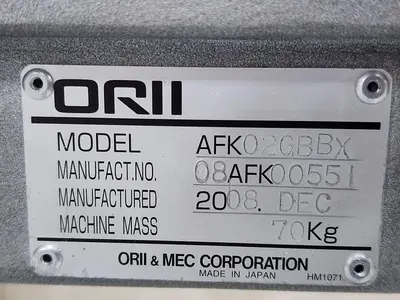

MODEL NUMBER: AFK02GBBX
SERIAL NUMBER: 08AFK0055
YEAR NEW: 2008
STOCK THICKNESS: 0.004" - 0.090"
STOCK WIDTH: 0.8" - 7"
FEED LENGTH: MAX 393
ROLL LIFT: MAX 200
REPEATABILITY: WITHIN +/- 0.008
MOTOR POWER KW: AC 0.4
MOTOR POWER V: 200/220
FEED ROLL PRESSURIZE: AIR CYLINDER + SPRING
ROLL LIFT MECHANISM: AIR CYLINDER
ENTRY STOCK SIDE GUIDE: MANUAL FIXED WIDTH GUIDE
STANDARD EQUIPMENT: END OF STOCK DETECTOR
