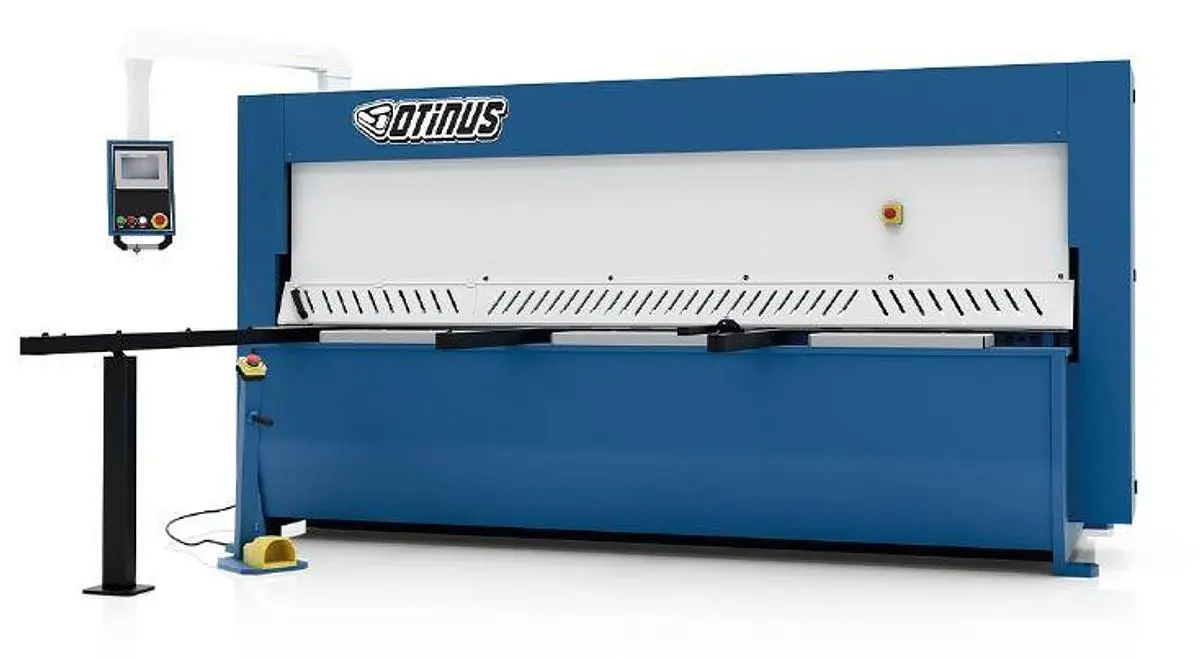

The OTINUS PRO: Guillotine Shear SMO-2106-PRO is a powerful and precise machine designed for cutting tasks in various industrial applications. It features the CybTouch 8w controller, which offers a user-friendly interface with simple pages and large keys for ease of programming. This system allows for automatic calculations of shear functions based on material specifications, ensuring optimal performance. Key functionalities include automatic blade gap adjustment, back gauge correction, and a 2/3-position sheet support with a Return to Sender function.
This guillotine shear is capable of cutting up to 1/4" thick materials like carbon steel, with a maximum cutting length of 83 inches. It operates at a rate of 26 strokes per minute, powered by an 11.0 kW motor. The hydraulic system's efficiency is supported by a 42-gallon capacity oil tank, while 13 hold-downs ensure stable and accurate shearing. The machine's dimensions are compact for its capability, measuring an overall width of 89 inches and a height of 62 inches, and it weighs approximately 8,820 lbs.
The OTINUS SMO-2106-PRO includes advanced features like automatic back gauge foldaway and parking positions, enhancing the operator's efficiency. With a back gauge range of 30 inches and powered by a 0.55 kW motor, the machine is built to accommodate both simple and complex cutting sequences swiftly. Designed with practical management of system and hold-down pressure, this shear ensures consistent, high-quality results, making it an essential tool for any industrial setting.
CAPACITY <450 N/MM sq.: 6 MM
CAPACITY <750 N/MM sq.: 4 MM
MAX CUTTING LENGTH FOR CARBON STEEL: 83"
RAKE ANGLE: 1.6 DEGREE
MOTOR POWER: 11.0 kW
NUMBER OF HOLDDOWNS: 13 PCS.
STROKES PER MINUTE: 26 CUTS/MIN
CAPACITY OF OIL TANK: 42 GAL
BACKGAUGE RANGE: 30"
BACKGAUGE MOTOR: 0.55 kW
APPROX WEIGHT: 8820 LBS
DIMENSION A: 89"
DIMENSION B: 17"
DIMENSION C: 48"
DIMENSION D: 19"
DIMENSION E: 39"
DIMENSION G: 31"
DIMENSION H: 62"
