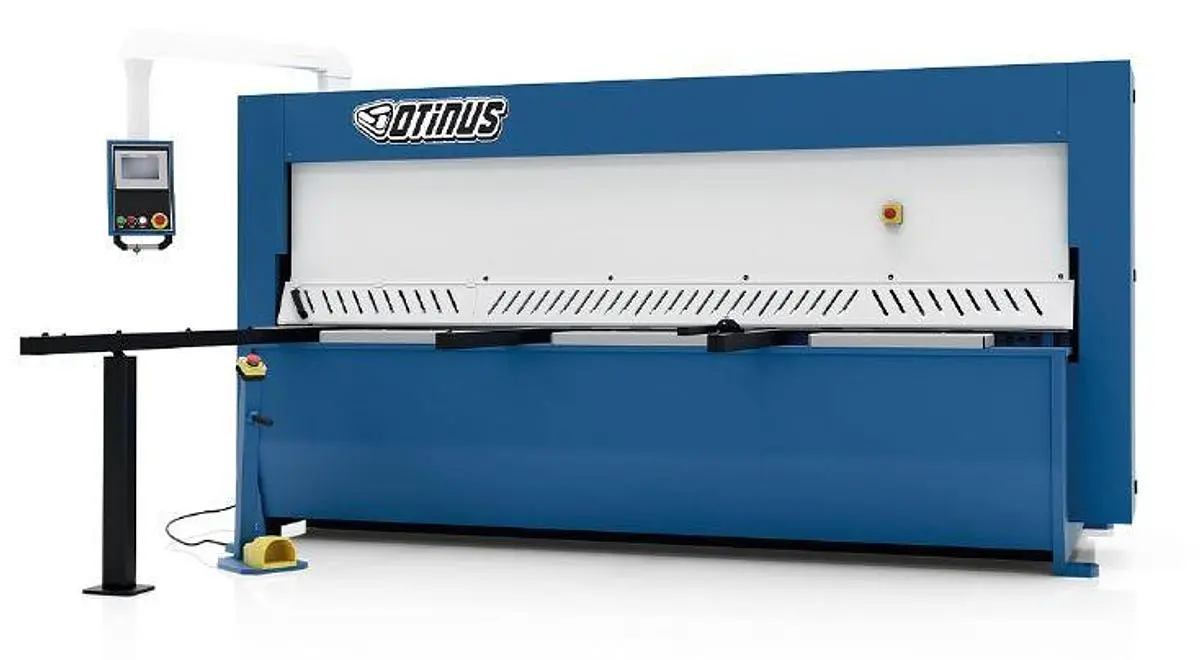

Introducing the OTINUS PRO Guillotine Shear model SMO-3108-PRO, a reliable and advanced machine designed for precision cutting tasks. This shear is equipped with the CybTouch 8w controller, mounted on a swivel arm for ease of use, which automatically manages shear functions based on material specifications. Automatic adjustments for blade gap and back gauge, as well as the intuitive front or back gauge management, ensure accurate and efficient operations.
This machine can handle carbon steel with a maximum cutting length of 122 inches for materials with up to 5 mm thickness, while maintaining a 1.8-degree rake angle powered by a robust 15.0 kW motor. Featuring a back gauge range of 30 inches and holding down pressure management, it offers maximum precision with 13 strokes per minute. The shear is designed for convenience with a parking/foldaway function and supports large cutting sequences.
The OTINUS PRO includes 17 hold-downs for securing materials during operation and has a 42-gallon oil tank capacity. The intuitive, user-friendly interface allows fast programming of parts. With dimensions of 130" x 17" x 57" and a weight of approximately 14,222 lbs, this state-of-the-art machine ensures operational efficiency while maintaining high-cut quality.
CAPACITY <450 N/MM sq.: 8 MM
CAPACITY <750 N/MM sq.: 5 MM
MAX CUTTING LENGTH FOR CARBON STEEL: 122"
RAKE ANGLE: 1.8 DEGREE
MOTOR POWER: 15.0 kW
NUMBER OF HOLDDOWNS: 17 PCS.
STROKES PER MINUTE: 13 CUTS/MIN
CAPACITY OF OIL TANK: 42 GAL
BACKGAUGE RANGE: 30"
BACKGAUGE MOTOR: 0.55 kW
APPROX WEIGHT: 14222 LBS
DIMENSION A: 130"
DIMENSION B: 17"
DIMENSION C: 57"
DIMENSION D: 19"
DIMENSION E: 39"
DIMENSION G: 31"
DIMENSION H: 65"
