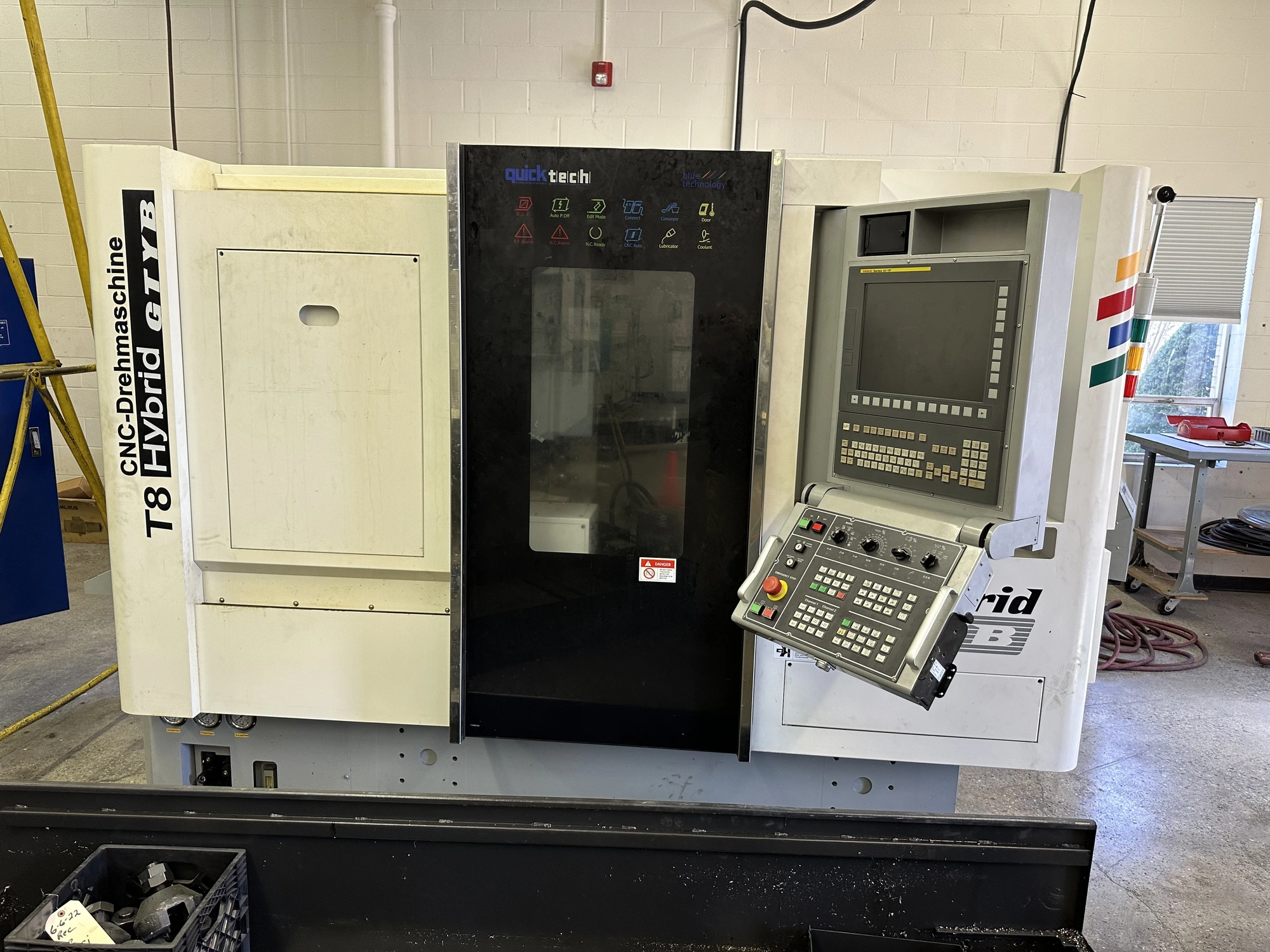

2016 Quicktech Model T8 Hybrid 9-Axis CNC Lathe, Twin Spindle, Milling, B-Axis, Fanuc 0i0TF Control, 4,000 RPM, Low Hours, Quicktech Magazine Style Barfeed
Swing Over Bed: 19.68" (500mm)
Swing Over Cross Slide: 11.81" (300mm)
Maximum Turning Diameter: 11.81" (300mm)
Maiximum Bar Diameter: 2.56" (65mm)
Maximum Turning Length: 13.77" (350mm)
Main Spindle Nose: A2-6
Main Spindle Bore: 2.59" (66mm)
Spindle Speeds (Main and Sub-Spindle): 0 - 4,000 RPM
Sub-Spindle Maximum Turning Diameter: 3.93" (100mm)
Sub-Spindle Maximum Bar Diameter: 1.85" (42mm)
Sub-Spindle Maximum Working Length: 13.18" (335mm)
Sub-Spindle Spindle Nose: A2-5
Sub-Spindle Bore: 1.26" (32 mm)
X1 Axis Travel: 5.90" (150mm)
X2 Axis Travel: 18.5" (470mm)
Y1 Axis Travel: 3.14" (80mm) +/- 1.57" (40mm)
Y2 Axis Travel: 14.96" (380mm)
Z1 Axis Travel: 14.96" (380mm)
Z2 Axis Travel: 11.02" (280mm)
Turret Type: BMT-55 Power Turret
Turret Live Tools: 12 Positions / 5HP / 4,000 RPM
Sub-Spindle Tools: 12 Live Positions / 2 HP / 4,000 RPM
Approximate Dimensions: 110" (2,795mm) x 80.7" (2,051mm) x 85.8" (2,180mm)
Approximate Machine Weight: 13,420 lbs. (6,100kg)
- Fanuc 0i-TF CNC Control
- Chip Conveyor
- 400 PSI High Pressure Coolant
- Bar Feed Interface
- Qicktech Model BL-65 1.2 Meter Bar Loader (2018 / Never Used)
