Overview
Type:
Coil Feed Lines
Manufacturer:
MILLUTENSIL
Model:
SMOC5000, RDSA1180
Year:
2004
Stock #:
4094
Description

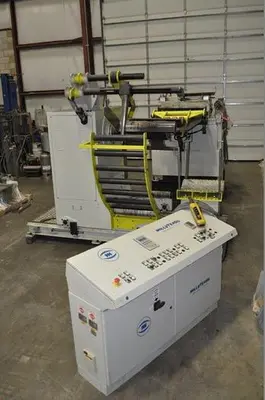

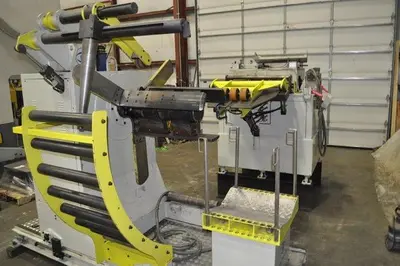

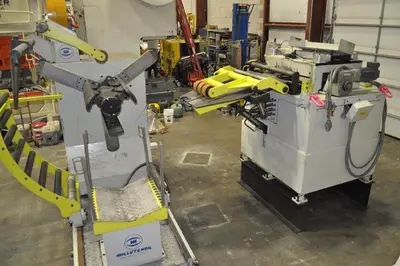

This used 2004 Millutensil feed line, model SMOC 5000/RDSA 1180, is designed to handle coils weighing up to 6,600 lbs with a material width of 31 inches and thickness ranging from .020" to .118". It features a motorized traveling head uncoiler, complete with a coil lift, hold down arm, and hydraulic expansion for ease of operation and enhanced efficiency. The uncoiler can accommodate inner diameters between 16" and 20" and has a maximum outer diameter of 72".

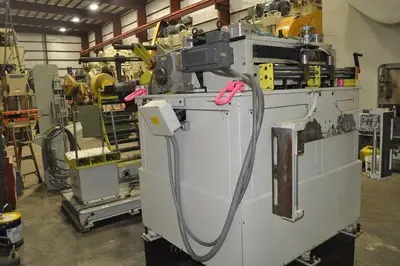

The feed line includes a 7-roll straightener combined with a servo feeder, enhancing the precision and smoothness of the operation. Additional features include entry and exit pinch rolls with air lift capability, a peeler table, and a compact design that maintains functionality while minimizing space requirements. The dimensions of the uncoiler are 124" LR by 76" FB by 104" tall, and the straightener feeder measures 90" LR by 60" FB by 87" tall, with the entire system weighing approximately 18,000 lbs.

Overall, this feed line is in very good condition, making it a reliable addition to your production line with high performance and durability.

Specifications

Conditon: Used
Id range: 16" - 20"
Max od: 72"
Mandrel length: 31"
Maximum material width: 31"
Thickness capacity: .020" - .118"
Uncoiler dimensions: 124" LR X 76" FB X 104" TALL
Straightener feeder dimensions: 90" LR X 60" FB X 87" TALL
Approximate line weight: 18000 LBS
