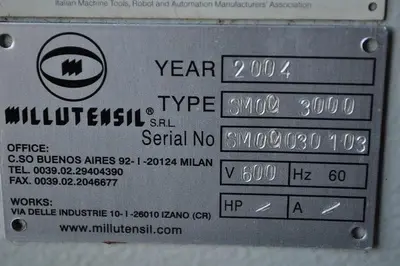

USED 2004 MILLUTENSIL SMOC 3000/RDSA 1180 650

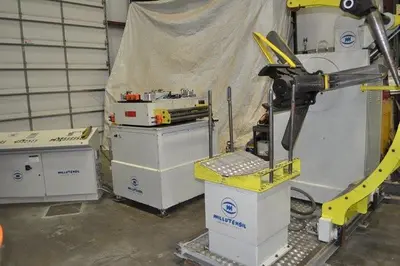

The 2004 Millutensil feed line is a robust and reliable solution for handling coil materials with precision. Designed to accommodate up to 6,600 lbs, it efficiently processes material with a maximum width of 26 inches and thickness capacity ranging from .020 inches to .118 inches. The compact servo feedline combines a motorized traveling head uncoiler and a 7-roll straightener with a servo feeder, ensuring smooth and consistent material handling.

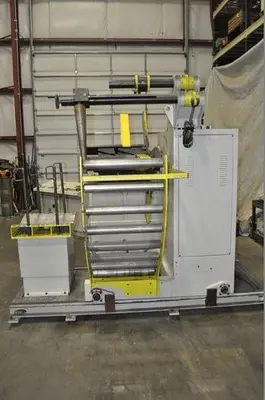

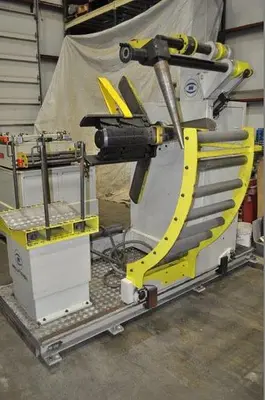

The uncoiler features hydraulic expansion, a coil lift, and a hold-down arm, as well as entry and exit pinch rolls with air lift for optimal control. Additionally, the unit boasts a pilot release mechanism, indicating it’s equipped to handle various materials without compromising performance. The equipment remains in very good condition, reflecting its durability and effective maintenance over time.

With dimensions ensuring a compact setup, the uncoiler measures approximately 112 inches by 70 inches by 105 inches tall, while the straightener feeder is 58 inches by 55 inches by 65 inches tall. The control unit also maintains a manageable size at 63 inches by 23 inches by 50 inches tall, making this Millutensil model a space-efficient choice for industrial applications. The entire unit weighs approximately 15,000 lbs, offering a substantial and stable infrastructure for coil processing tasks.
