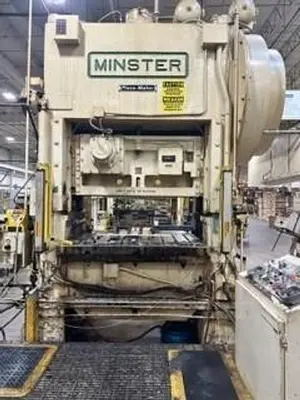

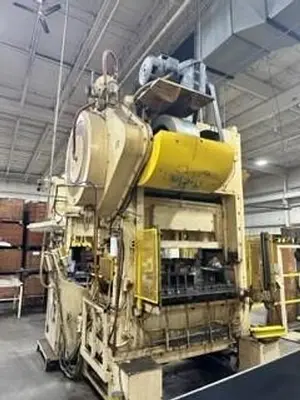

The 1976 Minster P2-150 "Piece Maker" is a used straight side press, known for its durability and precision. With a bolster area of 60" left-to-right and 40" front-to-back, it offers a spacious working surface, supported by a slide area of 60" by 23". Operating at a speed of 60-120 strokes per minute, it features a stroke length of 6 inches and a 4-inch slide adjustment capability, providing flexibility for various applications. The shut height on the bed, SDAU, is 23", making it suitable for a range of material thicknesses.

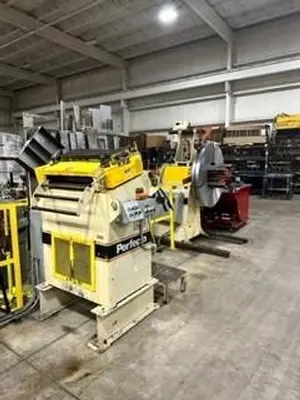

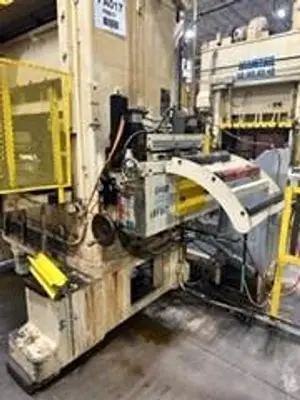

The included Perfecto feeder and straightener enhance its capability, with the straightener model 22-24-T accommodating a stock thickness of up to 0.90" and a maximum stock width of 24". It operates at a speed up to 1200 inches per minute. The Perfecto coil reel, model RS6-18-8, supports a maximum coil weight of 7,000 lbs, with a coil width limit of 18" and a maximum outer diameter of 60". Its inner diameter range is between 20" and 24", ensuring compatibility with a variety of coil sizes.
This machinery package is ideal for industrial applications requiring robust performance and consistent output in metal forming or similar tasks. It embodies reliability from well-established manufacturers, Minster and Perfecto, engineered for rigorous industrial environments.

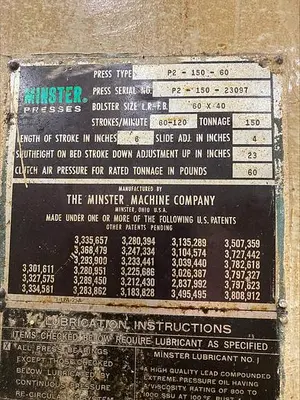

MODEL NUMBER: P2-150-60
SERIAL NUMBER: P2-150-23097
YEAR NEW: 1976
STROKES PER MINUTE: 60-120
LENGTH OF STROKE: 6"
SLIDE ADJUSTMENT: 4"

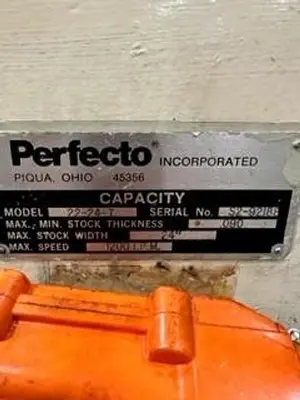

MODEL: 22-24-T
SERIAL: S2-82188
STOCK THICKNESS: .90"
MAX STOCK WIDTH: 24"
MAX SPEED: 1200 IPM

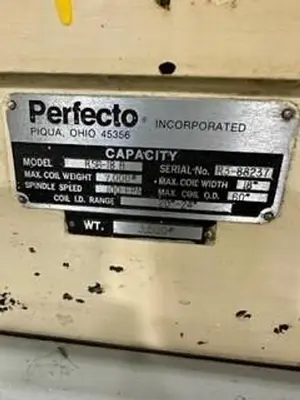

MODEL: RS6-18-8
SERIAL: R3-88237
MAX COIL WEIGHT: 7,000 LBS
MAX COIL WIDTH: 18"
MAX COIL OD: 60"
ID RANGE: 20" - 24"
