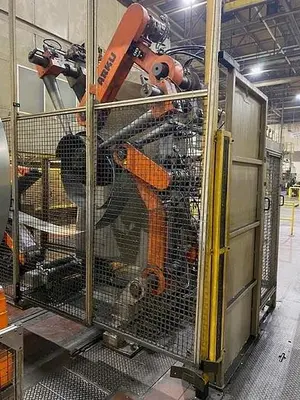

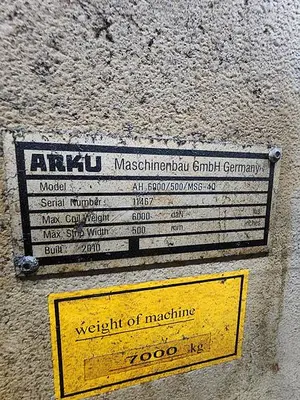

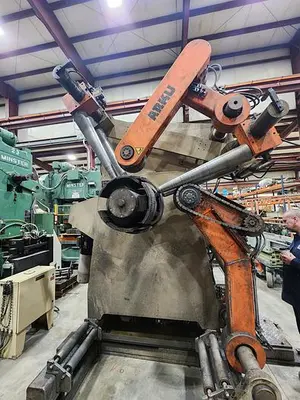

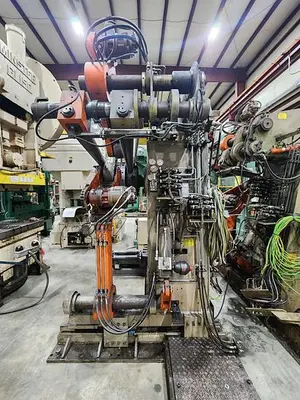

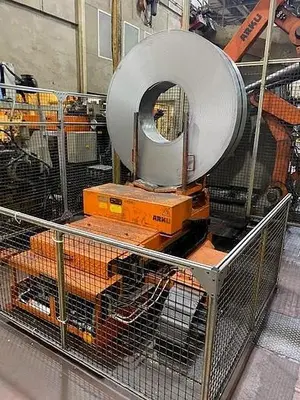

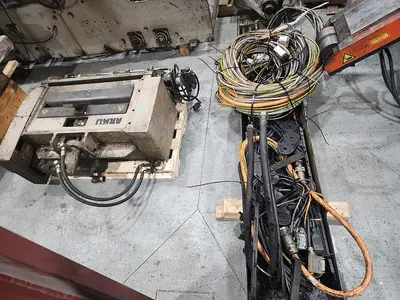

The 2010 ARKU Feed/Straighten "Zigzag" Coil Line is a versatile, used feed line equipment designed for handling coils with a maximum width of 20 inches and a weight capacity of up to 13,200 lbs. The ARKU single-end uncoiler accommodates coil outer diameters ranging from 40" to 71.81" with an expansion range between 18.5" and 24". It comes equipped with hydraulic expansion, automatic re-expansion, front/back coil guides, hydraulic restrictor arms, ultrasound-based strip sensing for loop control, laser measuring for coil diameter, and a roller conveyor for loop guidance.

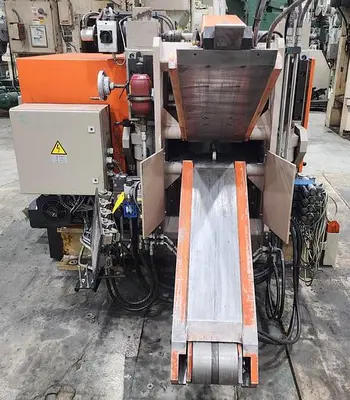

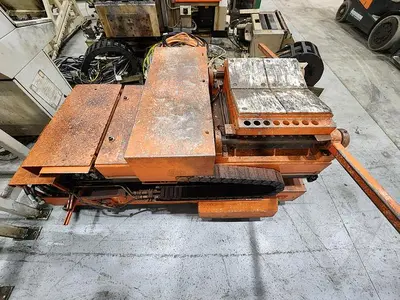

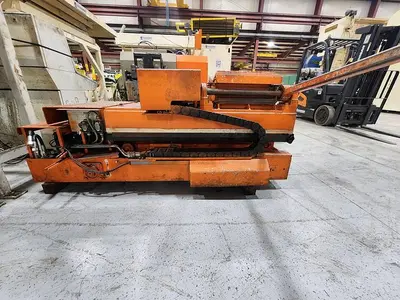

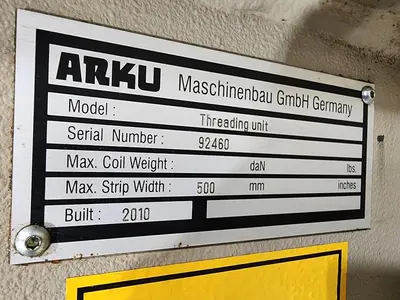

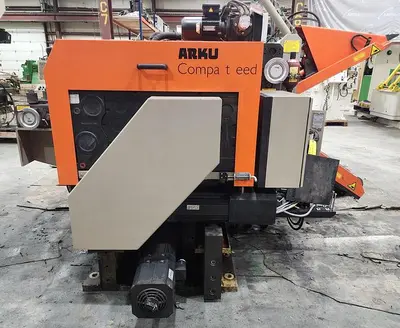

This machine includes an ARKU threading unit and feeder/straightener, which features seven hardened and ground straightening rolls with a diameter of 3.46". The exit pinch rolls measure 6" in diameter, ensuring effective material processing. The zigzag punch offers various patterns and a maximum side stroke of 4.72" from the centerline of the coil. Additionally, the strip-end feeder is electronically driven, with a hydraulically opening upper roll for easy coil handling.
Ideal for operations requiring precision and efficiency, this coil line ensures consistent performance and easy integration into existing workflows. The equipment is sold "as is, where is."
MAXIMUM COIL WIDTH: 20"
LOAD CAPACITY: 13,200 LBS
COIL OD: 40" - 71.81"

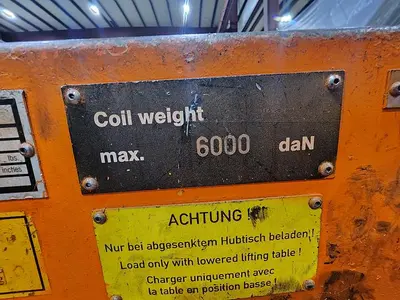

MAXIMUM COIL WEIGHT: 13,200 LBS
DIAMETER OF STRAIGHTENING ROLLS: 3.46"
NUMBER OF STRAIGHTENING ROLLS: 7 (HARDENED & GROUND)
DIAMETER OF FEED ROLLS: 6"
