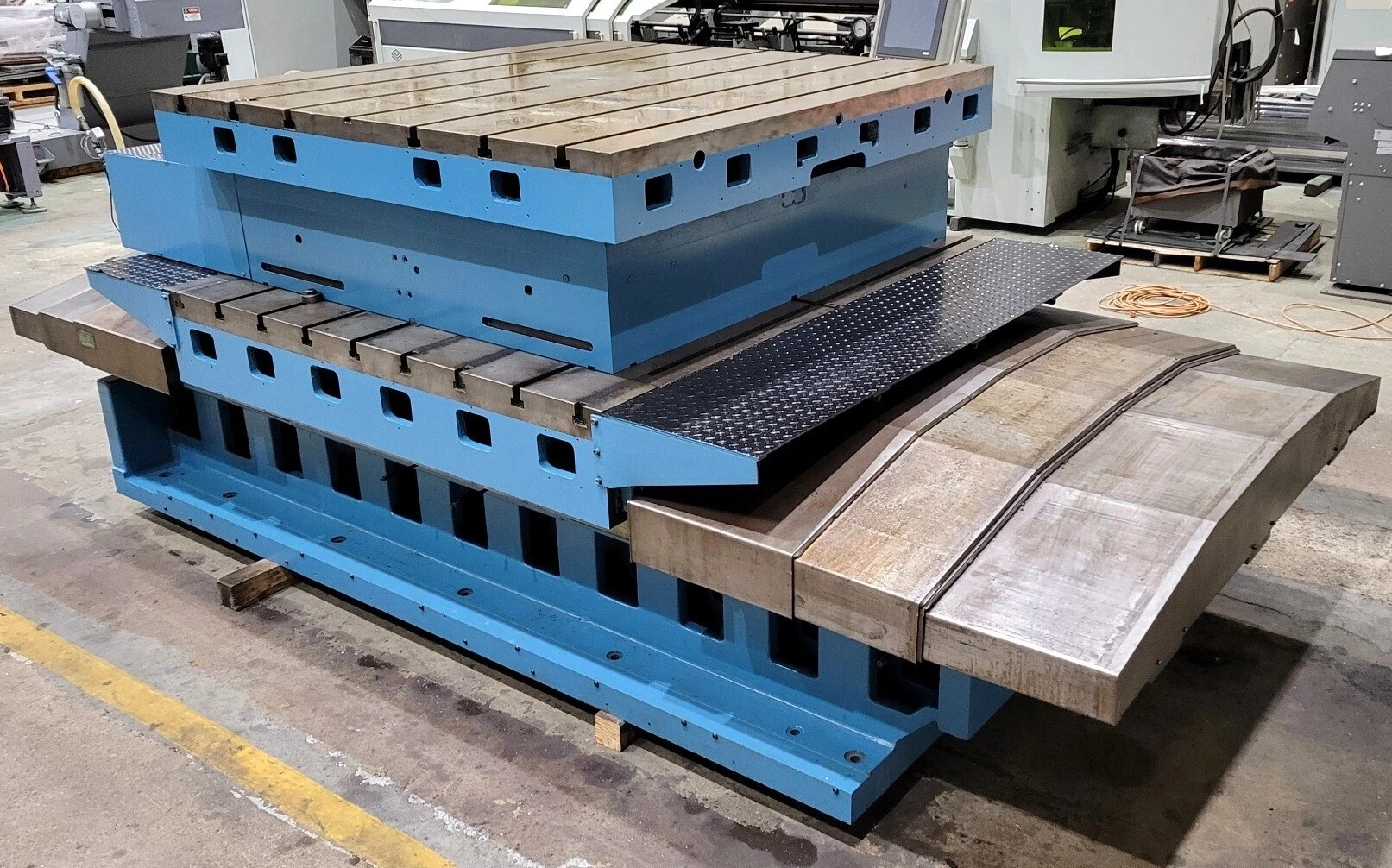

USED 2001 GIDDINGS & LEWIS 360P

Giddings & Lewis Model 360P CNC In-Feeding Rotary Table, Mfg. 2001, 72″ x 72″, 44,000 lb. Capacity, 1 RPM, 360,000 Positions, T-Slotted, with 72″ x 78″ Slide, 70,000 Capacity, 48″ W-Axis Travel, Siemens Servo Motors

Equipped With;
Rotary & Linear Hydrostatic Ways
Positioning Only "B"-Axis
Twin Pinion Drive
Siemens B & W Axes Servo Motors (No Drives)
Way Covers, W-Axis
Automatic Lubrication System
Service Manual and Drawings

Rotary Table Size: 72" x 72"
Rotary Table Capacity: 22 Tons (44,000 lbs.)
Table Speed: 1 RPM
B-Axis Rotation (Positioning Only): 360,000 Positions
T-Slots: (6), 1.125" on 10" Centers
Height of Rotary table: 23"
Approximate Rotary Table Weight: 35,000 lbs.
Auxilliary Slide Platen Size: 72" x 78"
Auxilliary Slide Weight Capacity: 70,000 lbs.
W-Axis Travel: 48"
Traverse Rate: 200 IPM
Feed Rate: 0.1 - 50 IPM
Auxilliary Slide T-Slots: (9), 1.125" on 25.5" Centers
Approximate Weight of Auxilliary Slide: 30,000 lbs.
Total Height of Rotary Table and Auxilliary Slide: 48.5"

- The Rotary Table and Inferring Slide are Separate Units and Can Be Used Independently
