Overview
Type:
O.B.I. Presses
Manufacturer:
AIDA
Model:
NC1-1500(HD)
Stock #:
5732
Description

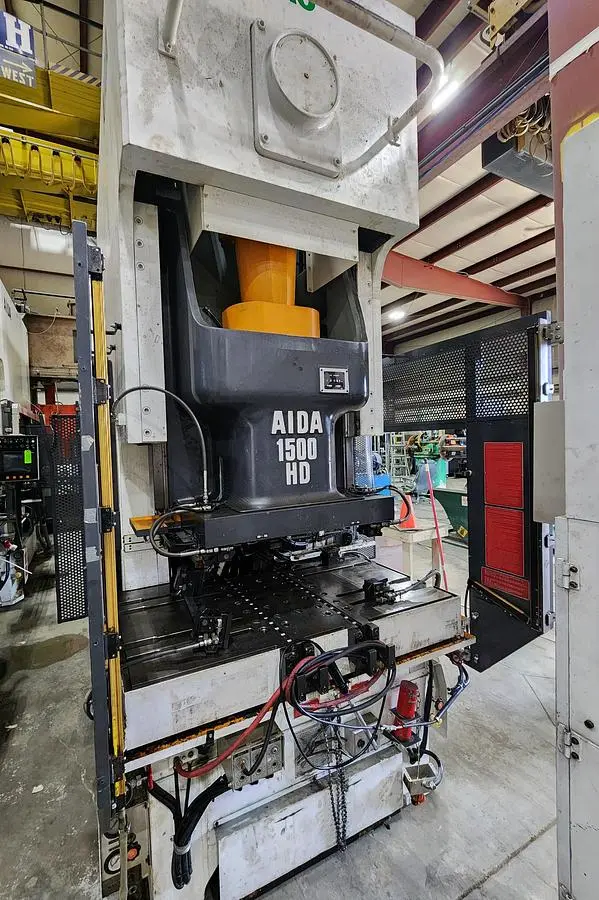

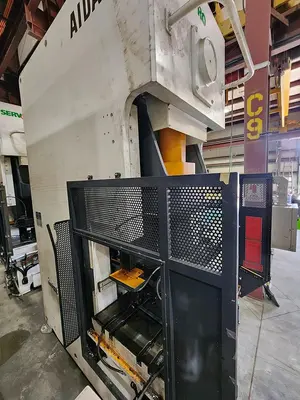

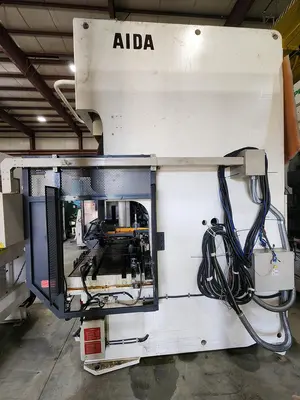

The 165-ton Aida NC1-1500 (HD) Servo Press is a reliable and efficient machine, ideal for various industrial applications. This used model, serial number 10420-6087, offers a significant pressing capacity of 165 tons. It features a stroke length of 9.84 inches with a maximum of 50 strokes per minute at full stroke, ensuring a blend of power and speed for high-demand tasks.

Precision is a key highlight of this servo press, featuring a slide adjustment of 4.33 inches and a die height of 17.7 inches. The slide area measures 36.6 inches left-to-right by 25.6 inches front-to-back, providing ample space for operations. The bed area is expansive as well, measuring 57.9 inches by 33.1 inches, accommodating larger workpieces with ease.

Equipped with a hydraulic quick die change system, this press enhances productivity by reducing downtime during die exchanges. The machine handles an air pressure of 73 PSI and supports a maximum upper die weight of 2205 lbs, catering to heavy-duty stamping requirements. This Aida NC1-1500 (HD) model, with its substantial features and specifications, stands as a valuable tool for manufacturing industries seeking durability and precision.

Specifications

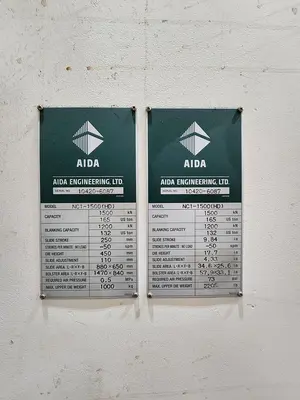

MODEL NUMBER: NC1-1500 (HD)
SERIAL NUMBER: 10420-6087
CAPACITY: 165 TONS
LENGTH OF STROKE: 9.84"
STROKES PER MINUTE: 50 @ FULL STROKE
DIE HEIGHT: 17.7"

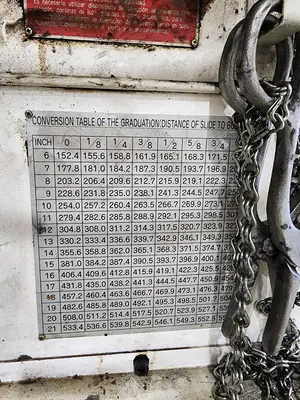

SLIDE ADJUSTMENT: 4.33"
SLIDE AREA: 36.6" LR x 25.6" FB
BED AREA: 57.9" LR x 33.1" FB
AIR PRESSURE: 73 PSI
MAX UPPER DIE WEIGHT: 2205 LBS
QUICK DIE CHANGE: HYDRAULIC
CUSHION: YES
