Overview
Type:
O.B.I. Presses
Manufacturer:
AIDA
Model:
NC1-1500(HD)
Stock #:
5733
Description

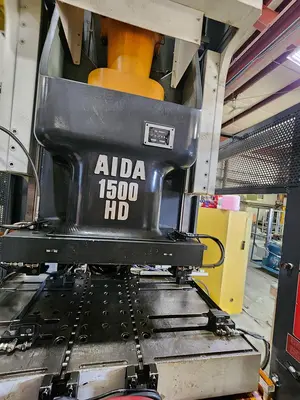

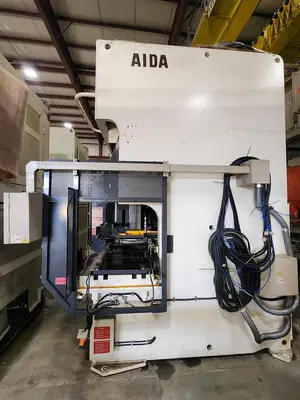

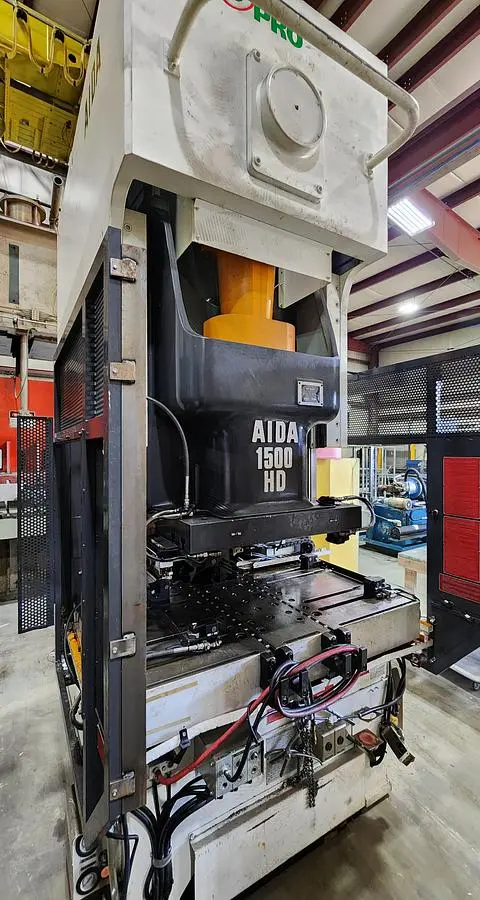

The 165 Ton Aida NC1-1500 (HD) Servo Press is a robust and reliable piece of machinery designed for high precision tasks. With a capacity of 165 tons, it operates with a stroke length of 9.84 inches, performing up to 50 strokes per minute at full capacity. This model features a die height of 17.7 inches and a slide adjustment of 4.33 inches, offering flexibility for various press operations.

The slide area measures 36.6 inches left to right by 25.6 inches front to back, while the bed area is spacious at 57.9 inches left to right by 33.1 inches front to back. It is equipped with a hydraulic quick die change system, enhancing efficiency by reducing downtime between operations. The maximum weight for the upper die is set at 2205 pounds, providing ample support for heavy-duty applications.

This press operates at an air pressure of 73 PSI, ensuring stable and consistent performance. It is a solid choice for manufacturers looking to maintain high productivity and precision in their operations.

Specifications

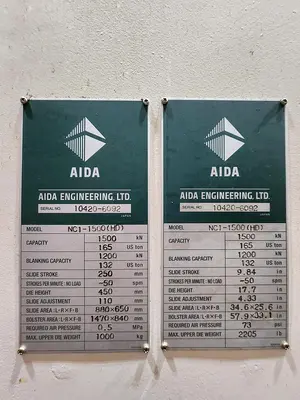

MODEL NUMBER: NC1-1500 (HD)
SERIAL NUMBER: 10420-6092
CAPACITY: 165 TONS
LENGTH OF STROKE: 9.84"
STROKES PER MINUTE: 50 @ FULL STROKE
DIE HEIGHT: 17.7"
SLIDE ADJUSTMENT: 4.33"
SLIDE AREA: 36.6" LR x 25.6" FB
BED AREA: 57.9" LR x 33.1" FB
AIR PRESSURE: 73 PSI
MAX UPPER DIE WEIGHT: 2205 LBS
QUICK DIE CHANGE: HYDRAULIC
CUSHION: YES
