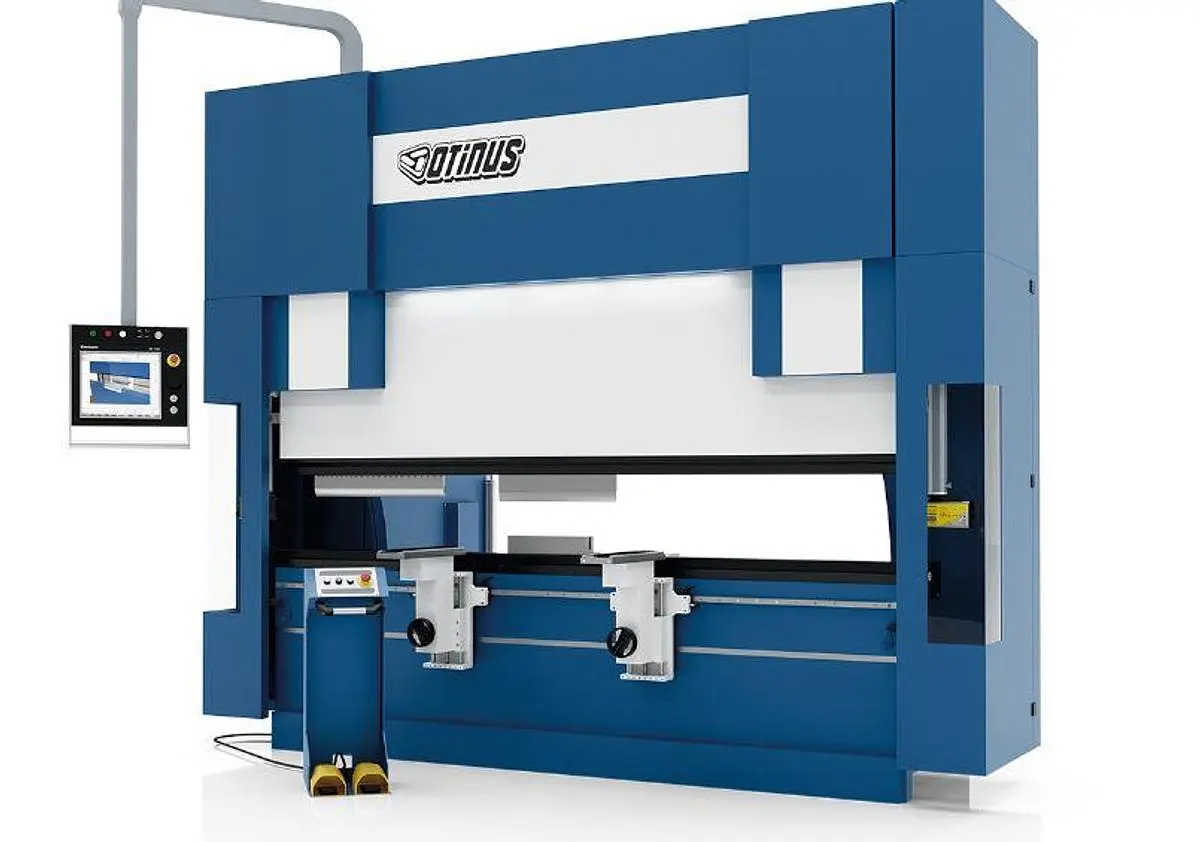

The OTINUS PRO Hydraulic Press Brake, model PBO-2106-PRO, offers a robust 66-ton capacity for precise sheet metal bending. With a motor output of 5.5 kW and a 37-gallon oil tank, this new equipment ensures effective and reliable performance. The press brake features an approach speed of 150 mm/s, a working speed of 10 mm/s, and a return speed of 130 mm/s, supporting a maximum working length of 83 inches and inside frame width of 63 inches.
Designed for flexibility and stability, it includes a 19-inch daylight opening, an 8-inch stroke, and a 16-inch throat gap, ideal for handling larger pieces. The distance between side frames is 6 feet, with each side frame measuring 62 inches, and a bed height of 35 inches. Weighing around 11,907 pounds, the press brake is suitable for heavy-duty industrial applications.
Equipped with a Delem DA-66T controller, the system controls 8 axes automatically, stores up to 500 programs, and features a 17" TFT touch screen. It supports 2D and 3D programming modes, enables program creation on a PC, and includes crowning control. Integrated controls and sensors ensure collision prevention, making it a comprehensive solution for efficient metal forming operations.
TONNAGE: 66 TON
MOTOR OUTPUT: 5.5 kW
OIL TANK VOLUME: 37 GAL
APPROACH SPEED: 150 MM/S
WORKING SPEED: 10 MM/S
RETURN SPEED: 130 MM/S
APPROX WEIGHT: 11907
INSIDE FRAMES: 63"
MAX WORKING LENGTH: 83"
DISTANCE BETWEEN SIDE FRAMES: 6'
SIDE FRAME WIDTH: 62"
BED HEIGHT: 35"
DAYLIGHT OPENING: 19"
STROKE: 8"
TABLE WIDTH: 2"
THROAT GAP: 16"
