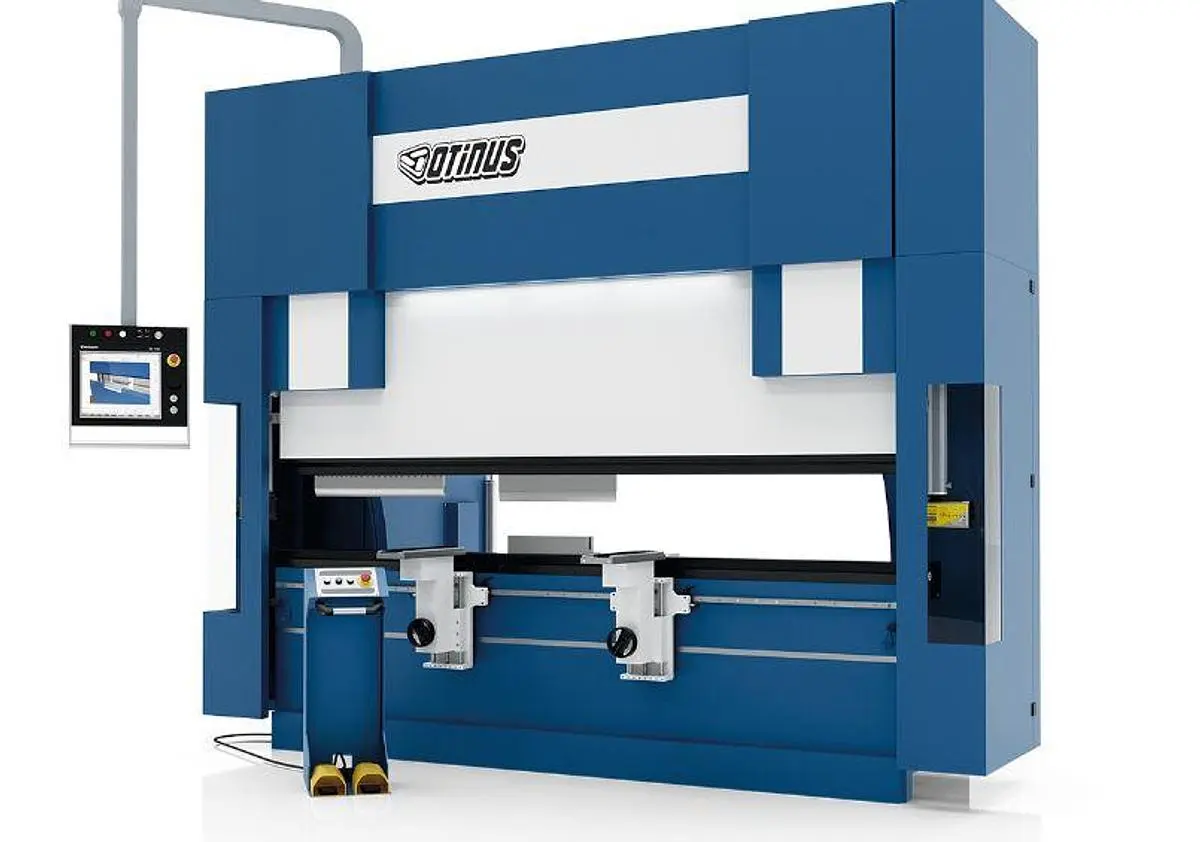

The OTINUS PRO Hydraulic Press Brake PBO-3109-PRO is a robust and efficient machine ideal for precision bending tasks. It boasts a Delem DA-66T controller for automatic 8-axis control, ensuring superior accuracy and efficiency. This system allows storage of up to 500 programs, each with 25 steps and 99 repetitions, and can save up to 30 sets of upper and lower dies. The machine offers a 17" TFT touch screen, 2D/3D programming capability, and Windows-based controller software, enabling easy program creation on a PC.
This 99-ton press brake features a motor output of 7.5 kW and an oil tank capacity of 37 gallons. It operates with an approach speed of 160 mm/s, a working speed of 10 mm/s, and a return speed of 130 mm/s. With an approximate weight of 17,420 lbs, the machine is designed to handle substantial workloads. The maximum working length is 122", with inside frames measuring 100" and a distance of 9' between side frames. Additional specifications include a side frame width of 63", bed height of 35", daylight opening of 21", stroke of 10", table width of 2", and a throat gap of 16".
The OTINUS PRO model is equipped with features to prevent collisions along individual axes, ensuring safety and durability. It includes crowning control and provides space for connecting a bending angle sensor. The device also supports USB connectivity for additional devices and is powered by TCPDF for added flexibility and functionality in digital operations. This high-performance press brake is well-suited for demanding industrial applications.
TONNAGE: 99 TON
MOTOR OUTPUT: 7.5 kW
OIL TANK VOLUME: 37 GAL
APPROACH SPEED: 160 MM/S
WORKING SPEED: 10 MM/S
RETURN SPEED: 130 MM/S
APPROX WEIGHT: 17420
INSIDE FRAMES: 100"
MAX WORKING LENGTH: 122"
DISTANCE BETWEEN SIDE FRAMES: 9'
SIDE FRAME WIDTH: 63"
BED HEIGHT: 35"
DAYLIGHT OPENING: 21"
STROKE: 10"
TABLE WIDTH: 2"
THROAT GAP: 16"
