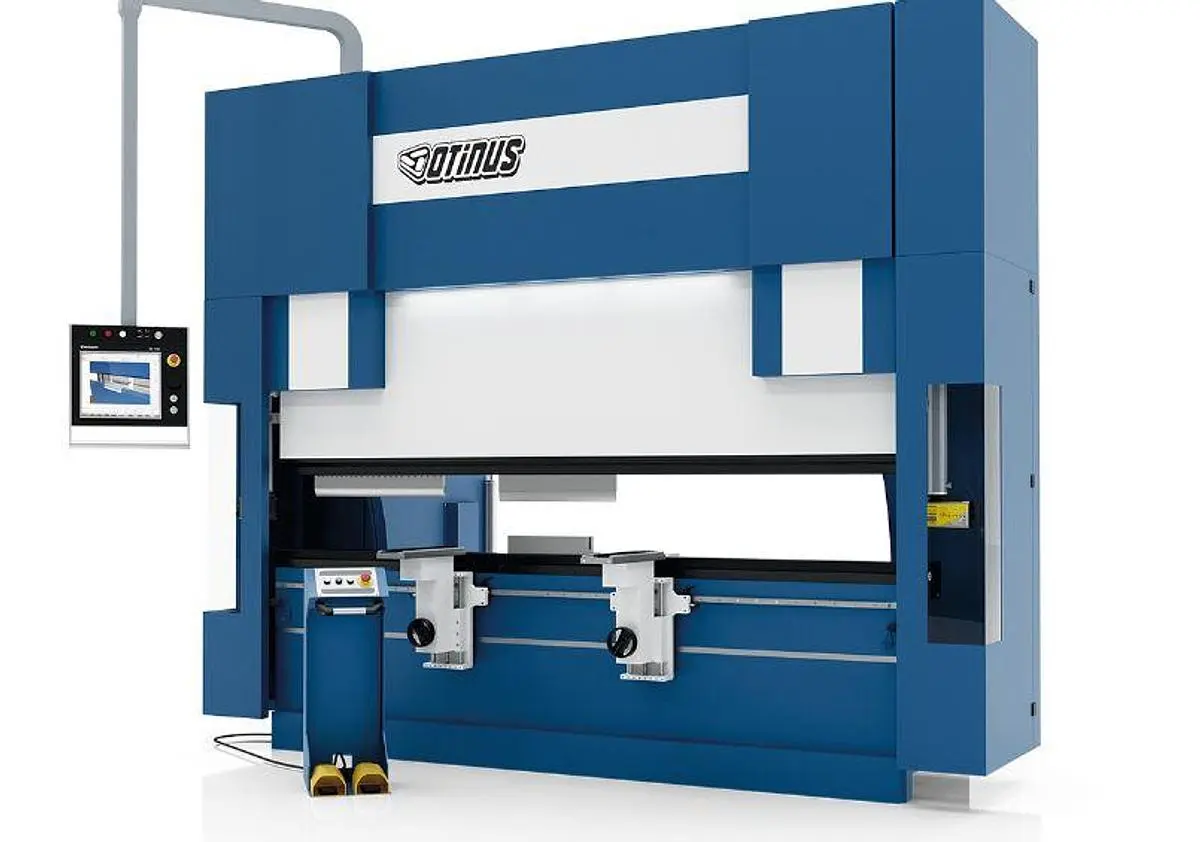

The OTINUS PRO Hydraulic Press Brake, model PBO-4116-PRO, is a robust and efficient system, offering a 176-ton bending capacity over a maximum working length of 162 inches. Equipped with a Delem DA-66T controller, this machine facilitates the automatic control of 8 axes, enhancing its precision and efficiency. It supports advanced programming capabilities with the option to store up to 500 programs, each having 25 steps and 99 repetitions, along with the storage of 30 upper and lower dies. The 17-inch TFT touch screen provides a user-friendly interface with 2D/3D programming modes and Windows-compatible software for creating programs on a PC.
This press brake boasts an impressive motor output of 15.0 kW and is capable of operating at speeds of up to 170 mm/s during approach, 10 mm/s of working speed, and 120 mm/s return speed. Constructed to ensure safety and reliability, it includes various controls and sensors to prevent collisions along individual axes. Additionally, the machine features a crowning control, further enhancing its performance during complex bending operations, and offers connectivity options via USB and space for a bending angle sensor.
Designed to meet the demands of high-precision work, the OTINUS PRO offers an oil tank volume of 56 gallons, a daylight opening of 21 inches, and a throat gap of 16 inches. With an approximate weight of 26,460 lbs and a distance between side frames of 12 feet, this press brake provides substantial working area stability and efficiency for industrial applications.
TONNAGE: 176 TON
MOTOR OUTPUT: 15.0 kW
OIL TANK VOLUME: 56 GAL
APPROACH SPEED: 170 MM/S
WORKING SPEED: 10 MM/S
RETURN SPEED: 120 MM/S
APPROX WEIGHT: 26460
INSIDE FRAMES: 140"
MAX WORKING LENGTH: 162"
DISTANCE BETWEEN SIDE FRAMES: 12'
SIDE FRAME WIDTH: 63"
BED HEIGHT: 35"
DAYLIGHT OPENING: 21"
STROKE: 10"
TABLE WIDTH: 2"
THROAT GAP: 16"
