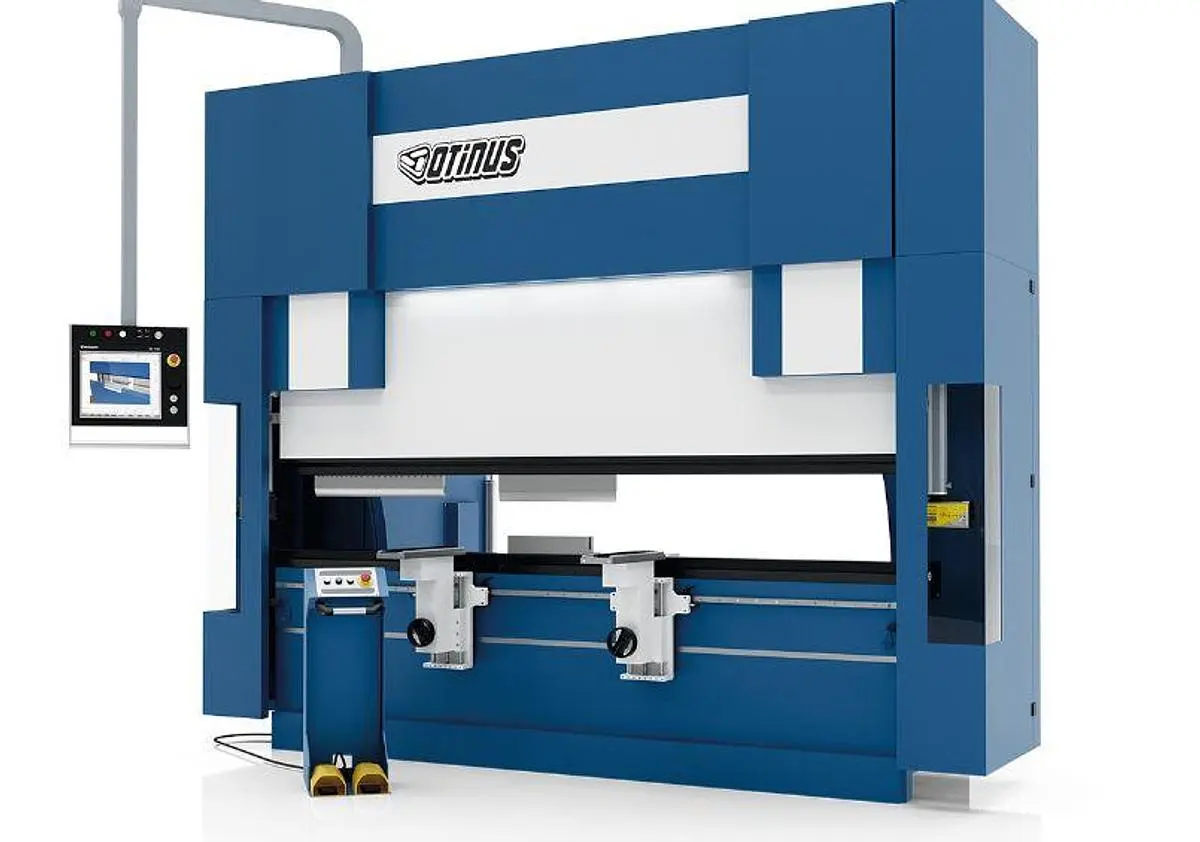

NEW OTINUS PBO-2609-PRO

The OTINUS PRO Hydraulic Press Brake model PBO-2609-PRO is a robust, new machine, ideal for precise bending tasks. It features a powerful 99-ton capacity and a maximum working length of 102 inches. The machine is equipped with a sophisticated Delem DA-66T controller, which manages 8 axes automatically for efficient bending, and supports 500 programs with 25 steps each.

With a 17-inch TFT touchscreen, the controller offers both 2D and 3D programming modes, and anticipates future demands with its capacity for storing up to 30 different dies. The integration with Windows software allows program creation on a personal computer, enhancing usability. In addition, this press brake includes USB connectivity and provisions for a bending angle sensor, enhancing its adaptability to various tasks.

The OTINUS PRO boasts practical specifications such as a 7.5 kW motor output, an oil tank volume of 37 gallons, and multiple speed settings, including a working speed of 10 mm/s. Its design ensures user safety and precision with controls that prevent collisions along axes. With dimensions such as a daylight opening of 21 inches and a stroke of 10 inches, this machine promises to meet diverse industrial needs efficiently.

TONNAGE: 99 TON
MOTOR OUTPUT: 7.5 kW
OIL TANK VOLUME: 37 GAL
APPROACH SPEED: 150 MM/S
WORKING SPEED: 10 MM/S
RETURN SPEED: 130 MM/S
APPROX WEIGHT: 15656
INSIDE FRAMES: 81"
MAX WORKING LENGTH: 102"
DISTANCE BETWEEN SIDE FRAMES: 7'
SIDE FRAME WIDTH: 62"
BED HEIGHT: 35"
DAYLIGHT OPENING: 21"
STROKE: 10"
TABLE WIDTH: 2"
THROAT GAP: 16"
