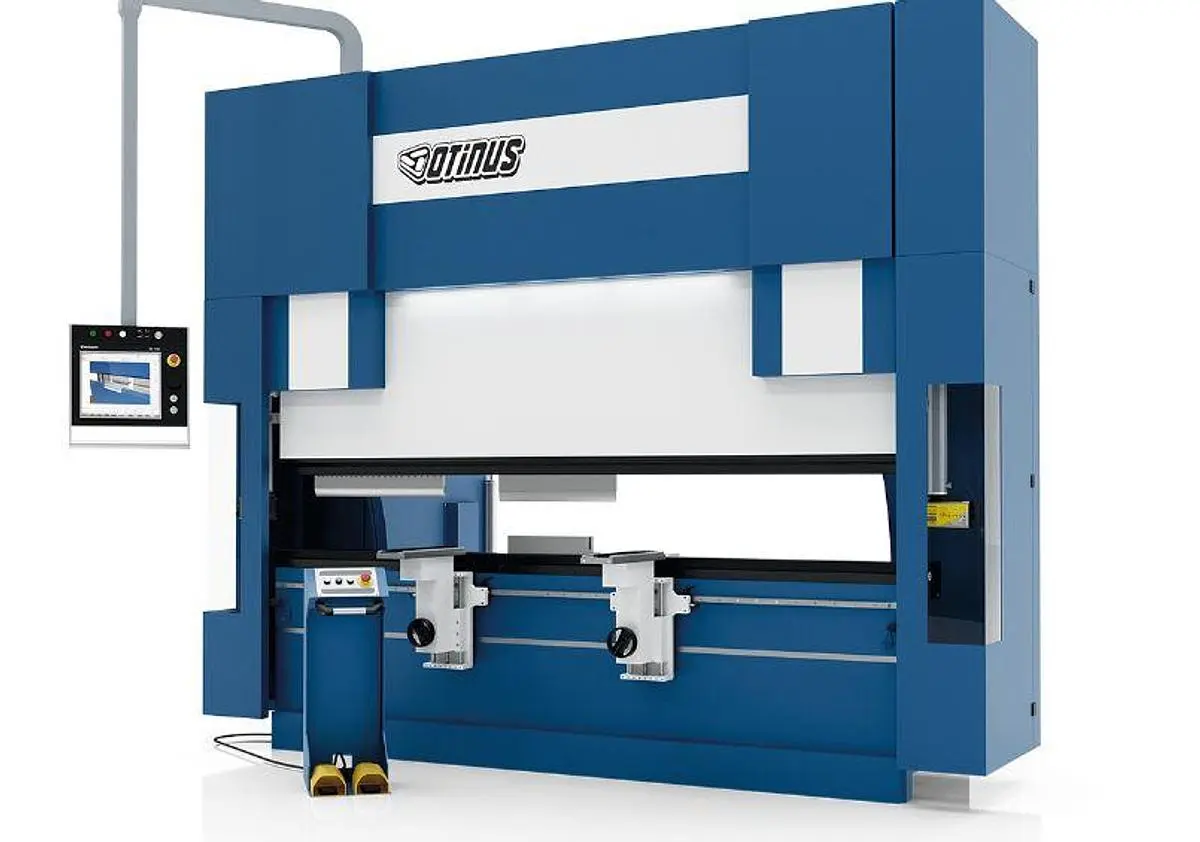

NEW OTINUS PBO-3120-PRO

The OTINUS PRO PBO-3120-PRO Hydraulic Press Brake is designed to deliver exceptional precision and efficiency. With a remarkable 220-ton capacity and a 122-inch maximum working length, this machine is equipped to handle demanding jobs. The advanced Delem DA-66T controller features automatic control of 8 axes, enhancing bending capabilities and improving productivity. Programs can be stored with up to 500 different sequences, each allowing for 25 steps and 99 repetitions. This press brake supports advanced operations with a 17-inch TFT touch screen, 2D/3D programming modes, and the ability to create programs on a PC.

This press brake includes crowning control managed via the controller, ensuring accurate bends every time. The system offers significant customization with storage space for 30 upper and lower dies and includes an option for connecting a bending angle sensor. Additionally, the USB port allows for easy connection to other devices, providing flexibility in operation. Safety features are robust, with controls and sensors designed to prevent collisions, making it both efficient and safe to use.

Powerful and efficient, it runs on a 19.0 kW motor and holds a 56-gallon oil tank. Speeds are optimized for various operations: approach speed at 150 mm/s, working speed at 10 mm/s, and return speed at 130 mm/s. Structurally robust with a machine weight of approximately 22,050 lbs, the press brake features an inside frame width of 100 inches, bed height of 35 inches, and a throat gap of 16 inches. Designed for versatility and precision, it is an excellent choice for industrial operations requiring reliable performance.

TONNAGE: 220 TON
MOTOR OUTPUT: 19.0 kW
OIL TANK VOLUME: 56 GAL
APPROACH SPEED: 150 MM/S
WORKING SPEED: 10 MM/S
RETURN SPEED: 130 MM/S
APPROX WEIGHT: 22050
INSIDE FRAMES: 100"
MAX WORKING LENGTH: 122"
DISTANCE BETWEEN SIDE FRAMES: 9'
SIDE FRAME WIDTH: 63"
BED HEIGHT: 35"
DAYLIGHT OPENING: 21"
STROKE: 10"
TABLE WIDTH: 4"
THROAT GAP: 16"
