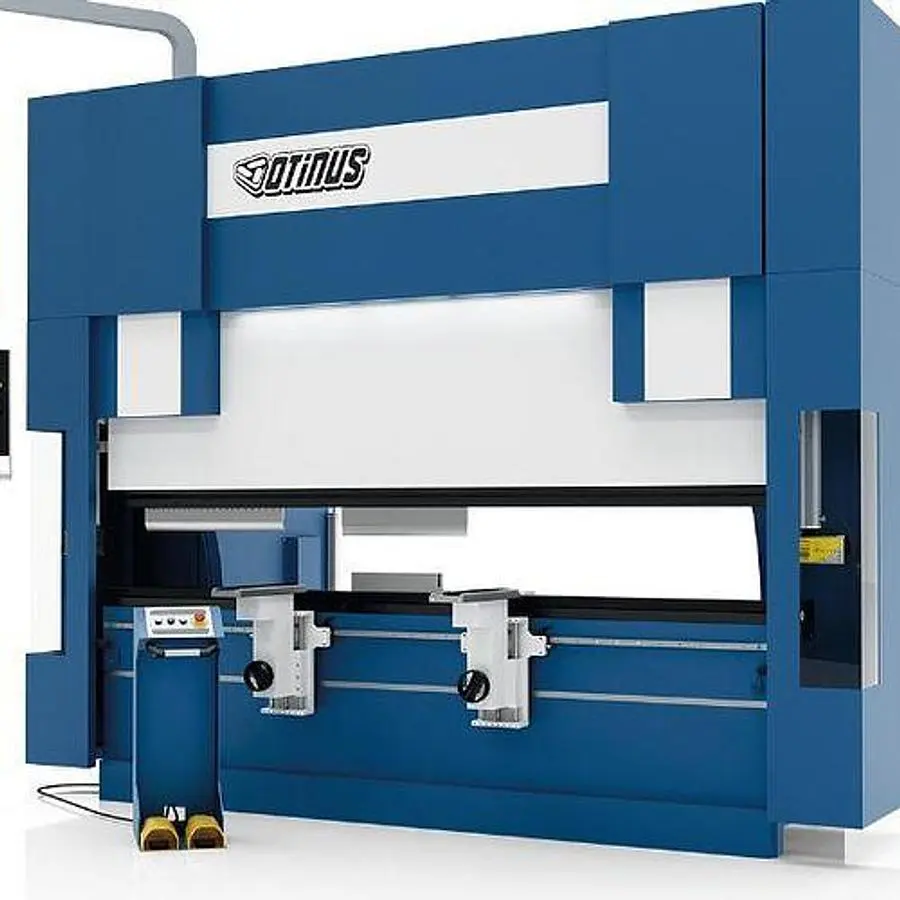

The OTINUS PRO Hydraulic Press Brake PBO-3722-DA66 offers advanced features and robust performance for precise bending applications. Equipped with the Delem DA-66T controller, it provides automatic control over 8 axes, enhancing efficiency and precision in bending operations. The controller's capacity to store up to 500 programs, with 25 steps each, allows for versatile operation and ease of use. The machine also supports the saving of up to 30 upper and lower dies, and features a 17" TFT touch screen with 2D/3D programming modes for intuitive control.
Support for USB connectivity and a bending angle sensor interface enhance the press brake's functionality, ensuring adaptability to various bending tasks. Its crowning control is managed through the controller, further refining the bending process. Safety is a priority, with integrated controls and sensors to prevent axis collisions.
With a bending capacity of 2150 kN and a maximum working length of 145", the OTINUS PRO is designed to tackle challenging bending tasks. It features a throat depth of 16", a maximum ram stroke of 12", and a daylight opening of 18". The press brake operates with a nominal motor power of 15.0 kW, and its dimensions are 18' L x 8' W x 10' T, weighing 26,350 lbs. It provides reliable performance and efficiency, making it an ideal choice for industrial applications.
BENDING CAPACITY: 2150 kN
MAX WORKING LENGTH: 145"
THROAT DEPTH: 16"
MAX RAM STROKE: 12"
DAYLIGHT: 18"
DISTANCE BETWEEN SIDE FRAMES: 11'
BACKGAUGE RETRACT DISTANCE: 29"
NOMINAL MOTOR POWER: 15.0 kW
DIMENSIONS: 18' L x 8' W x 10' T
WEIGHT: 26350
