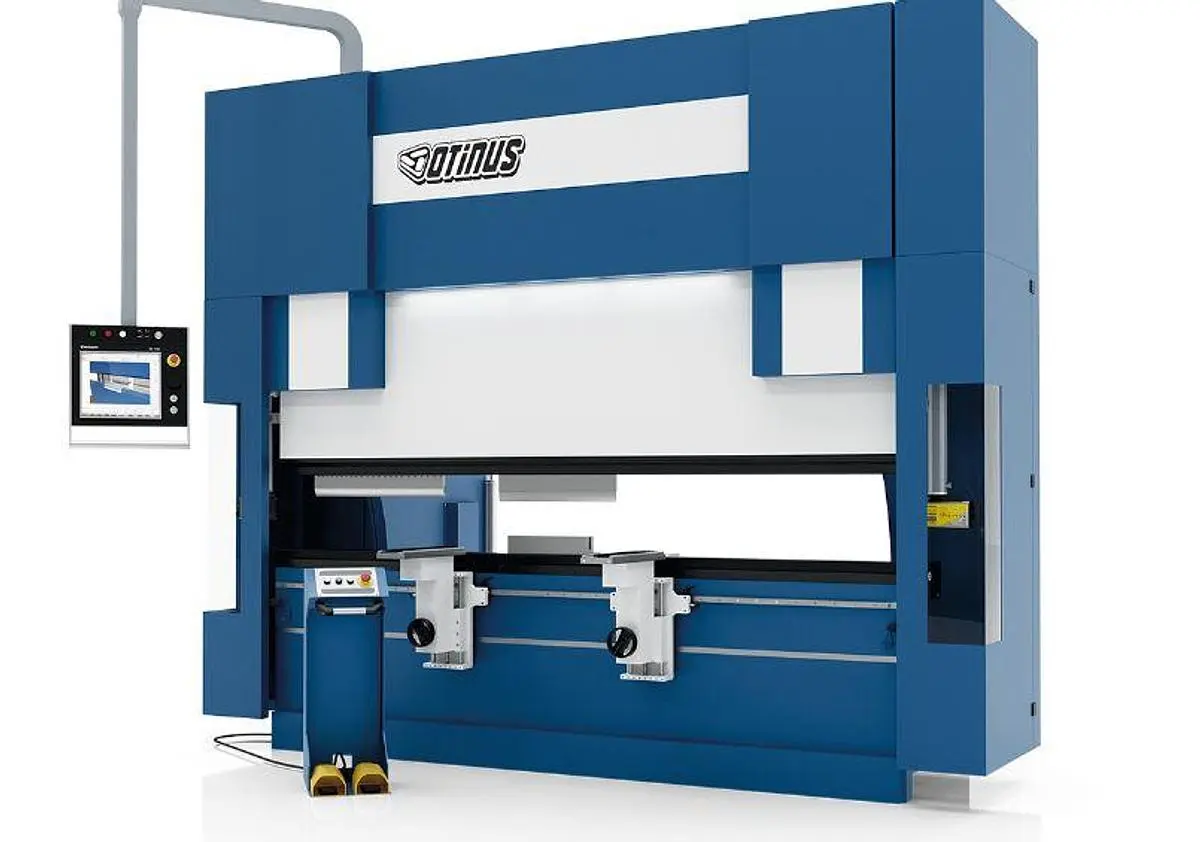

The OTINUS PRO hydraulic press brake model PBO-3112-PRO offers robust functionality with its 132-ton capacity and a maximum working length of 122 inches. Equipped with the advanced Delem DA-66T controller, this press brake supports automatic control of 8 axes, enhancing bending efficiency. Users can store up to 500 programs, each with 25 steps and 99 repetitions, allowing for significant workflow optimization. The system accommodates 30 upper and lower dies, providing flexibility in operations.
Featuring a 17-inch TFT touch screen, the controller offers 2D/3D programming and integrates with Windows-based software, enabling program creation on a PC. The innovative crowning control, along with sensors to prevent collisions, ensures precision and safety. Additional connectivity options include USB support for device integration and the possibility of connecting a bending angle sensor.
The press brake's specifications include an 11.0 kW motor output, a 37-gallon oil tank, approach speed of 160 mm/s, working speed of 10 mm/s, and return speed of 130 mm/s. It features a 9-foot distance between side frames, a 21-inch daylight opening, a 10-inch stroke, and a 16-inch throat gap. With a weight of approximately 18,522 pounds, this equipment is designed for industrial settings demanding reliability and accuracy.
TONNAGE: 132 TON
MOTOR OUTPUT: 11.0 kW
OIL TANK VOLUME: 37 GAL
APPROACH SPEED: 160 MM/S
WORKING SPEED: 10 MM/S
RETURN SPEED: 130 MM/S
APPROX WEIGHT: 18522
INSIDE FRAMES: 100"
MAX WORKING LENGTH: 122"
DISTANCE BETWEEN SIDE FRAMES: 9'
SIDE FRAME WIDTH: 63"
BED HEIGHT: 35"
DAYLIGHT OPENING: 21"
STROKE: 10"
TABLE WIDTH: 2"
THROAT GAP: 16"
