Overview
Type:
Press Brakes
Manufacturer:
OTINUS
Model:
PBO-3112-CNC DELEM DA-66T
Stock #:
6175
Description

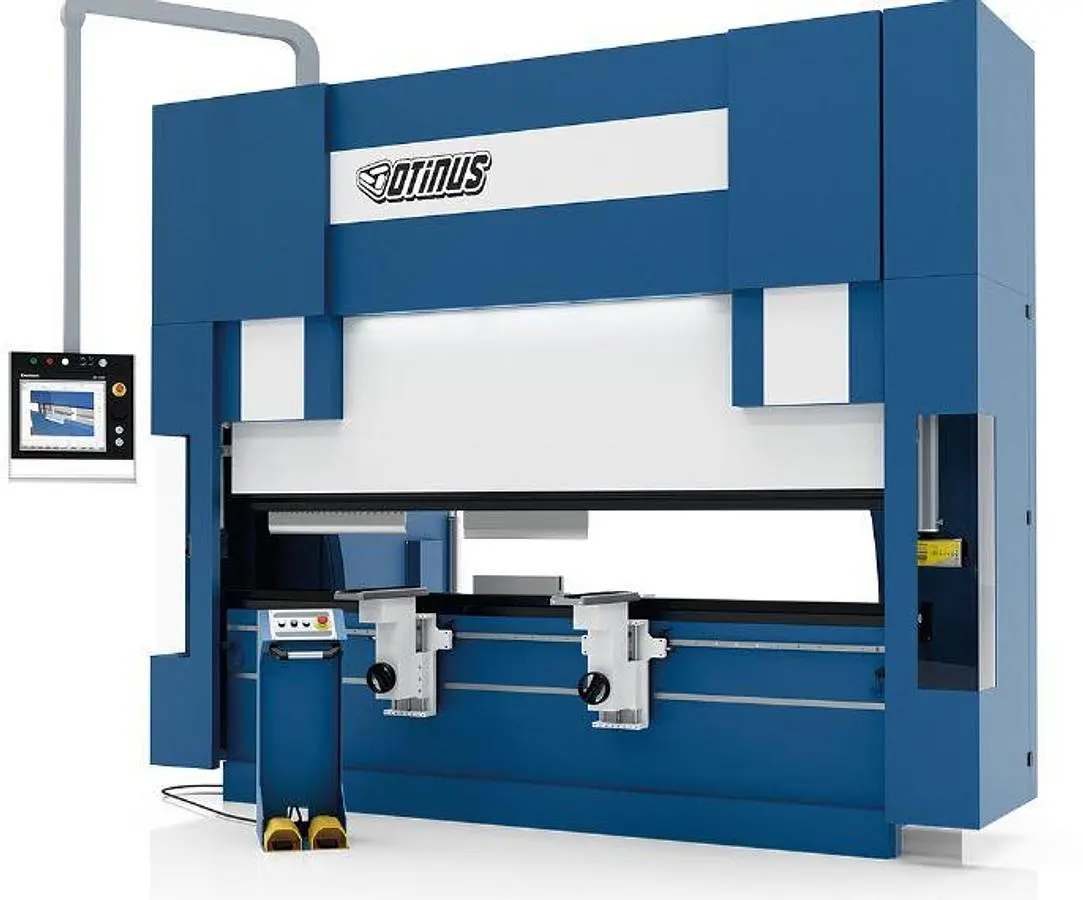

The OTINUS Hydraulic Press Brake PBO-3112-CNC DELEM DA-66T offers advanced technology and precise bending capabilities. Equipped with a Delem DA-66T controller, this machine efficiently manages automatic control over 8 axes, enhancing its bending operations. It allows users to store up to 500 programs, each consisting of 25 steps with a possibility of 99 repetitions. The controller supports both 2D and 3D programming modes and features a 17" TFT touch screen for ease of use.

With a bending capacity of 1200 kN and a maximum working length of 122 inches, this press brake is designed to handle demanding fabrication tasks. It includes a throat depth of 16 inches and a maximum ram stroke of 12 inches, providing flexibility in bending various sizes of materials. The machine also supports a daylight of 18 inches and a distance of 9 feet between side frames, allowing for a significant range of material sizes.

The OTINUS press brake includes additional features like a crowning control managed through the controller, USB connectivity for additional devices, and options for integrating a bending angle sensor. Safeguards prevent collisions along individual axes, ensuring safety during operation. With dimensions of 16 feet in length, 8 feet in width, and 10 feet in height, and a weight of 19,514 pounds, this unit is substantial in its build, powered by an 11.0 kW motor, and offers a return speed of 210 mm/s.

Specifications

BENDING CAPACITY: 1200 kN
MAX WORKING LENGTH: 122"
THROAT DEPTH: 16"
MAX RAM STROKE: 12"
DAYLIGHT: 18"
DISTANCE BETWEEN SIDE FRAMES: 9'
BACKGAUGE RETRACT DISTANCE: 29"
NOMINAL MOTOR POWER: 11.0 kW
RETURN SPEED: 210 MM/S
DIMENSIONS: 16' L x 8' W x 10' T
WEIGHT: 19514
