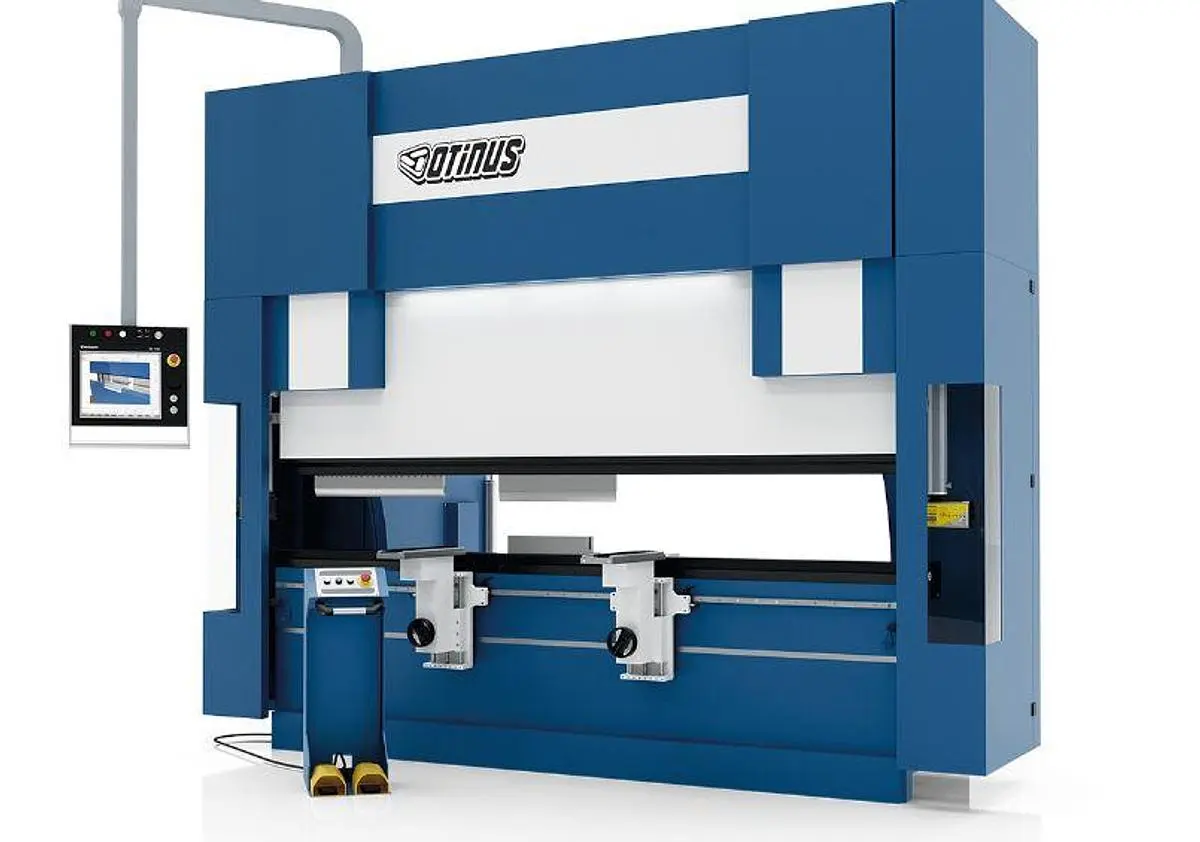

The OTINUS PRO PBO-3124-PRO is a powerful hydraulic press brake offering a robust 264-ton capacity. It features the advanced Delem DA-66T controller for automatic control of 8 axes, significantly enhancing bending efficiency. Its controller can store up to 500 programs, each consisting of 25 steps with 99 repetitions, and saves up to 30 different die configurations. The 17-inch TFT touch screen, along with 2D/3D programming modes, streamlines operation, while the Windows-based software allows program creation directly on a PC.
This press brake excels with its sophisticated control and safety features. The crowning control and available connections for a bending angle sensor, along with sensors to prevent collision along individual axes, ensure precision and safety. It offers excellent speeds with an approach speed of 130 mm/s and a return speed of 120 mm/s, while the working speed is maintained at 10 mm/s.
With a motor output of 22.0 kW and a 56-gallon oil tank, this model is designed for efficiency and durability. The press brake accommodates a maximum working length of 122 inches and provides 100 inches of space inside the frames, ensuring ample working area. The machine's structure includes a 9-foot distance between side frames and a 21-inch daylight opening, allowing versatility in handling various materials and applications.
TONNAGE: 264 TON
MOTOR OUTPUT: 22.0 kW
OIL TANK VOLUME: 56 GAL
APPROACH SPEED: 130 MM/S
WORKING SPEED: 10 MM/S
RETURN SPEED: 120 MM/S
APPROX WEIGHT: 24255
INSIDE FRAMES: 100"
MAX WORKING LENGTH: 122"
DISTANCE BETWEEN SIDE FRAMES: 9'
SIDE FRAME WIDTH: 63"
BED HEIGHT: 35"
DAYLIGHT OPENING: 21"
STROKE: 10"
TABLE WIDTH: 4"
THROAT GAP: 16"
