Overview
Type:
Press Brakes
Manufacturer:
OTINUS
Model:
PBO-4124-CNC DELEM DA-66T
Stock #:
6178
Description

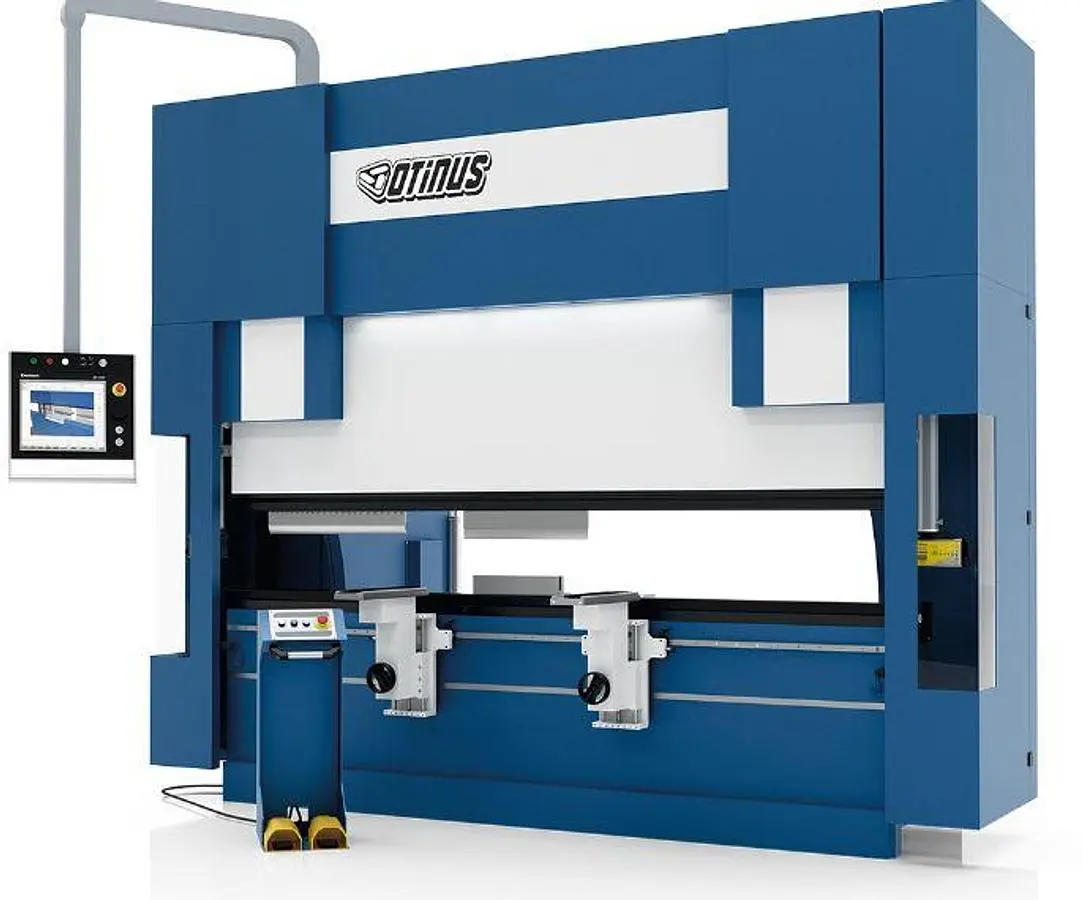

The Otinus Hydraulic Press Brake model PBO-4124-CNC with Delem DA-66T controller is a state-of-the-art piece of machinery ideal for industrial applications. It features eight-axis automatic control, significantly enhancing bending efficiency. The controller accommodates up to 500 programs, allowing each to have 25 steps and 99 repetitions, offering great flexibility in operation. With the ability to store up to 30 upper and lower dies and a user-friendly 17" TFT touch screen, this press brake supports both 2D and 3D programming modes.

This press brake stands out due to its comprehensive Delem design and crowning control managed via the controller. It includes functionalities like a USB port for additional device connections and can accommodate a bending angle sensor. Safety is prioritized with controls and sensors preventing collisions across individual axes. The machine's dimensions are 19' L x 9' W x 10' T, and it handles a bending capacity of 2400 kN with a maximum working length of 161".

Its nominal motor power is 22.0 kW, with a throat depth of 16", a maximum ram stroke of 12", and a daylight opening of 18". The backgauge allows for a retract distance of 29", and the press brake has a substantial weight of 31,532 pounds. This new machine is designed to meet rigorous industrial demands, combining precision, power, and advanced technology for optimal performance.

Specifications

BENDING CAPACITY: 2400 kN
MAX WORKING LENGTH: 161"
THROAT DEPTH: 16"
MAX RAM STROKE: 12"
DAYLIGHT: 18"
DISTANCE BETWEEN SIDE FRAMES: 12'
BACKGAUGE RETRACT DISTANCE: 29"
NOMINAL MOTOR POWER: 22.0 kW
DIMENSIONS: 19' L x 9' W x 10' T
WEIGHT: 31532
