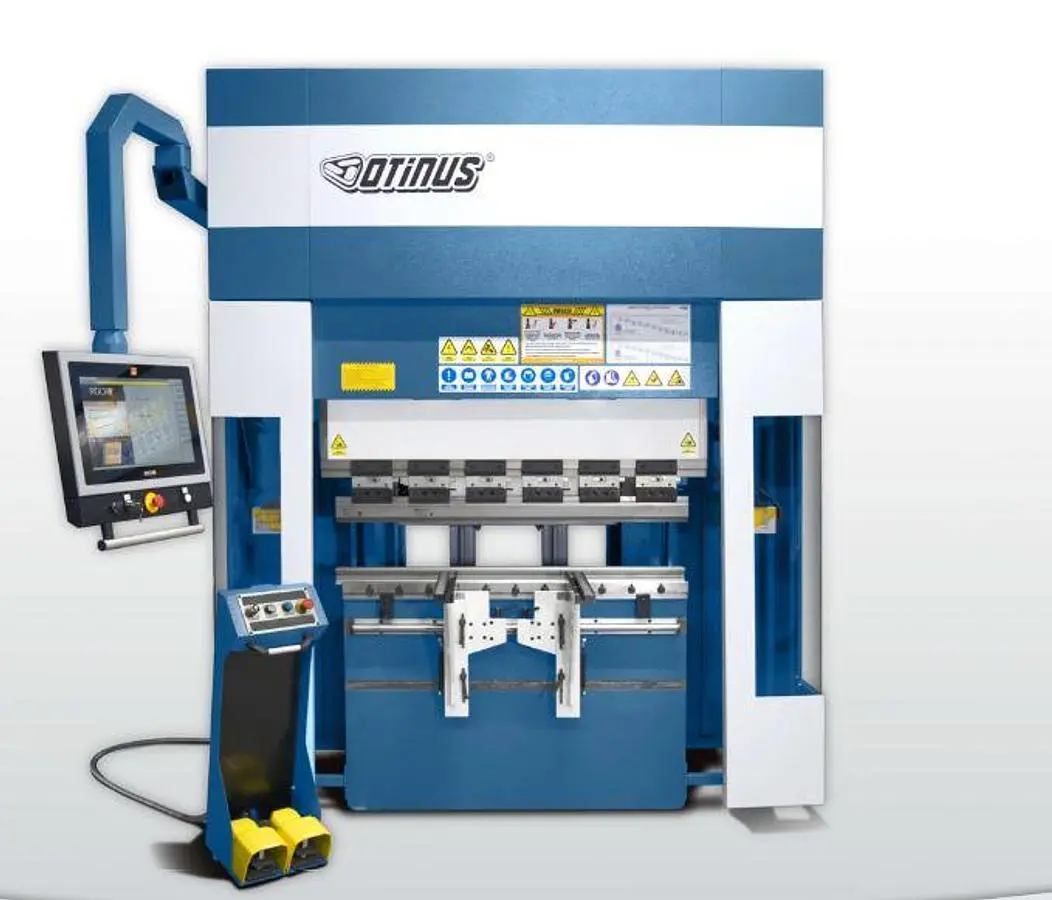

The OTINUS PRO Electric Press Brake, model PBE-1204-DA58, is a high-performance machine designed to deliver precise and efficient bending operations. With a bending capacity of 400 kN and a maximum working length of 50 inches, this new press brake is capable of handling various-sized sheet metal projects. It features a throat depth of 11 inches, allowing for flexibility in bending tasks.
Equipped with a Delem DA-58T control system, it provides ease of operation and accuracy. The maximum ram stroke is 8 inches, complemented by a 16-inch daylight opening for accommodating larger workpieces. The machine design includes a distance between side frames of 4 feet and a backgauge retract distance of 29 inches, offering significant workspace versatility.
This press brake operates with a nominal motor power of 2.0 kW, ensuring efficient power usage. It boasts access and return speeds of 150 mm, with bending speeds ranging from 10 to 20 m/s. With its dimensions of 7 feet in length, 5 feet in width, and 9 feet in height, and a weight of 8820 lbs, it is a robust piece of equipment suitable for industrial environments requiring precision and reliability.
BENDING CAPACITY: 400 kN
MAX WORKING LENGTH: 50"
THROAT DEPTH: 11"
MAX RAM STROKE: 8"
DAYLIGHT: 16"
DISTANCE BETWEEN SIDE FRAMES: 4'
BACKGAUGE RETRACT DISTANCE: 29"
NOMINAL MOTOR POWER: 2.0 kW
ACCESS SPEED: 150 MM
BENDING SPEED: 10-20 M/S
RETURN SPEED: 150 MM
DIMENSIONS: 7' L x 5' W x 9' T
WEIGHT: 8820
