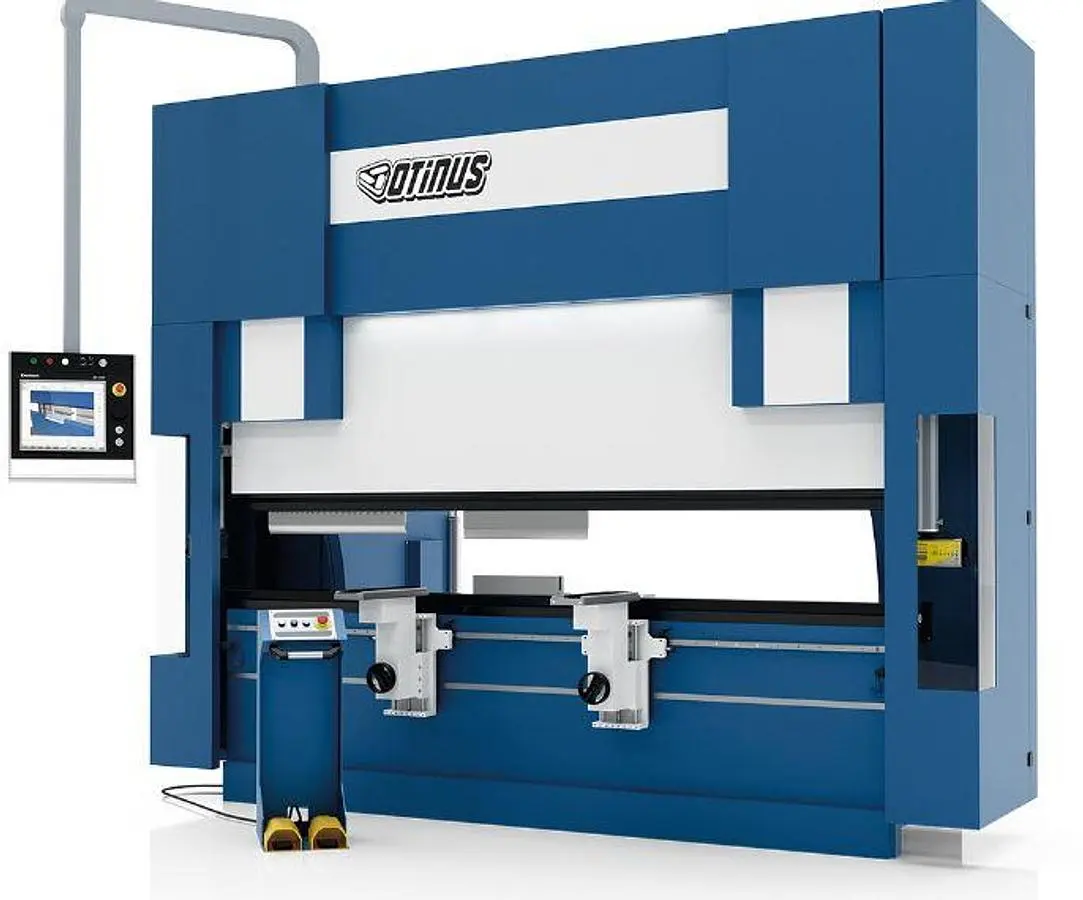

The OTINUS PRO Hydraulic Press Brake, model PBO-3722-DA69, is a new, robust machine tailored for intricate sheet metal bending tasks. It features the advanced Delem DA-69T controller, which supports 2D and 3D graphical touch programming, allowing for precise and efficient operations. Equipped with a 17" high-resolution TFT screen and full Windows operating system, it ensures a user-friendly experience, supported by external USB connectivity and multitasking capabilities.
This press brake boasts a substantial bending capacity of 2150 kN and accommodates a maximum working length of 145 inches. It's designed with a throat depth of 20 inches and offers a maximum ram stroke of 16 inches, providing versatility for various applications. With a nominal motor power of 18.5 kW and adjustable bending speeds ranging from 10-20 m/s, it efficiently handles demanding workloads while maintaining precision.
Key dimensions include a frame size of 20' L x 10' W x 11' T and a weight of approximately 29,988 pounds, reflecting its solid construction. This machine is ideal for industries requiring reliable and high-capacity press brakes, enhanced further by the Profile-T3D offline software, which aids in simulation and processing to maximize productivity.
BENDING CAPACITY: 2150 kN
MAX WORKING LENGTH: 145"
THROAT DEPTH: 20"
MAX RAM STROKE: 16"
DAYLIGHT: 24"
DISTANCE BETWEEN SIDE FRAMES: 11'
BACKGAUGE RETRACT DISTANCE: 29"
NOMINAL MOTOR POWER: 18.5 kW
DIMENSIONS: 20' L x 10' W x 11' T
WEIGHT: 29988
