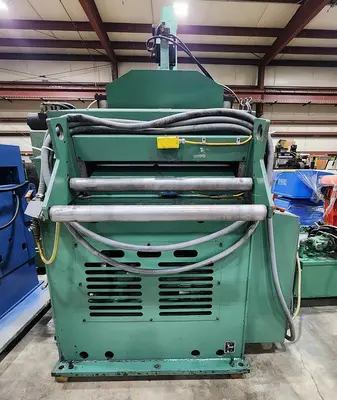

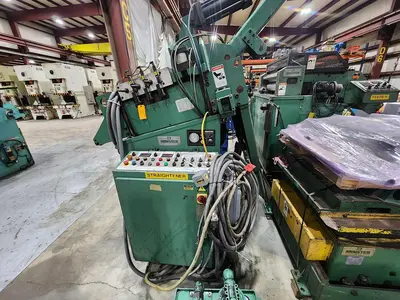

This used Minster Feed Line offers a comprehensive coil handling solution with several key components. The feeder, model MEF5-32S, and the straightener have a combined assembly weight of 13,800 pounds, and are capable of processing maximum stock thickness of 0.350 inches at a 5-inch width, or 0.120 inches at full 32-inch width, maintaining a yield strength of 50,000 PSI. The line operates at speeds of 40 to 1200 inches per minute, catering to various production needs.
The system includes a thread table (Model MTT 20-32S) weighing 2,000 pounds and a robust double end coil reel (Model MR 10-38D), capable of handling a maximum coil weight of 10,000 pounds per side. The reel accommodates coils with an outer diameter up to 60 inches, adjustable to 72 inches, and an inner diameter range of 19.5 to 24 inches. This flexibility ensures suitability for a wide variety of coil sizes and material types.
With its peeler hold-down feature and a coil car, this feed line is engineered to enhance efficiency and accuracy in coil feeding applications. Its substantial construction and adaptable design make it a reliable choice for industries demanding durable and flexible equipment for metal processing and other related applications.

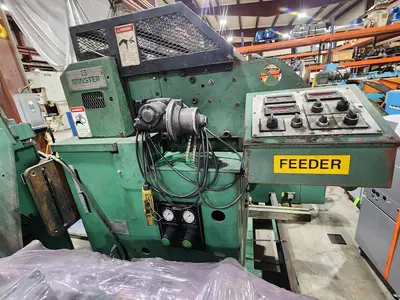

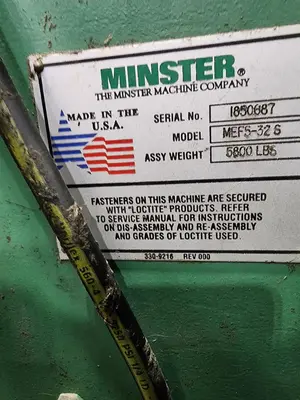

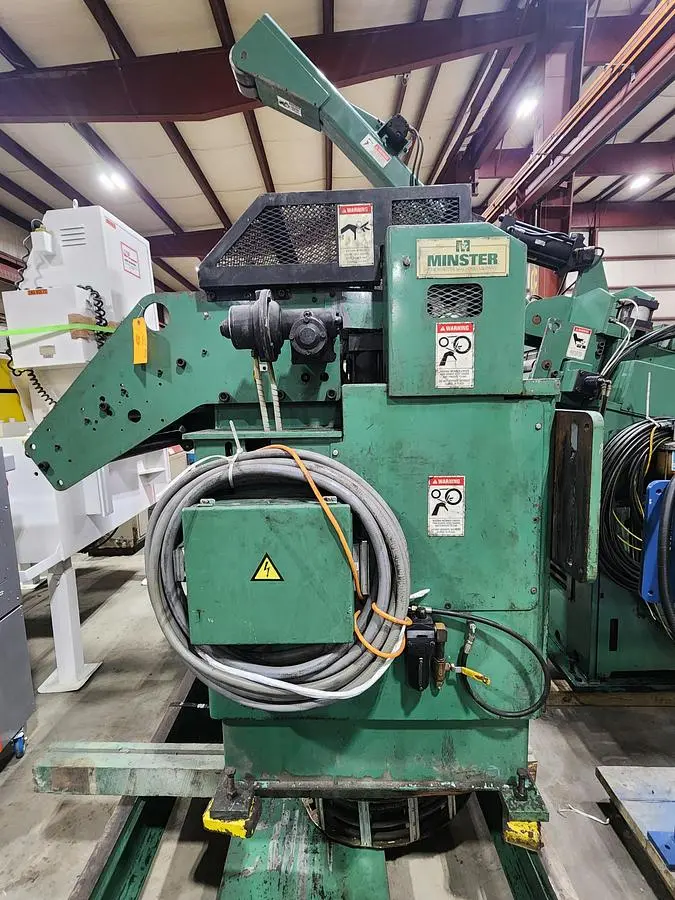

FEEDER MODEL NUMBER: MEF5-32S

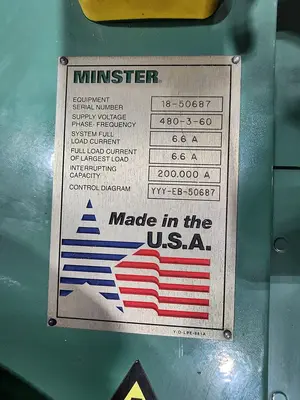

FEEDER SERIAL NUMBER: 1850687

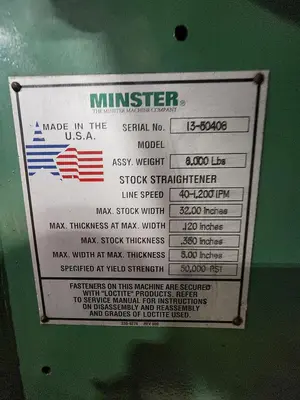

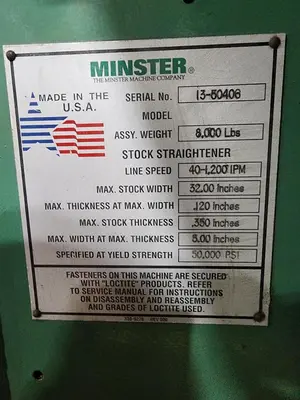

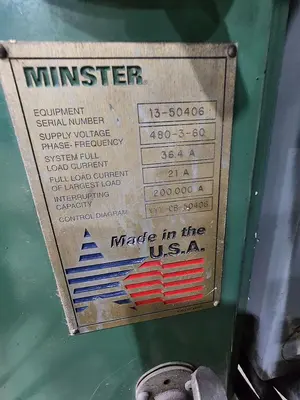

STRAIGHTENER SERIAL NUMBER: 13-50406
LINE SPEED: 40-1200 IPM
MAX STOCK WIDTH: 32"
MAX STOCK THICKNESS @ FULL WIDTH: .120" @ 32"
MAX STOCK THICKNESS: .350" @ 5"
SPECIFIED AT YIELD STRENGTH: 50,000 PSI

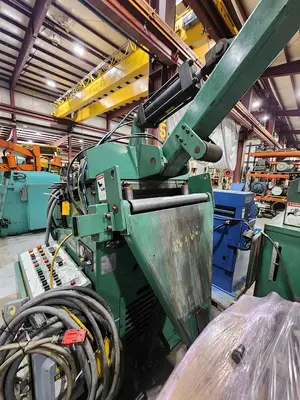

PEELER: YES
HOLD DOWN ARM: YES

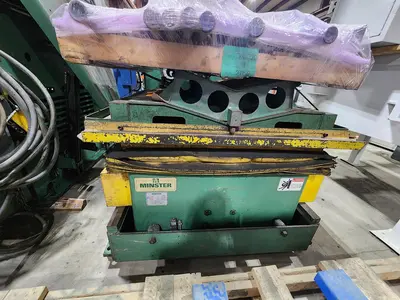

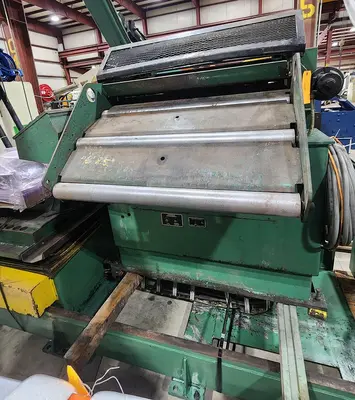

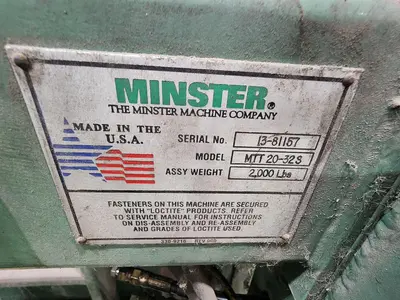

THREAD TABLE MODEL NUMBER: MTT 20-32S
THREAD TABLE SERIAL NUMBER: 12-81157

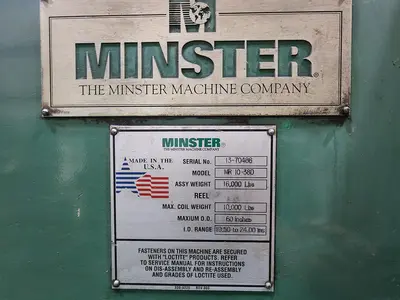

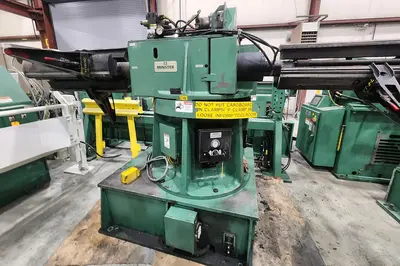

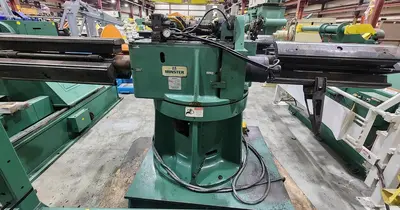

DOUBLE END COIL REEL MODEL NUMBER: MR 10-38D
DOUBLE END COIL REEL SERIAL NUMBER: 13-70466
MAX COIL WEIGHT: 10,000 LBS PER SIDE
MAX COIL OD: 60" - CAN BE MODIFIED TO RUN 72" OD
ID RANGE: 19.5" - 24"
