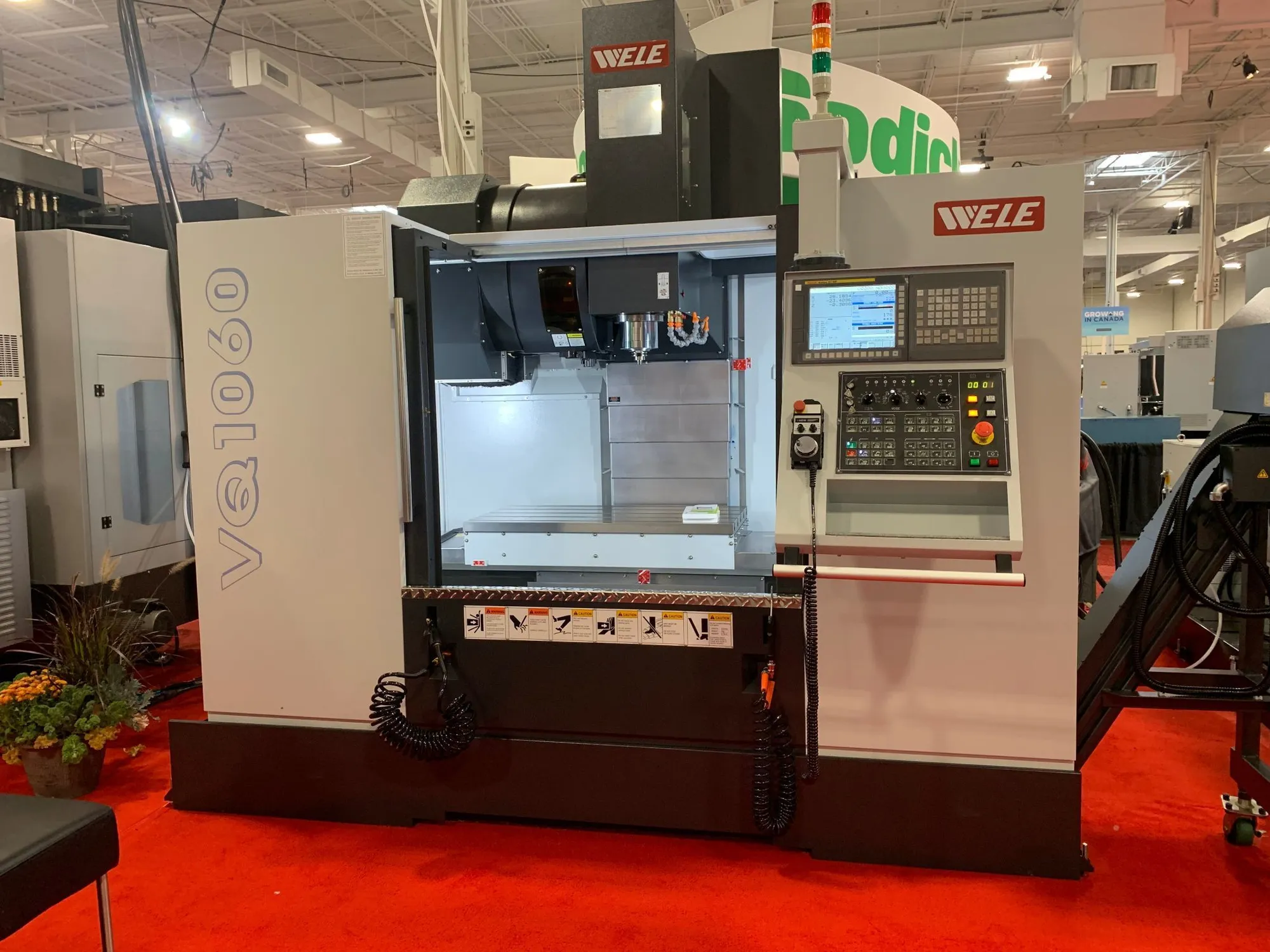

WELE VQ 1060 Vertical Machining Center
| X | 40.2" | 1,021.1 mm |
| Y | 23.6" | 599.44 mm |
| Z | 23.6" | 599.44 mm |
| Power | 1,015 hp | 756.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 45.3" | 1,150.6 mm |
| Table-L | 23.6" | 599.44 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 0iMF) | CNC (Fanuc 0iMF) |
| Dimensions | 125"x94"x115" | 125"x94"x115" |
| Weight | 13,200lbs | 13,200lbs |
Fanuc 0iMF CNC control with Manual guide i and 10.4" screen
24 ATC
Coolant through spindle @ 20 BAR
Rigid tapping
Caterpillar type chip conveyor
CSA electrics
Table capacity: 2,200lbs
Axes rapid feedrate/min; X/Y/Z 1,417"/1,417"/1,181"
Axes motors; X/Y/Z 2.5hp/2.5hp/4hp
Machine size; LxWxH 125"x121"x116"
Machine weight 13,000lbs
Electrics 220v/3/60
GSA 4th Axis 250mm; installed
Blum tool pre-setter
Blum touch probe
Delivered and installed
