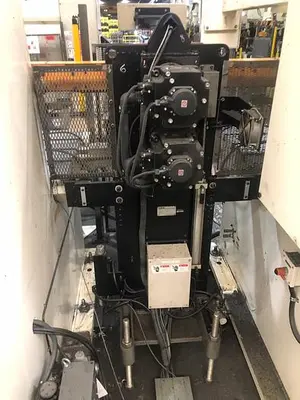

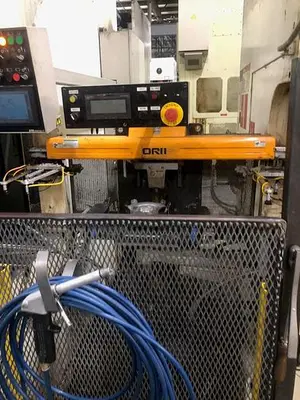

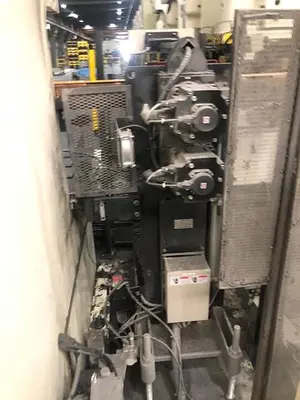

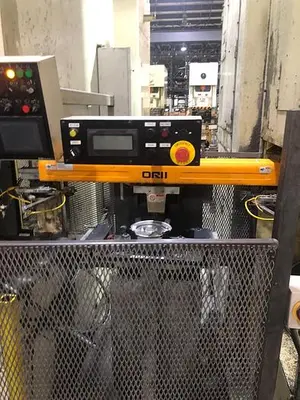

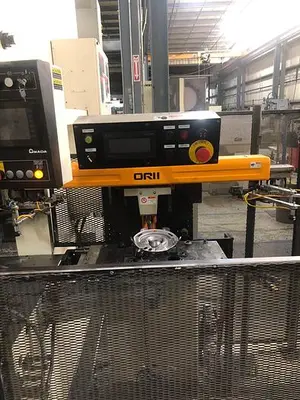

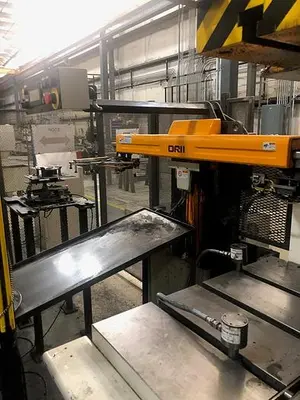

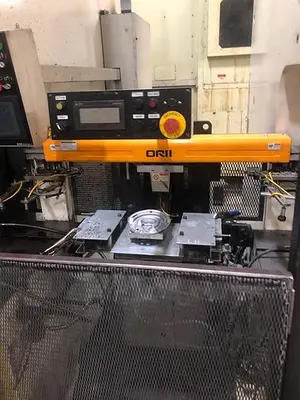

USED 2010 ORII ROBOT RYN120S1SX

The 2010 Orii Robot RYN120S1SX is a reliable and efficient industrial robotic arm ideal for various applications. As a used model, it maintains robust performance, ensuring value and productivity. This robot offers a feed length ranging from 1,001 to 1,200 mm and a vertical stroke capacity of up to 100 mm, suitable for handling a variety of materials and tasks.

Designed for swift operation, it delivers a cycle time between 1.7 to 2 seconds, increasing throughput for industrial settings. The robot can handle workpieces weighing up to 4.0 kg each, with two separate workpieces manageable simultaneously due to its dual handling capacity. It assures precision with a repeatability rate of ±0.3 mm, vital for high-accuracy tasks.

Equipped with vacuum and magnet workpiece pick-up capabilities, the RYN120S1SX is versatile in its material handling method. The servo-driven mechanism provides enhanced control and efficiency during operations. Weighing 400 kg, it is a robust addition to any industrial environment needing reliable and precise robotic assistance.

MODEL NUMBER: RYN120S1SX
MANUFACTURE YEAR: 2010
FEED LENGTH: 1001 - 1200 MM
VERTICAL STROKE: 100 MM
CYCLE TIME: 1.7 - 2 SECONDS
WORKPIECE WEIGHT CAPACITY: 4 KG
REPEATABILITY ACCURACY: +/- 0.3 MM
WEIGHT: 400 KG
