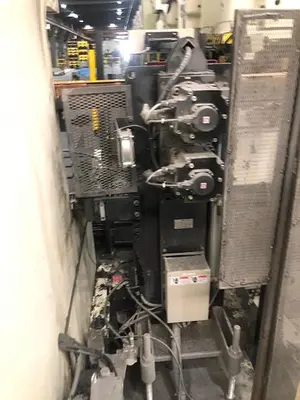

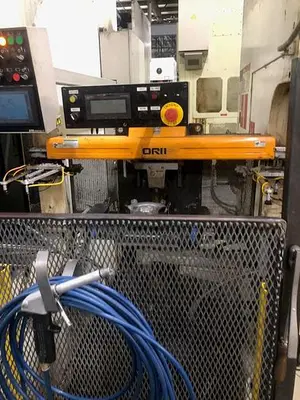

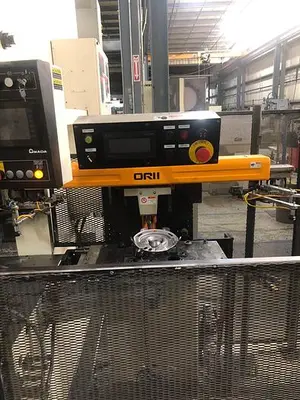

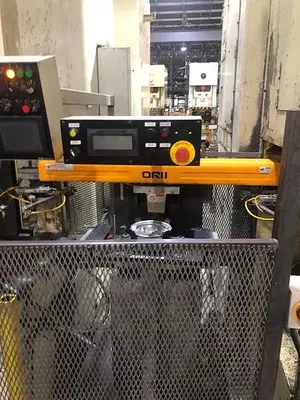

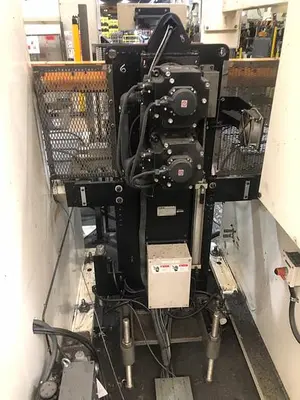

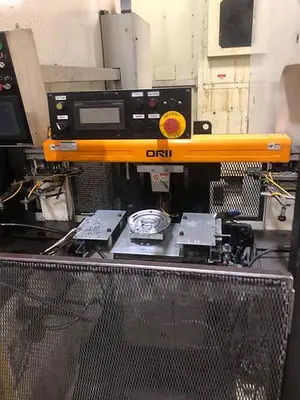

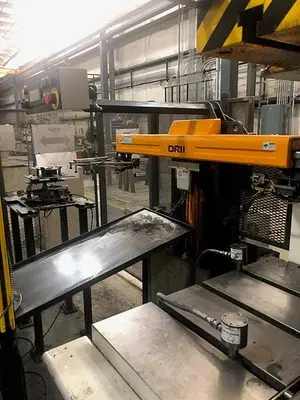

USED 2015 ORII ROBOT RYN120S1SX

The Orii Robot RYN120S1SX is a reliable used industrial robot known for its efficiency and precision. It features a feed length ranging from 1,001 to 1,200 mm, with a vertical stroke capacity of 0-100 mm, making it versatile for various applications. The cycle time is set between 1.7 to 2 seconds, ensuring rapid operation in workflow processes. It can handle a maximum workpiece weight of 4.0 kg, with its dual weight capacity doubling its utility.

This servo-driven robot boasts repeatability of ±0.3 mm, highlighting its exceptional accuracy for repetitive tasks. Its capability to pick up workpieces is enhanced with vacuum and magnet options, providing flexibility in handling different materials. Despite its robust performance, it maintains a manageable weight of 400 kg, ensuring stability and ease of setup in industrial environments.

Ideal for businesses looking to optimize their manufacturing processes, the Orii Robot RYN120S1SX combines precision performance with sturdy build quality, ensuring dependable service in various applications.

MODEL NUMBER: RYN120S1SX
MANUFACTURE YEAR: 2015
FEED LENGTH: 1001 - 1200 MM
VERTICAL STROKE: 100 MM
CYCLE TIME: 1.7 - 2 SECONDS
WORKPIECE WEIGHT CAPACITY: 4 KG
REPEATABILITY ACCURACY: +/- 0.3 MM
WEIGHT: 400 KG
