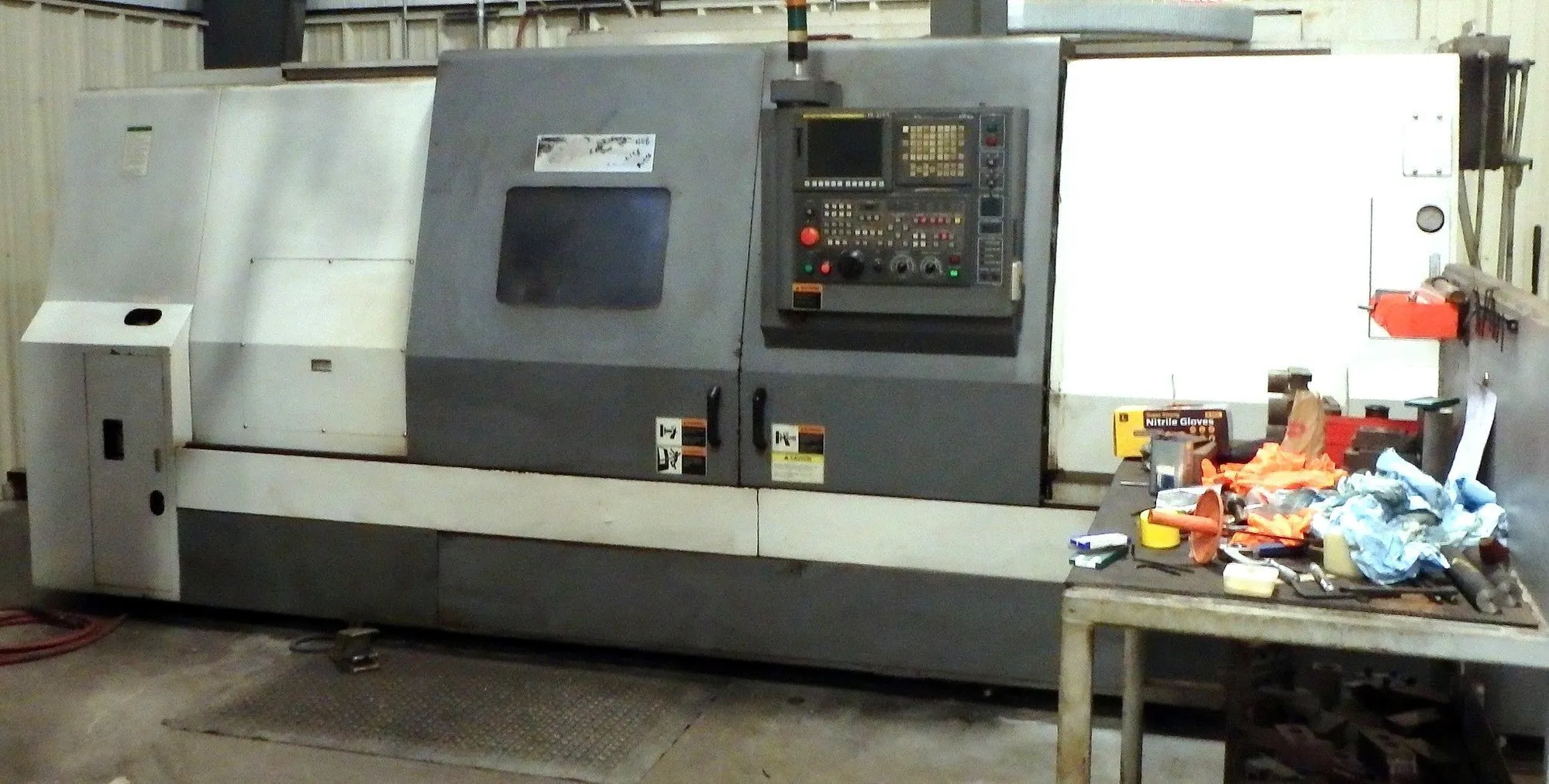

SAMSUNG SL35B/1500 CNC lathe, 2-axis, 2012 model. Features 23.6" swing, 16.5" turning diameter, 60.2" machining length. Comes with tool setter, chip conveyor, 15" hydraulic chuck, steady rest, and FANUC OI-TD control. Ideal for precision tasks.
| Swing Over Bed | 23.6" | 599.44 mm |
| Machining Length | 60.2" | 1,529.1 mm |
| Distance Between Centers | 64.6" | 1,640.8 mm |
| Turning Diameter, Shaft Diameter | 16.5" | 419.1 mm |
| Chuck Size 1 | 15" | 381 mm |
| Spindle Nose 1 | A2 - 11 | A2 - 11 |
| Spindle Bore Diameter 1 | 4.1" | 104.14 mm |
| Spindle Bar Capacity 1 | 3.4" | 86.36 mm |
| Spindle Speeds 1 | 2,000 RPM | 2,000 RPM |
| Spindle Horsepower 1 | 35 hp | 26.1 kW |
| X1 - Axis Travel | 10.8" | 274.32 mm |
| Z1 - Axis Travel | 63.2" | 1,605.3 mm |
| Rapid Traverse Rate - X1 | 787 in/min. | 333.2 mm/sec. |
| Rapid Traverse Rate - Z1 | 964 in/min. | 408.1 mm/sec. |
| Gear Ranges | 2 | 2 |
| Turret Configuration 1 | 12 | 12 |
| Tailstock Quill Diameter | 4.7" | 119.38 mm |
| Tailstock Quill Travel | 5.1" | 129.54 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 54.9" | 1,394.5 mm |
| # Axis | 2 | 2 |
| Control | CNC (FANUC OI-TD CNC COLOR CONTROL) | CNC (FANUC OI-TD CNC COLOR CONTROL) |
| Weight | 26,400 | 26,400 |
TOOL SETTER
CHIP CONVEYOR
15" 3-JAW HYDRAULIC CHUCK
FANUC OI-TD CNC COLOR CONTROL CNC CONTROL
