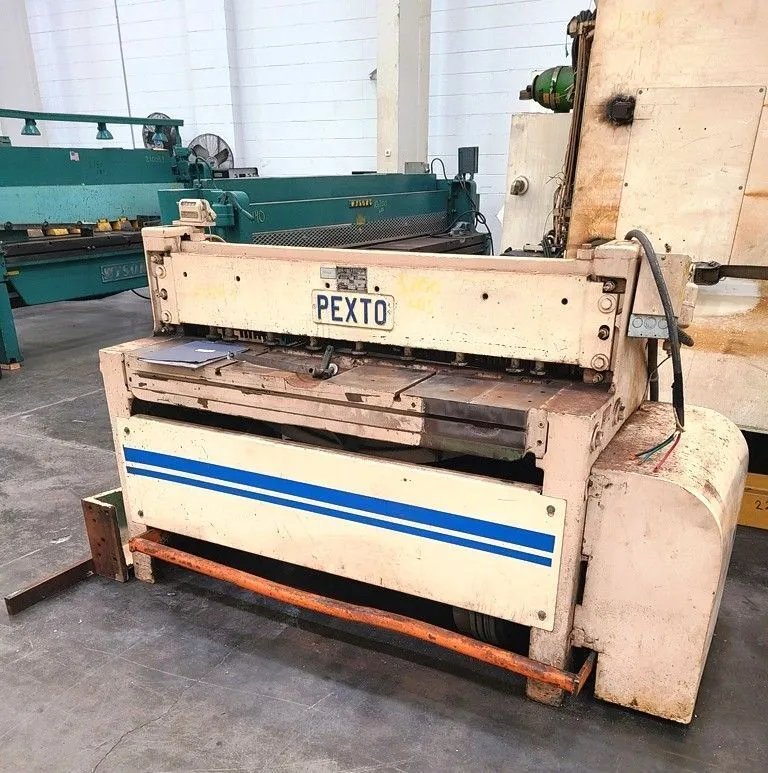

PEXTO 12-U-4 power squaring shears available, offering reliability for precise cutting needs. This used model is ideal for industrial applications seeking efficient and robust equipment performance.
| BACK GAUGE (YES/NO) | Yes | Yes |
| BACK GAUGE RANGE | 18" | 457.2 mm |
| APPROX MACHINE WEIGHT | 3,700 lb | 1,678.3 kg |
Cast Steel Frames
Shear Length: 48"
Rated in Mild Steel: 12 Gauge Maximum
Rear Operated Mechanical Back Gage: 18" Travel
60" Squaring Arm
Manual
Wired for Single Phase, 60 Cycle, 220 Volts
Overall Size: 80" LR x 60" FB x 48" High x 3,700 Lbs.
* (The FB Dimension Above Does Not Include the Squaring Arm. When Installed, Add at Least 60" of Clearance.)
