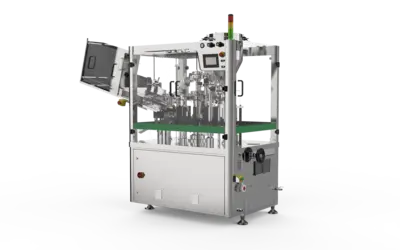

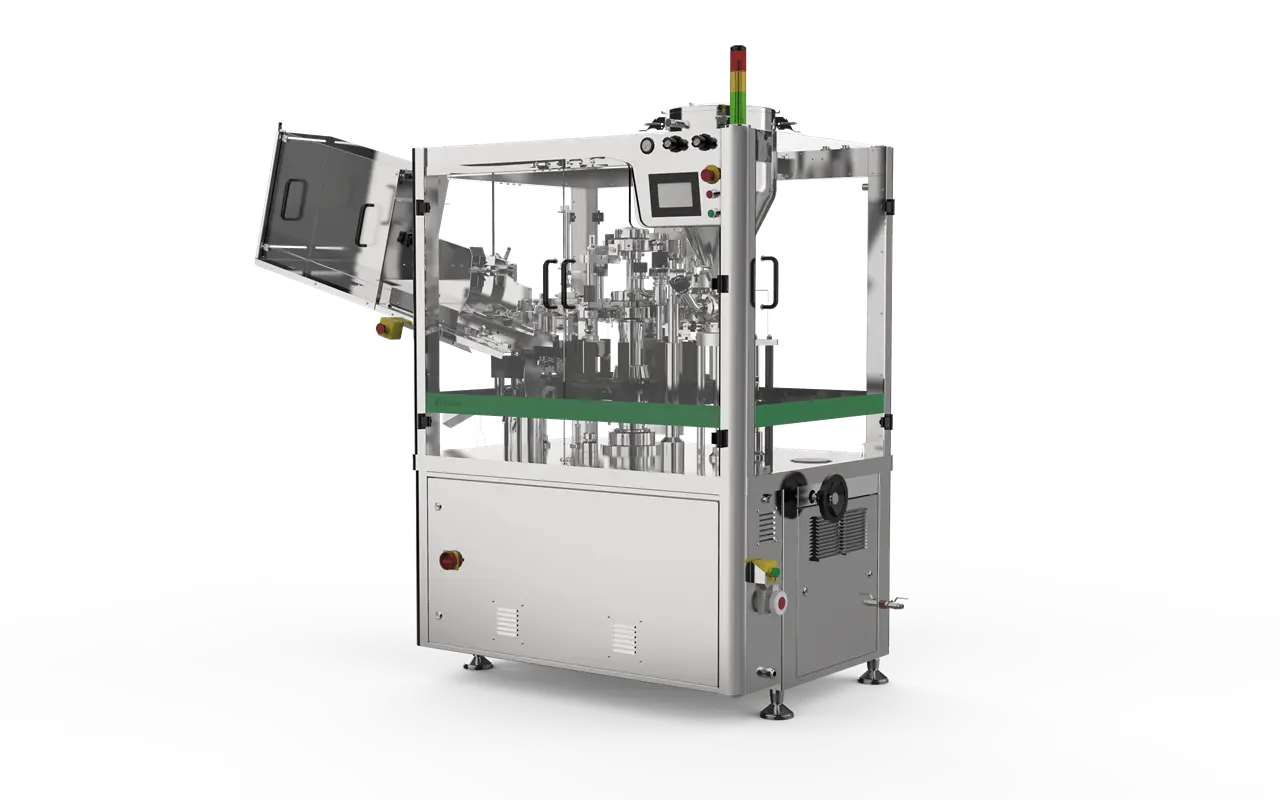

NEW BUSCH MACHINERY BMNF-80B
Overview
Description
Automatic tube feeding and tube washing, marking identification, filling, hot air sealing, code printing (embossing), trimming, and ejecting out of the tube are conducted by a fully automatic control system.
Tube washing and feeding are conducted pneumatically, accurately, and reliably.
The materials contacting part is made of 316L stainless steel, clean, sanitary, and conforming to GMP for medicine manufacture.
With a safety device, the machine shuts down when the door is opened, and no tube filling is allowed. Overload protection is provided.
Filling volume 5-250ml(tube)
Filling accuracy ≤±1%
Capacity 1800-4800 tubes/hour (Adjustable)
Tube diameter ф10- 50mm
Tube length 60-210mm (Max. Length)
Hopper volume 40 L
Power 380/220V (Optional)
Dimension 2390×1140×2180mm LxWxH
Weight (Approx) 1000kg
