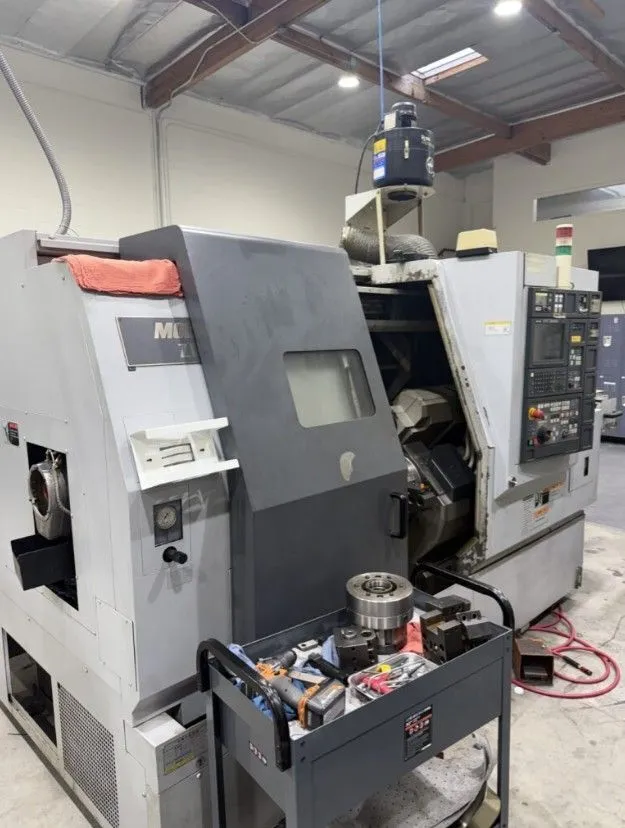

USED 2003 MORI SEIKI ZL-203SMC

General Specifications:
Chuck size: 8"
Max diameter bar capacity: 2.5"
Max swing over bed / carriage: 26.8" / 20.1"
Turning diameter (max / std): 15.3" / 7.0"
Distance between spindles: 29.6"
Max turning length: 16.6"
Spindle speed: 40 - 4000 RPM
Spindle bore: 2.9"
Spindle nose: A2-6
Spindle motor: 15 / 10 HP
Spindle torque: 180 ft. lbs.
Tools (upper / lower turret): 12 (All Live) / 8
Rapid traverse rates (x / z): 708 / 945 IPM
X-axis travel (upper / lower turret): 9.3" / 6.9"
Z-axis travel (upper / lower turret): 20.5" / 19.7"
C-axis index: .001 Degrees
Turret index (single step): 0.3 seconds
Milling motor (upper / lower): 6 / 3.3 HP
Milling speed: 3000 RPM
Sub spindle travel: 19.9"
Sub spindle motor: 10 / 7.5 HP
Sub spindle chuck size: 6"
Sub spindle bar diameter: 1.7"
Sub spindle speed: 60 - 6000 RPM

Machine dimensions: 156.2" x 83.9" x 82.9"
