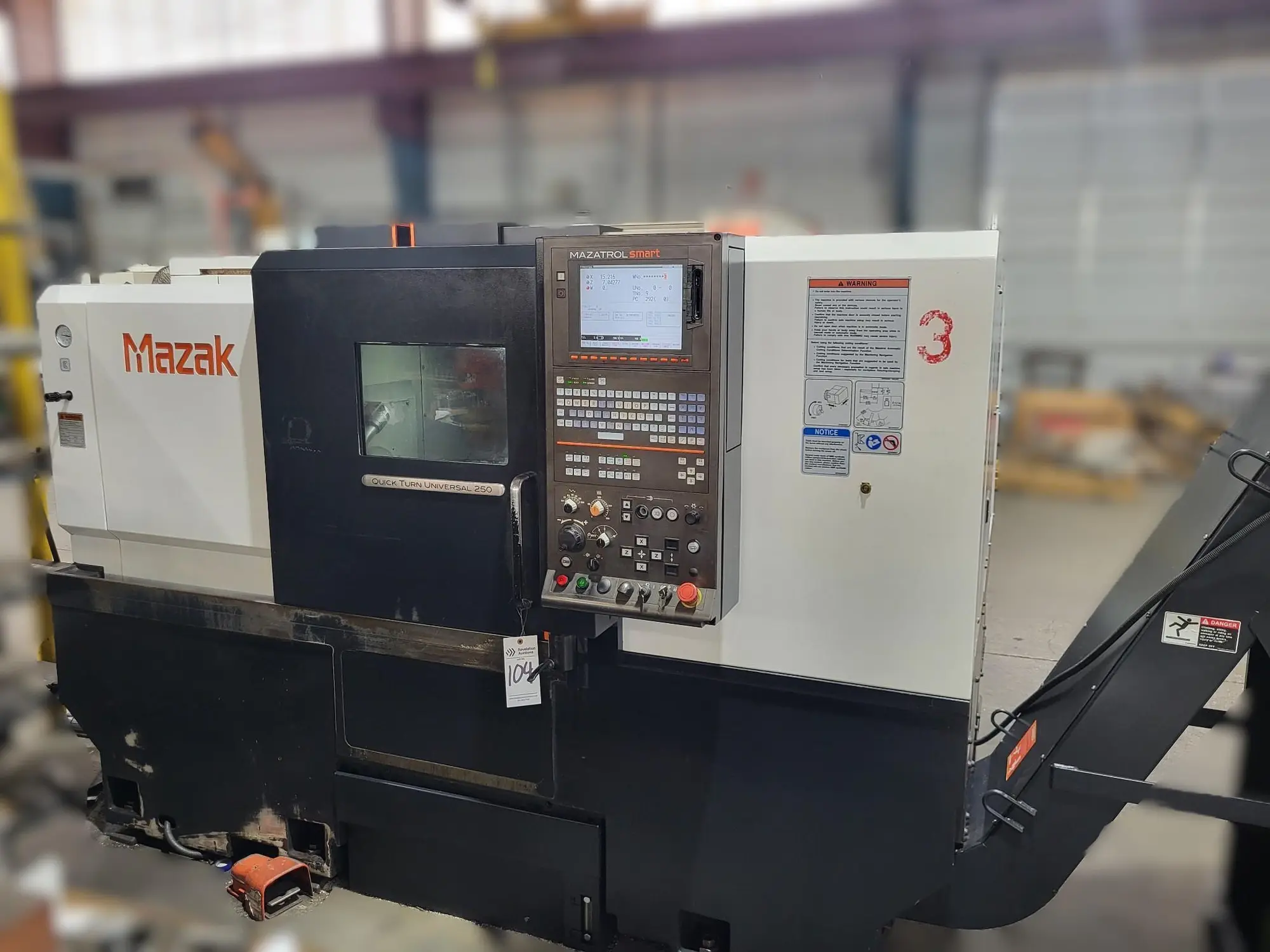

2015 MAZAK QUICK TURN 250 UNIVERSAL CNC lathe. Features include 15.75" swing, 18" machining length, 8" chuck, 2" bar capacity, 20 HP, max RPM 5000, tailstock. Enhance your shop's efficiency with this robust machine.
| Swing | 15.75" | 400.05 mm |
| Machining Length | 18" | 457.2 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2 mm | 0.0787" |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 15.75" | 400.05 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
Max Swing Over Bed: 27.4″
Max Turning Diameter: 16.25″
Max Distance Between Centers: 23.6″
Max Turning Length: 19.7″
X-Axis (Cross Travel): 8.5″
Z-Axis (Longitudinal Travel): 25″
Tool Turret Positions: 12
Spindle Nose: A2-6
Chuck Size: 8"
Bar Capacity: 2″
Max Spindle Speed: 4,500 Rpm
Spindle Horsepower: 20 Hp
Approximate Machine Dimensions: 108″ X 84″ X 90″
Approximate Machine Weight: 11,500lb
Mazatrol Smart Cnc Control
W Axis Control
Tool Setter
Tailstock
Chip Conveyor
Kitagawa B-208 8" Chuck
