Used Polamco TUR-63 Engine Lathe features a 24.8" swing, 120" centers, and 3.5" spindle bore. Powered by 10 hp with speeds up to 1,800 RPM, it includes steady rest, chip pans, dual chucks, taper attachment, and tailstock. Ideal for precision tasks.
| Swing | 24.8" | 629.92 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 3.5" | 88.9 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 14.5" | 368.3 mm |

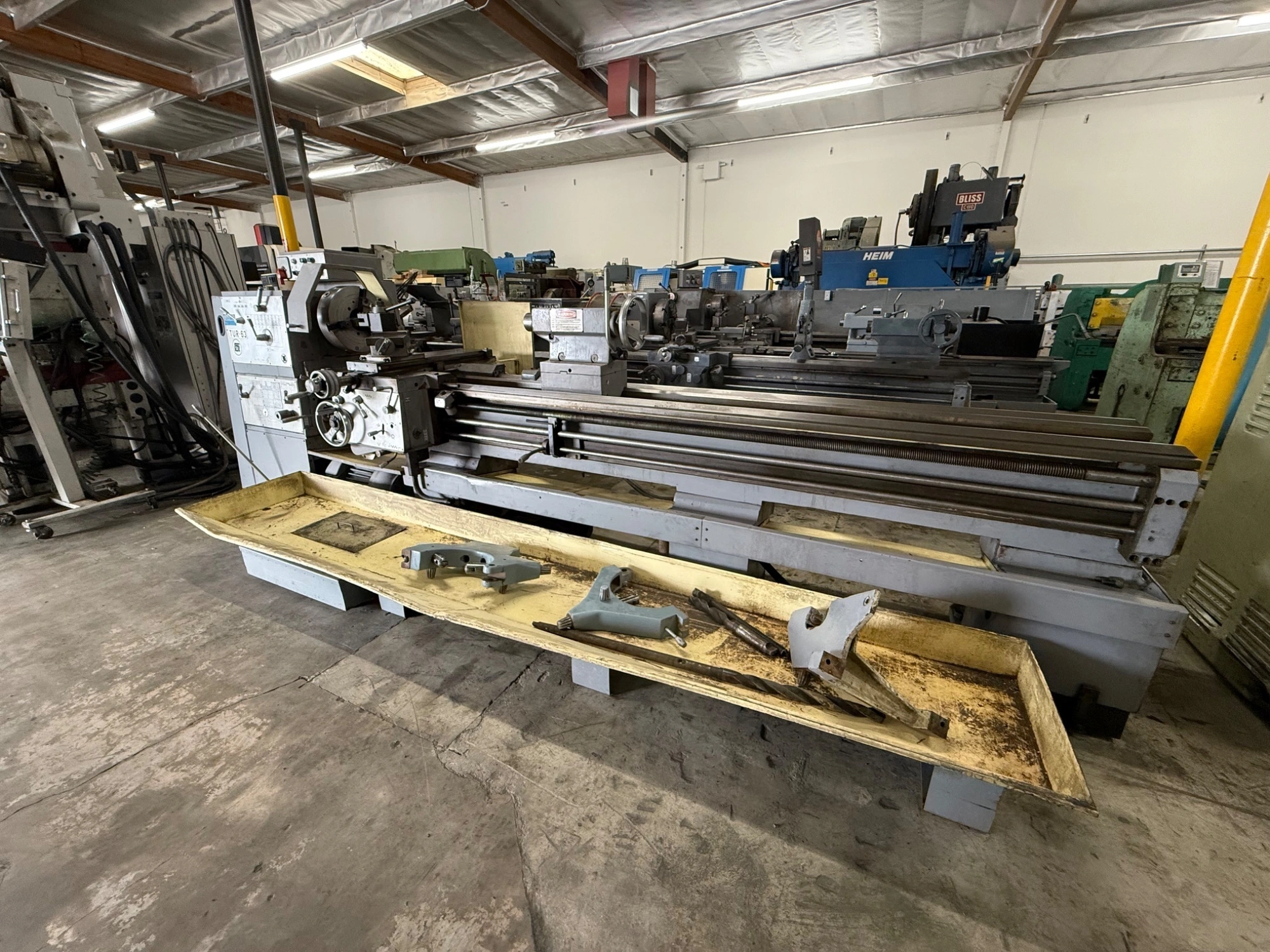

Polamco TUR-63 Engine Lathe #7546 #2
SPECIFICATIONS:
Swing over ways: 24"
Swing over cross slide: 15"
Distance between centers: 120"
Cross slide travel: 7"
Spindle speeds: (21) 18 TO 1800 RPM
Carriage longitudinal feeds: 0031 TO .121 IPR
Cross-slide cross feeds: 0016 TO .060 IPR
Inch thread changes: 1 TO 88 TPI
Diametral thread changes: 1 TO 88 DP
Modular thread changes: 1 TO 88 MM
Spindle hole: 3.5"
Tail stock taper: #5 MT
Motor: 15 KW
EQUIPPED WITH:
Steady Rest
Chip Pans
(2) Chucks
Taper Attachment
Tailstock
