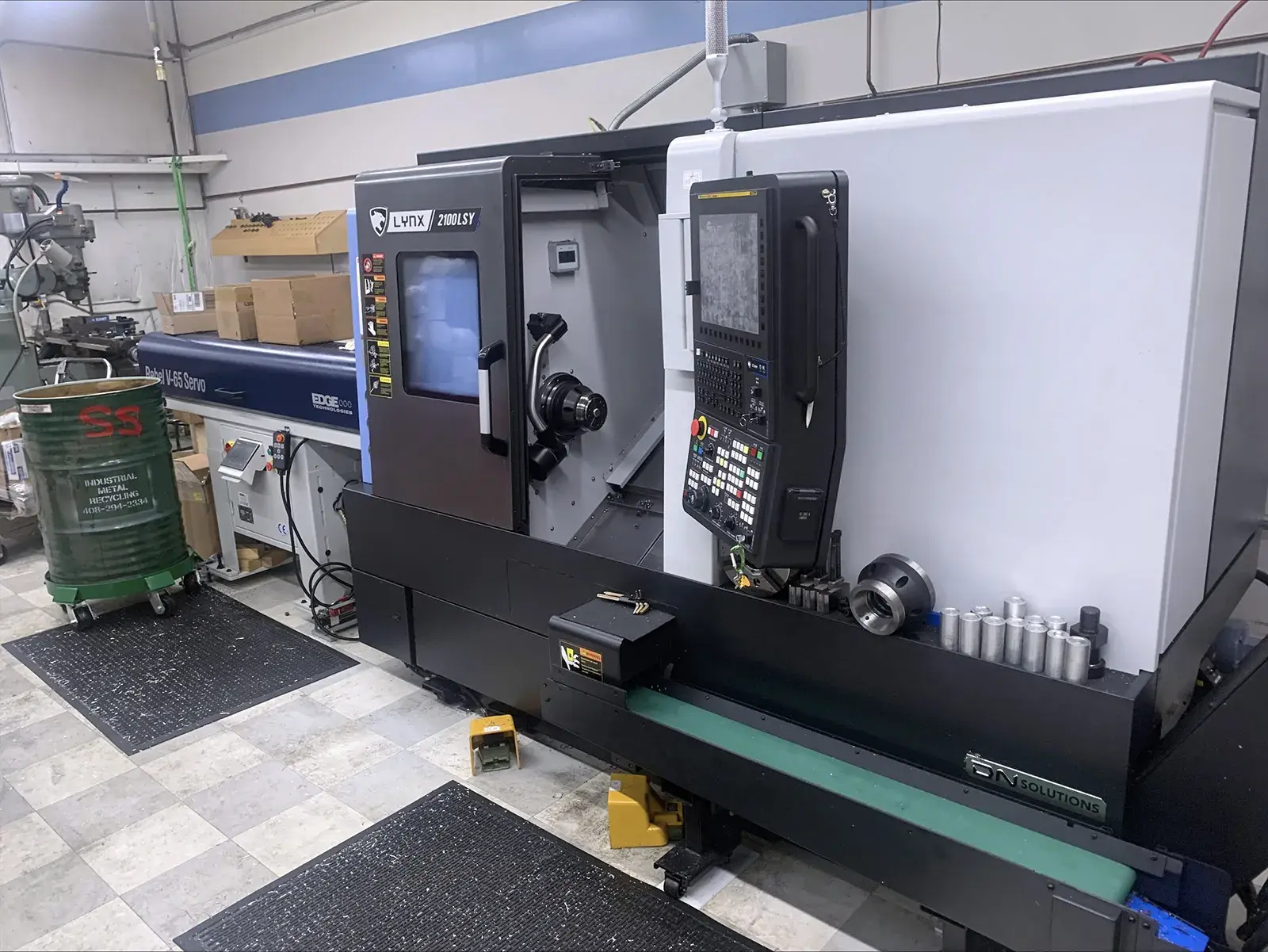

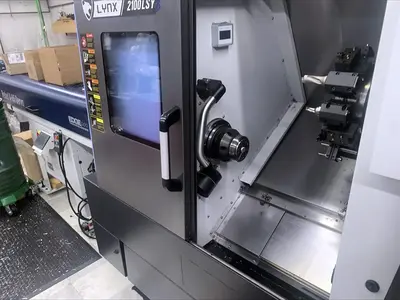

USED 2023 DN SOLUTIONS LYNX 2100LSYB
Overview
The DN Solutions Lynx 2100LSYB CNC Lathe (2023) with Fanuc i Series control delivers high-precision turning for automotive, medical, and aerospace industries. Ideal for producing shafts, gears, and hydraulic components efficiently in a single setup with excellent accuracy and reliability.
Specs
Fanuc i Series Control
Y axis Capability
Remote Jog Handle
Collet Nose on Main and Sub Spindle
Original Samchully 8" and 6" 3 Jaw Chucks

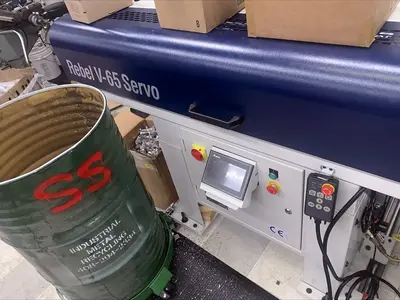

Edge Barfeeder
LNS Chip Conveyor
Parts Conveyor
High Pressure Coolant Pump 145psi
Original Standard Pump
Extra Collets Included
Live and Static Tool Holders
Original Manuals
Spindle Liners
Full Contouring C-Axis on Main and Sub Spindle
Programmable Part Catcher and Part Conveyor
Automatic Tool Setter
Sub Spindle Part Ejector with Coolant Flush
Swing over Bed: 23.6"
Swing Over Carriage: 15.7"
Maximum Turning Diameter: 11.8"
Maximum Turning Length: 20.0"
Distance Between Main and Sub Spindle Nose: 30.4"
X Axis Travel: 8.07"
Y-Axis Travel: ±2.065”
Z Axis Travel: 22.0"
Main Spindle: 4,500 RPM
Main Chuck Size: 8"
Sub Spindle: 6,000 RPM
Sub Spindle Chuck: 6"
Bar Capacity: 2"
Live tool: 6,000 RPM
12 Station Turret / 24 Position Indexing
Z Axis Rapid Traverse: 1,417 ipm
Equipped With
Fanuc i Series Control
Y axis Capability
Remote Jog Handle
Collet Nose on Main and Sub Spindle
Original Samchully 8" and 6" 3 Jaw Chucks
Edge Barfeeder
LNS Chip Conveyor
Parts Conveyor
High Pressure Coolant Pump 145psi
Original Standard Pump
Extra Collets Included
Live and Static Tool Holders
Original Manuals
Spindle Liners
Full Contouring C-Axis on Main and Sub Spindle
Programmable Part Catcher and Part Conveyor
Automatic Tool Setter
Sub Spindle Part Ejector with Coolant Flush
