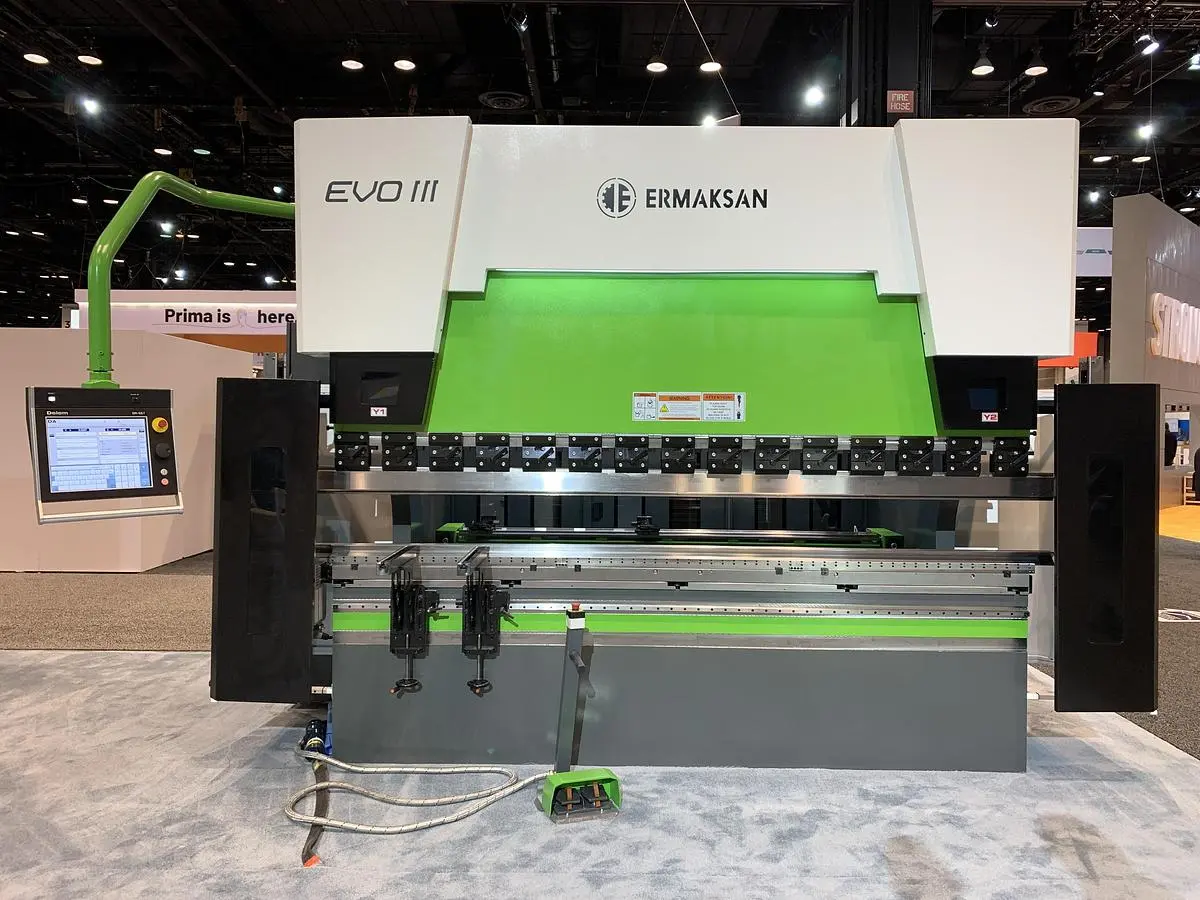

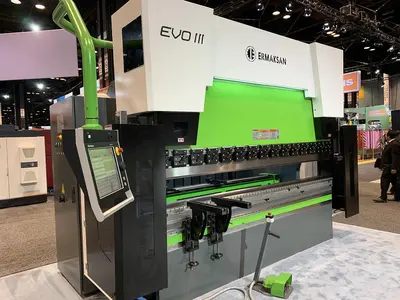

NEW ERMAKSAN EVO 4270-220

Capacity: 242 Tons
Overal Bending Length: 168"
Distance Between Columns: 148.82"
Y Rapid Speed: 7.76"/sec
Y Working Speed: 0.39"/sec
Y Return Speed: 6.85"/sec
X Axis Travel: 31.5"
X Axis Speed: 19.69" /sec
R Axis Travel: 9.84"
R Axis Speed: 13.78"/sec
Z1, Z1 Axis Speed: 39.37"/sec
Stroke: 10.83"
Daylight: 21.65"
Throat: 16.14
Weight: 31,000 lbs.
Dimensions (approx): 210 x 89 x 119"H
Oil Capacity: 15 Gallons

Equipped with
Delem DA-69S Full 3D Touch Screen Control
Delem Profile-T 3D Software (Full Version)
Y1, Y2, X, R, Z1, Z2 Axes
X-Prime Axis (for angle bending)
CNC Crowning
LazerSafe System
Suspension Controller Arm
Quick Release Universal Punch Holders,
Tooling Package w/4-Way Bottom Die

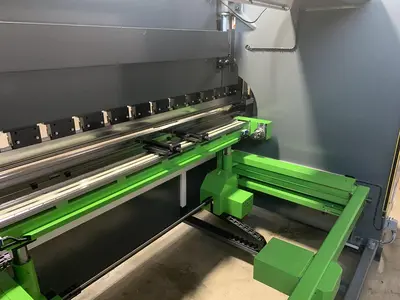

Sheet Support Arms
Foot Pedal
