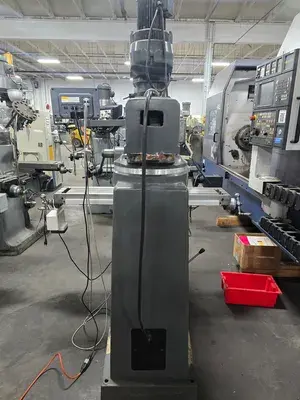

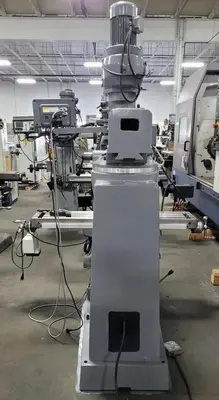

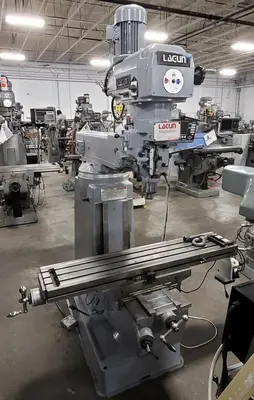

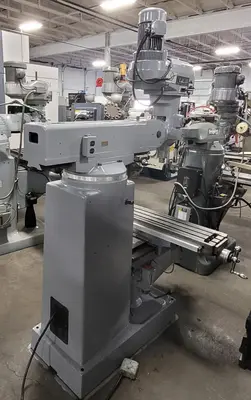

USED LAGUN REPUBLIC FTV-2

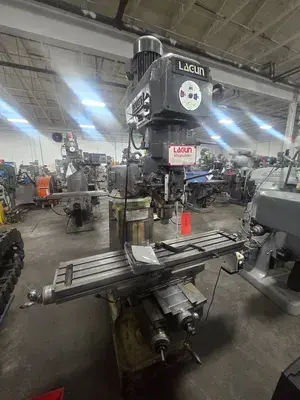

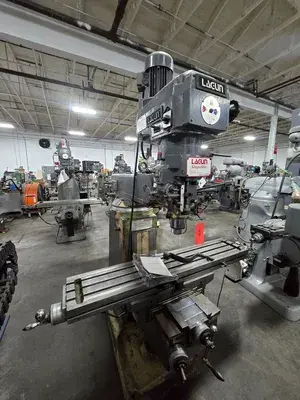

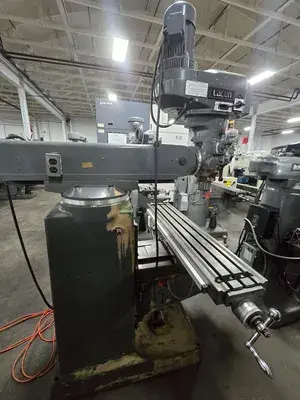

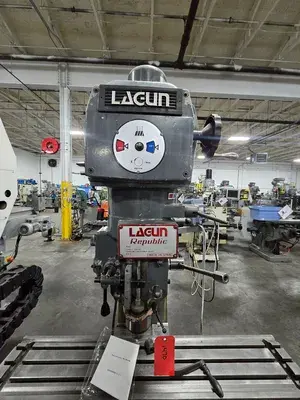

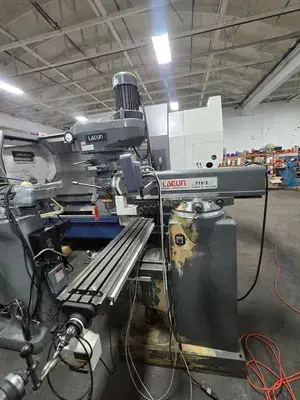

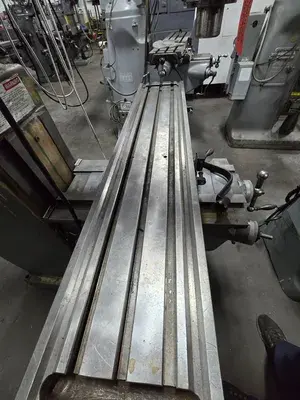

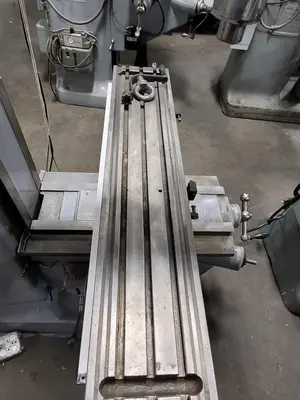

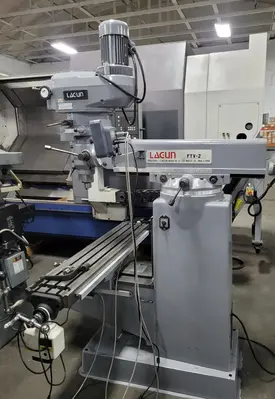

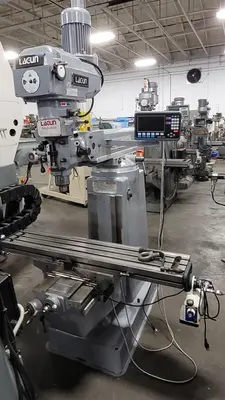

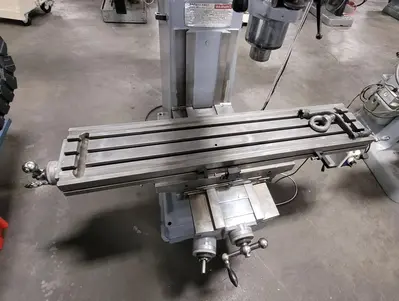

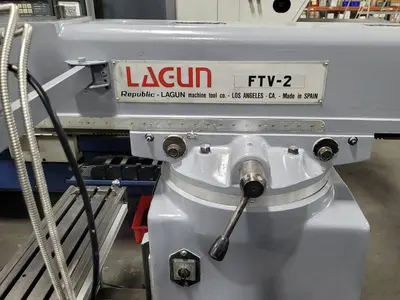

THE LAGUN/REPUBLIC FTV-2 VERTICAL MILL FEATURES A 3 HP MAIN MOTOR WITH MECHANICAL INFINITE VARIABLE SPEED SETTINGS, PROVIDING A RANGE OF 55 TO 4,250 RPM, SPLIT INTO LOW (55 TO 490 RPM) AND HIGH (490 TO 4,250 RPM). THE MILL IS EQUIPPED WITH A 55.25" X 10" (1,403 X 254 MM) T-SLOTTED TABLE WITH THREE 0.63" (16 MM) T-SLOTS ON 2.51" CENTERS, CAPABLE OF SUPPORTING A MAXIMUM WEIGHT OF 750 LBS. (340 KG). TRAVELS INCLUDE 37.99" (965 MM) FOR MANUAL X-AXIS TABLE TRAVEL, 15.98" (406 MM) FOR CROSS TRAVEL (Y-AXIS), AND 15.98" (406 MM) FOR KNEE TRAVEL (Z-AXIS). RAM TRAVEL IS 22.44" (570 MM). THE SPINDLE HAS AN R-8 TAPER AND A QUILL DIAMETER OF 3.38" (86 MM) WITH 5" (127 MM) OF TRAVEL. POWER QUILL FEEDS ARE AVAILABLE AT .0015, .00314, AND .00511 IN./REV (0.04; 0.08; 0.13MM/REV). HEAD SWIVEL IS +/- 90° (LEFT TO RIGHT) AND TILT IS +/- 45° (FRONT TO BACK). DISTANCE FROM SPINDLE TO COLUMN RANGES FROM 5" TO 26.96" (127 TO 685 MM), AND SPINDLE TO TABLE DISTANCE IS 0" TO 17.99" (0 TO 457 MM). THE MACHINE INCLUDES AN INTERNAL COOLANT SYSTEM AND ONE-SHOT LUBE.
