USED CLAUSING KONDIA FV-1

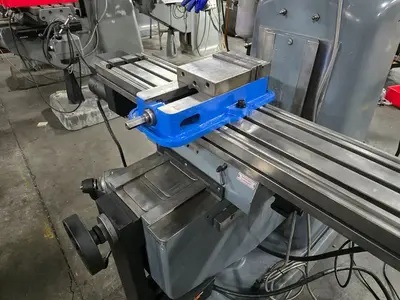

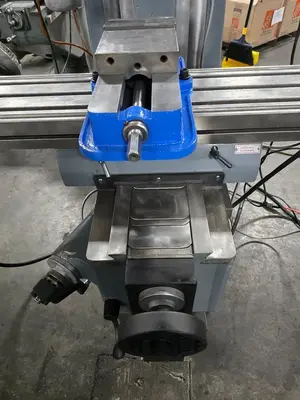

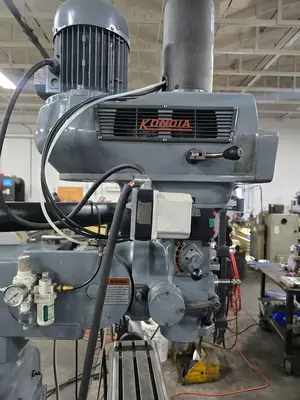

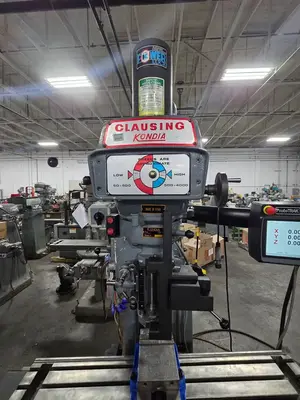

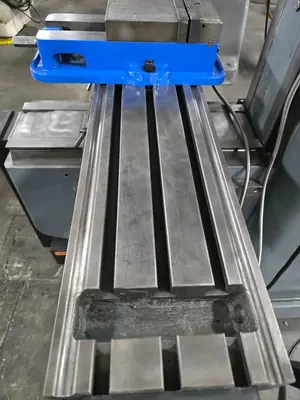

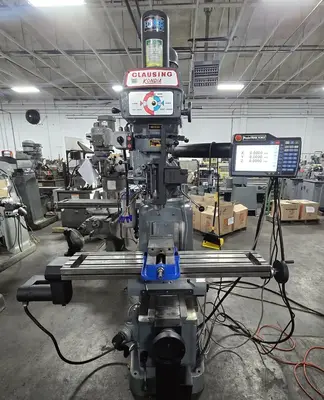

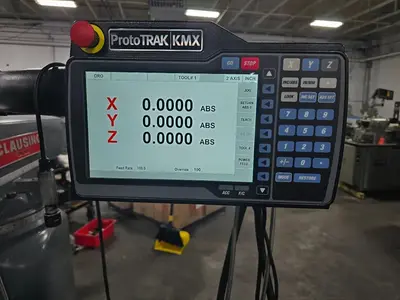

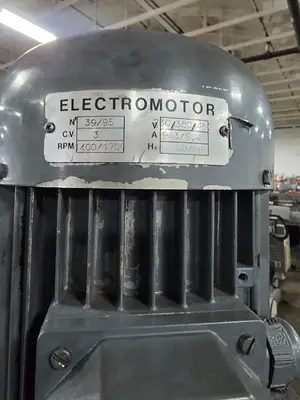

THE CLAUSING KONDIA FV-1 VERTICAL KNEE MILL FEATURES A 9" X 48" TABLE AND IS EQUIPPED WITH A PROTOTRAK KMX CNC CONTROLLER, INSTALLED NEW IN 2023, OFFERING CNC OPERATION IN THE X AND Y AXES, ALONG WITH MANUAL OPERATION VIA HANDWHEELS. THE MACHINE IS DRIVEN BY A 3 HP SPINDLE, UTILIZING AN R-8 TAPER AND PROVIDING A VARIABLE SPEED RANGE OF 60 TO 4,000 RPM. TRAVEL CAPACITIES INCLUDE 36" LONGITUDINALLY (X), 15" CROSS (Y), 16" ON THE KNEE (Z), AND 5" OF SPINDLE (QUILL) TRAVEL WITH QUILL FEEDS OF .0015/.0028/.0047 IPR. THE ARTICULATING HEAD PERMITS A TILT OF 90° LEFT/RIGHT AND 45° FRONT/REAR. POWER FEED IS AVAILABLE ON THE X, Y, AND Z AXES. APPROXIMATE MACHINE WEIGHT IS 3,040-3,500 LBS WITH DIMENSIONS OF 7' X 7' X 7'. THE PROTOTRAK KMX SYSTEM INCLUDES AN IMPROVED AUTO GEOMETRY ENGINE® AND POWERFUL CANNED CYCLES FOR FUNCTIONS LIKE POSITION, DRILL, BOLT HOLE, MILL, AND VARIOUS POCKET AND PROFILE ROUTINES. THE MILL ALSO FEATURES A KURT POWER DRAW BAR.
