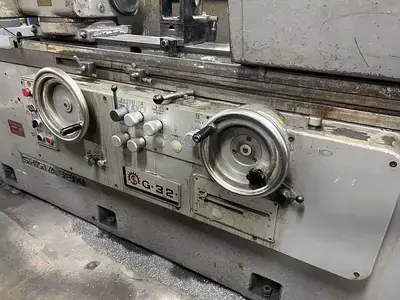

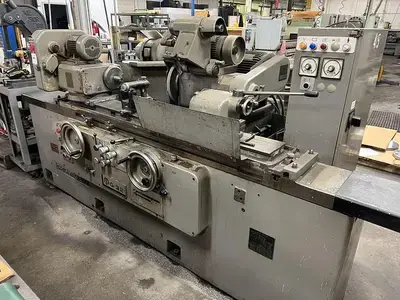

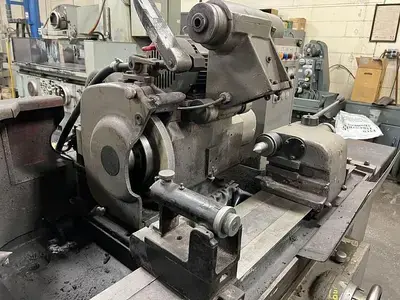

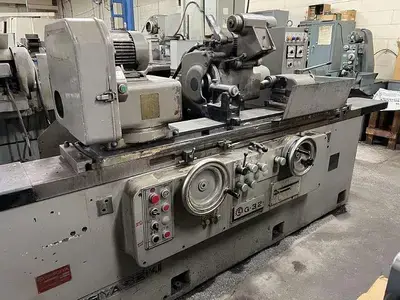

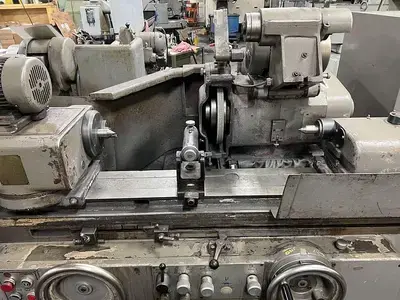

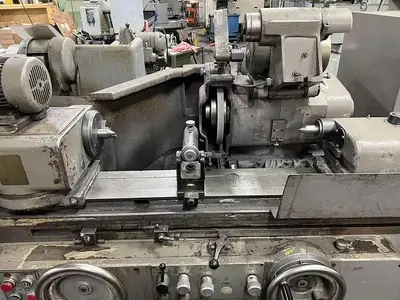

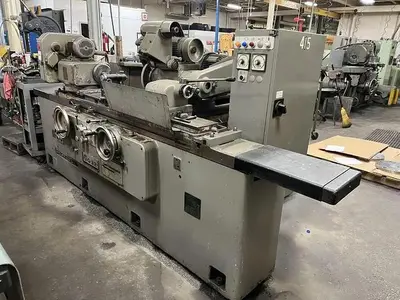

THE SHIGIYA MODEL GUA30-100 UNIVERSAL CYLINDRICAL GRINDER IS A HYDRAULIC AUTOMATIC INFEED MACHINE FEATURING A 12.6" MAXIMUM SWING OVER THE TABLE AND A 40" NOMINAL DISTANCE BETWEEN CENTERS, ACCOMMODATING WORKPIECES UP TO 287 LBS. IT IS EQUIPPED WITH A SWING-DOWN INTERNAL ATTACHMENT AND AN AUTOMATIC GRINDING CYCLE INCLUDING RAPID WHEEL APPROACH, AUTOMATIC INFEED, SIZING SPARK-OUT, AND RAPID WHEEL RETRACT.

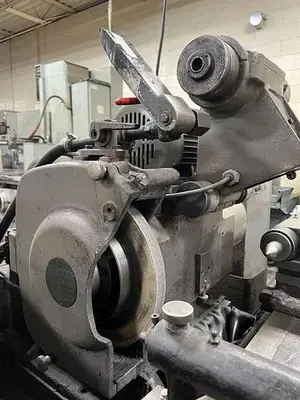

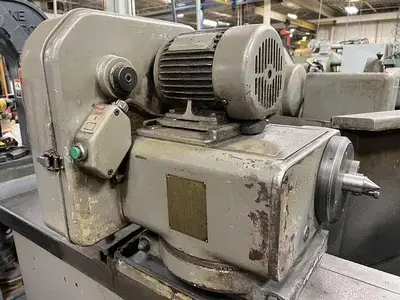

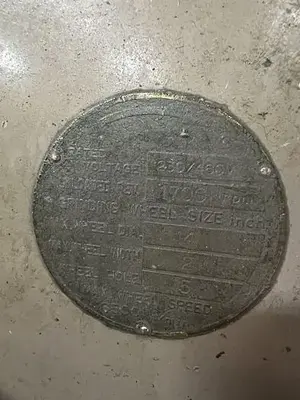

KEY SPECIFICATIONS INCLUDE A MAXIMUM GRINDING DIAMETER OF 11", A 46" WORK TABLE STROKE, AND A TABLE SWIVEL RANGE OF 10 DEGREES. THE GRINDING WHEEL MEASURES 14" IN DIAMETER WITH A 5" HOLE AND ACCEPTS WIDTHS FROM 1" TO 2". THE MACHINE FEATURES A SWIVELING WORKHEAD (120 DEGREES) WITH LIVE/DEAD SPINDLE FUNCTIONALITY, AND A TABLE-MOUNTED DRESSER. POWER IS SUPPLIED BY A 5 HP GRINDING WHEELHEAD SPINDLE MOTOR AND A 0.4 HP WORKHEAD SPINDLE MOTOR. WORKHEAD SPINDLE SPEEDS RANGE FROM 20 TO 380 RPM. ELECTRICAL REQUIREMENTS ARE 230/460/3/60. THE APPROXIMATE WEIGHT IS 6850 LBS.
