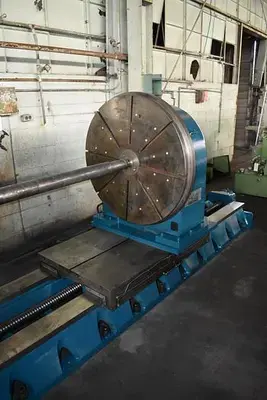

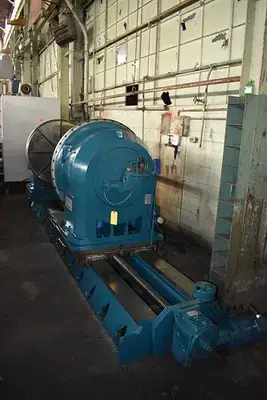

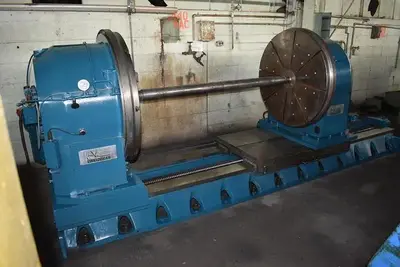

THE EIMELDINGEN/RUSACH VERTICAL ROTARY TABLE SYSTEM CONSISTS OF TWO 39.5" MODEL 5-1010 ROTARY TABLES, EACH PAIRED WITH A TAILSTOCK AND A HEAVY-DUTY MASTER SLIDE MODEL FT7-MF158-SF50-T59.
EACH 39.37-INCH (1000MM) DIAMETER ROTARY TABLE IS DRIVEN BY A FANUC SERVO MOTOR AND FEATURES AN ACTIVE CLAMPING MECHANISM. KEY SPECIFICATIONS INCLUDE A MAIN GEAR RATIO OF 360:1, EIGHT 18MM T-SLOTS, AND A 3.94-INCH CENTER HOLE. THE SYSTEM IS ENGINEERED FOR SUBSTANTIAL LOADS, WITH A UNIFORM LOAD CAPACITY OF 13,200 LBS (6000KG).
THE INTEGRATED HEIDENHAIN MEASURING SYSTEM AND BALL SCREW CONTRIBUTE TO PRECISION. CLAMPING IS MANAGED BY A HYDRAULIC/PNEUMATIC CLAMPING UNIT, WITH A STANDARD CLAMPING TORQUE OF 190,550 LB/IN (22,000 NM) AND A MAXIMUM MILLING TORQUE OF 164,567 LB/IN (19,000 NM). THE OVERALL DISTANCE BETWEEN CENTERS IS APPROXIMATELY 108 INCHES. THE SYSTEM INCLUDES AN EMERSON INVERTER DUTY DRIVE.
