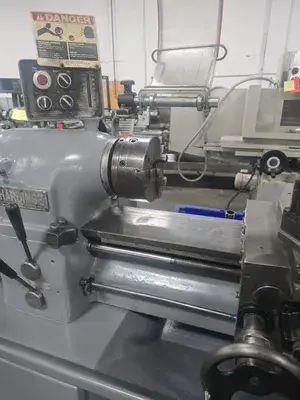

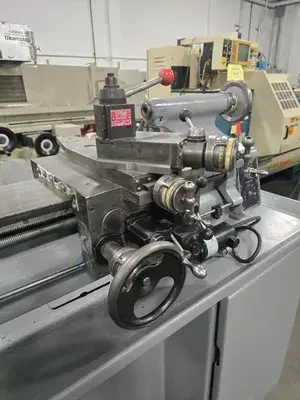

USED HARDINGE HLV-H-EM

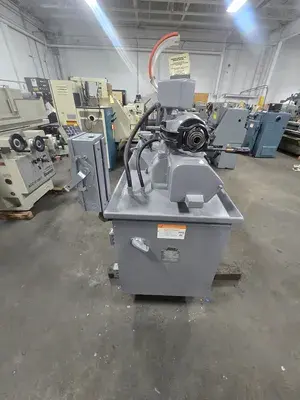

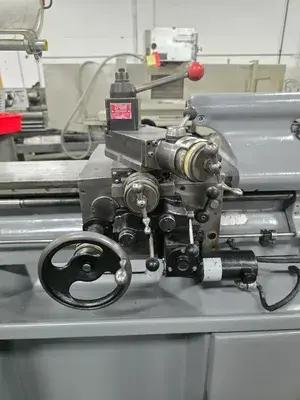

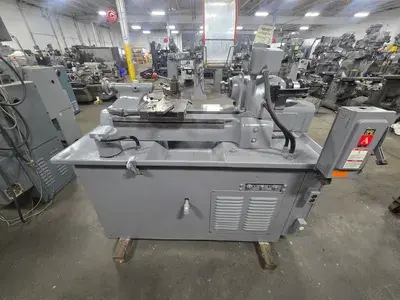

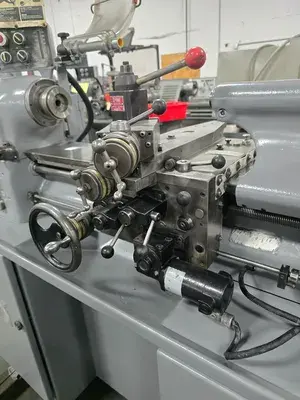

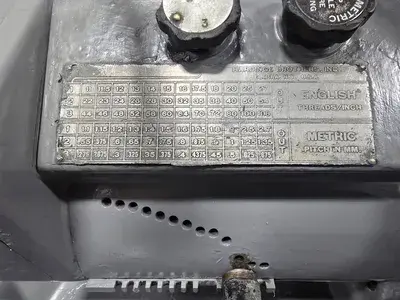

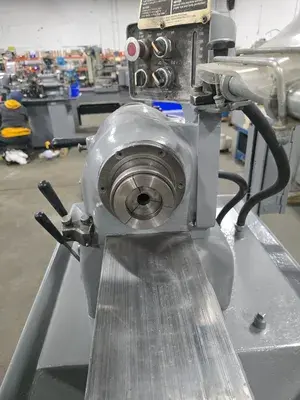

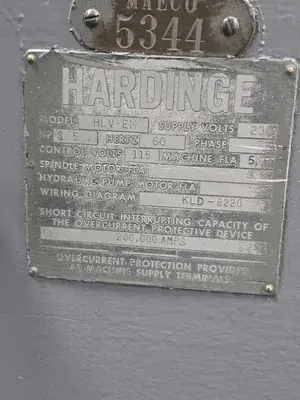

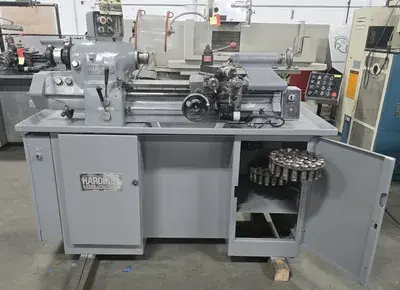

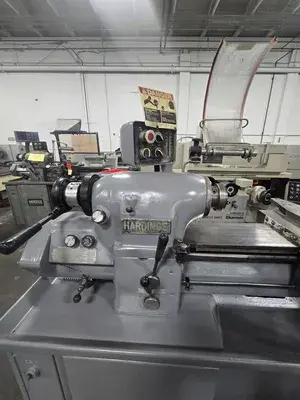

THIS HARDINGE HLV-H-EM TOOL ROOM LATHE FEATURES AN 11-INCH SWING OVER THE BED AND 18 INCHES BETWEEN CENTERS. THE SPINDLE, CONSTRUCTED WITH HARDINGE BALL BEARINGS, HAS A HARDINGE TAPERED NOSE. SPINDLE CAPACITY IS 1-1/16 INCHES WITH ROUND TYPE 5C COLLETS, 1-1/16 INCHES TO 6 INCHES WITH STEP CHUCKS, 5 INCHES WITH JAW CHUCKS, AND 3 INCHES WITH EXPANDING COLLETS. VARIABLE SPINDLE SPEEDS RANGE FROM 125 TO 3,000 R.P.M., WITH A 1-1/4 INCH HOLE THROUGH THE SPINDLE. IT OFFERS A 9-INCH SWING OVER THE CARRIAGE AND A 6-INCH SWING OVER THE CROSS SLIDE. THE COMPOUND SLIDE HAS A 3-INCH TRAVEL. POWER FEED RANGES ARE 5/16 – 7 I.P.M. FOR CARRIAGE AND 3/16 - 4 I.P.M. FOR CROSS SLIDE. THE TAILSTOCK SPINDLE HAS A 1-3/8 INCH DIAMETER AND A #2 MT TAPER. THREADING CAPABILITIES INCLUDE AN INCH RANGE OF 11 - 108 T.P.I. (36 SETTINGS) AND A METRIC RANGE OF 0.275 - 2.7 MM (36 SETTINGS), FACILITATED BY A DUAL GEARBOX. THE MACHINE INCLUDES A COLLET CLOSER, 3 JAW CHUCK, DORIAN QUICK CHANGE TOOL POST WITH HOLDERS, 5C COLLETS, AND A SELF-CONTAINED COOLANT SYSTEM. POWER IS SUPPLIED BY A .5 - 1 H.P., 230 VOLT, TWO-SPEED MAIN DRIVE MOTOR. THE MACHINE WEIGHS 1750 LBS. WITH DIMENSIONS OF 70 INCHES LONG BY 30 INCHES WIDE BY 60 INCHES HIGH.
