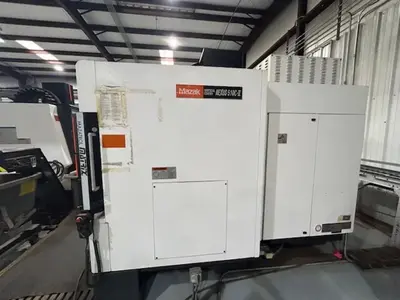

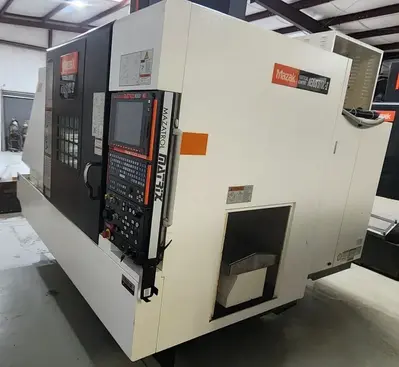

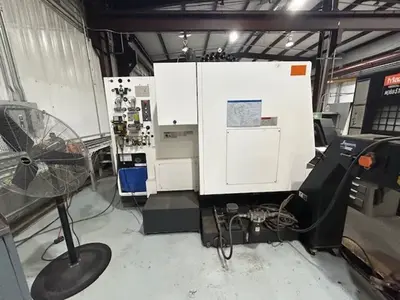

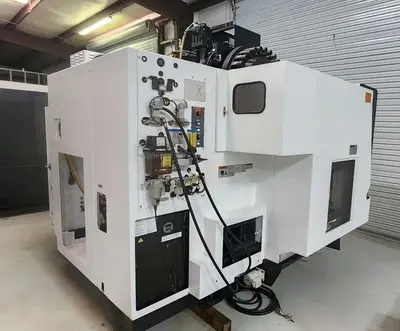

USED 2013 MAZAK NEXUS 510C-II

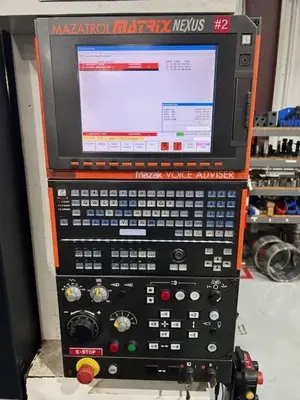

THE 2013 MAZAK NEXUS 510C-II IS A CNC MACHINING CENTER CONTROLLED BY A MAZATROL MATRIX NEXUS CNC SYSTEM. THE MACHINE FEATURES AXIS TRAVELS OF X - 41.3 INCHES, Y - 20 INCHES, AND Z - 20 INCHES, OPERATING WITH 4 AXES. THE WORK ENVELOPE IS SUPPORTED BY A 51.18 INCH BY 21.65 INCH TABLE WITH A LOAD CAPACITY OF 2,630 LBS. THE SPINDLE DELIVERS 25 HP AND A MAXIMUM SPEED OF 12,000 RPM, UTILIZING A CAT #40 TAPER. TOOL CHANGES ARE HANDLED BY A 30-POSITION AUTOMATIC TOOL CHANGER (ATC), ACCOMMODATING TOOLS UP TO 4.92 INCHES IN DIAMETER, 13.78 INCHES IN LENGTH, AND 17.64 LBS IN WEIGHT. MOVEMENT IS CHARACTERIZED BY A RAPID TRAVERSE RATE OF 1,417 IPM ON THE X, Y, AND Z AXES, AND A CUTTING FEED RATE OF 787 IPM. ADDITIONAL FEATURES INCLUDE THROUGH-SPINDLE COOLANT (TSC) PREP AND A JORGENSEN CHIP CONVEYOR. THE MACHINE OPERATES ON 208V 3 PHASE POWER, WITH OVERALL DIMENSIONS OF 120″ X 112″ X 114″ HIGH AND A TOTAL WEIGHT OF 15,200 LBS.
