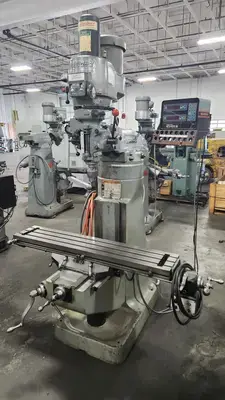

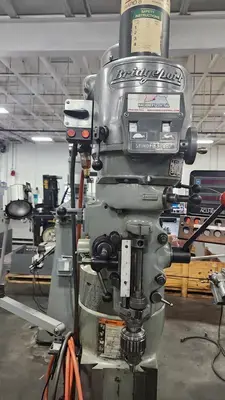

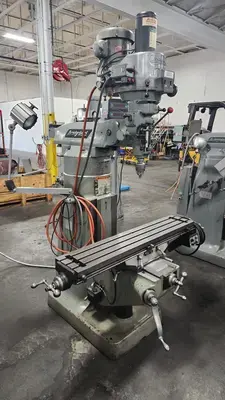

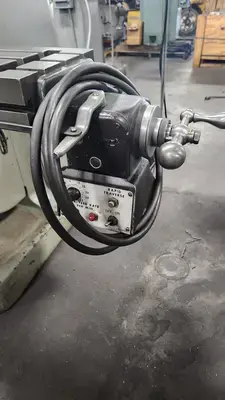

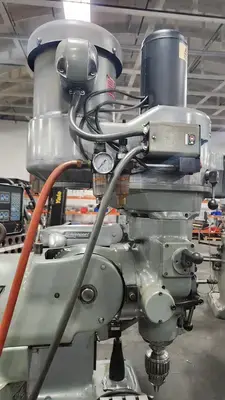

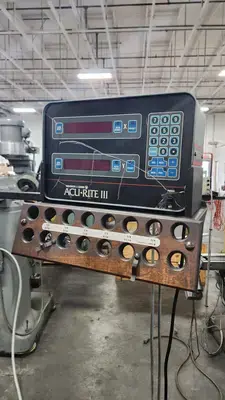

THE BRIDGEPORT SERIES 1 KNEE MILL IS EQUIPPED WITH A VARIABLE SPEED 2 HP 2J HEAD AND A 9" X 42" TABLE. IT FEATURES CHROME WAYS, A BRIDGEPORT X-AXIS POWER FEED, AND A BRIDGEPORT POWER DRAW BAR FOR ENHANCED FUNCTIONALITY. THE MILL INCORPORATES AN ACU-RITE X & Y DIGITAL READ OUT AND A BIJUR ONE SHOT LUBE SYSTEM.
KEY SPECIFICATIONS INCLUDE: TABLE TRAVEL (X-AXIS) OF 31 IN. (787MM), SADDLE TRAVEL (Y-AXIS) OF 12 IN. (305MM), AND A KNEE TRAVEL (Z-AXIS) OF 16 IN. (406MM). THE R-8 SPINDLE OFFERS AN INFINITELY VARIABLE SPEED RANGE OF 500 – 4200 RPM (HIGH) AND 60 – 500 RPM (LOW) AT 60 HZ. THE SPINDLE HAS A 2 HP CONTINUOUS AC POWER RATING.
THE MACHINE’S DIMENSIONS INCLUDE A MAXIMUM WORKPIECE WEIGHT CAPACITY OF 750 LBS. (340 KG), A NET WEIGHT OF 1930 LB. (875KG), AND A HEIGHT OF 87 IN. (2.21M). IT UTILIZES 208/230/460 VOLTS, 3 PHASE, 50/60 CYCLE INPUT POWER WITH A 4KVA CAPACITY.
