USED LEBLOND F21 REGAL

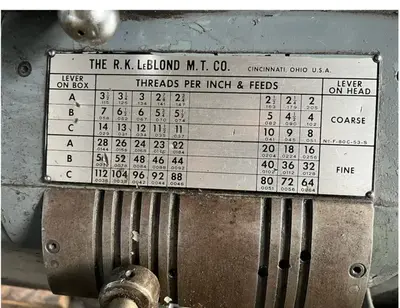

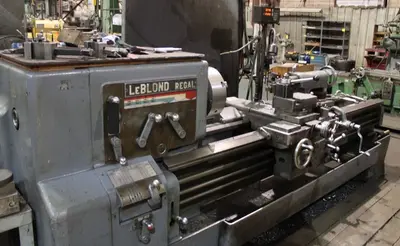

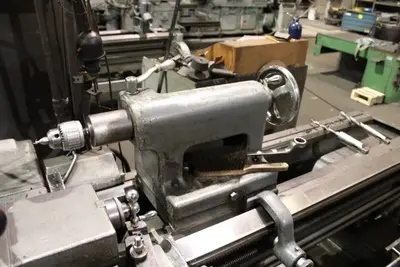

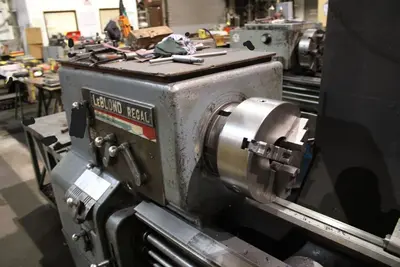

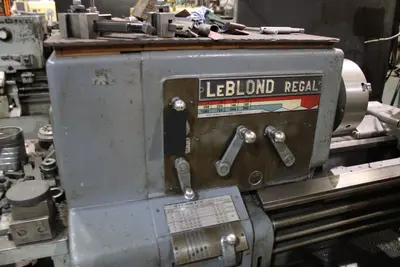

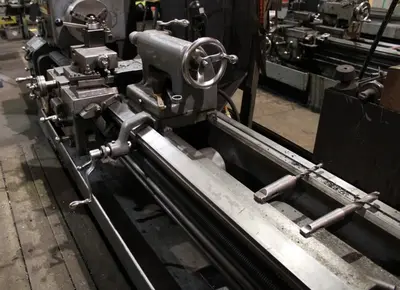

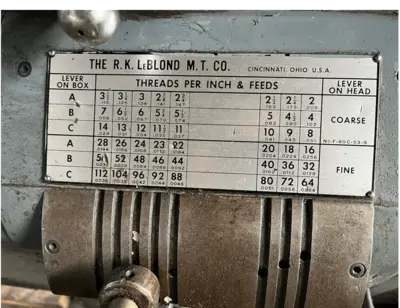

THE LEBLOND F21 REGAL ENGINE LATHE FEATURES AN ACTUAL SWING OVER THE BED WAYS OF 22.25 INCHES, A RATED SWING OF 21 INCHES, AND A 72-INCH DISTANCE BETWEEN CENTERS. THE SWING OVER THE CROSS SLIDE MEASURES 14.25 INCHES, WITH THE CROSS-SLIDE OFFERING 13.25 INCHES OF TRAVEL. THE SPINDLE BORE IS 2.1875 INCHES, DRIVEN BY A 10 HP MAIN MOTOR OPERATING AT 1735 RPM. THIS SETUP PROVIDES 12 SPINDLE SPEEDS RANGING FROM 27 TO 1080 RPM. THE MACHINE INCLUDES A QUICK CHANGE GEAR BOX TO ACHIEVE 56 CARRIAGE LONGITUDINAL FEEDS FROM 0.0036 TO 0.205 IPR AND 56 THREAD CHANGES RANGING FROM 2 TO 112 TPI. THE TAILSTOCK HAS A 3.125-INCH SPINDLE DIAMETER AND 7.5 INCHES OF TRAVEL. STANDARD EQUIPMENT LISTED INCLUDES DIGITAL READOUTS, A 12-INCH 3-JAW CHUCK, FLAME HARDENED BED WAYS, TWO STEADY RESTS, A THREADING DIAL, AND A FULL LENGTH COOLANT-CHIP PAN. THE ELECTRICAL SYSTEM IS SPECIFIED AS 220-440/3/60.
