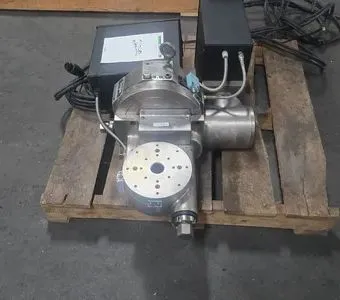

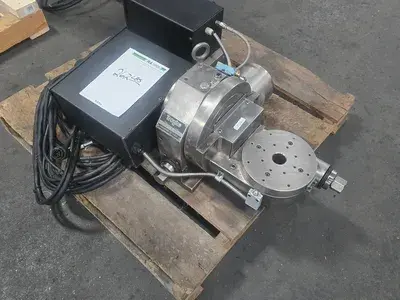

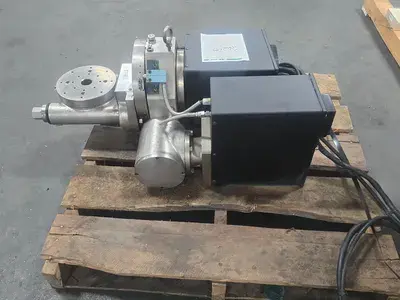

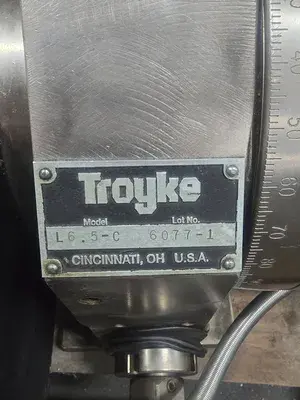

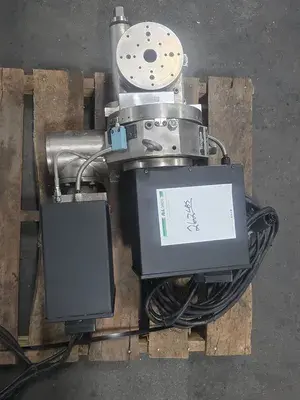

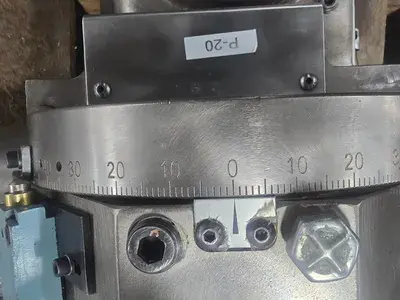

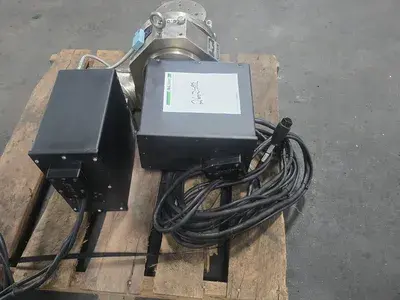

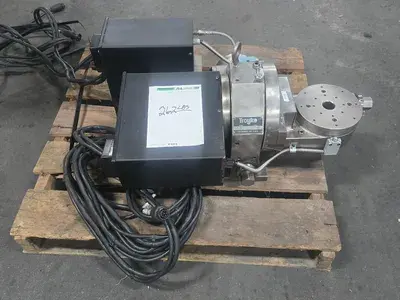

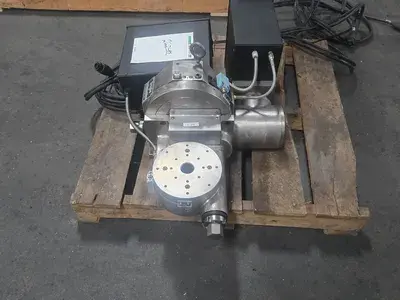

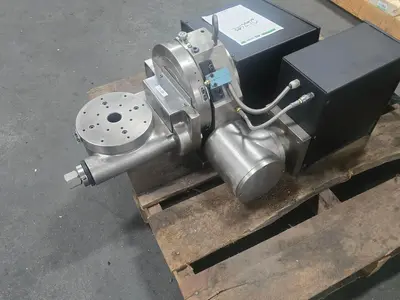

USED TROYKE L6.5-C

THE TROYKE L6.5-C IS A ROTARY AXIS CENTERED ON A TILT AXIS, DESIGNED FOR COMPLEX 5-AXIS MACHINING APPLICATIONS. IT FEATURES A 6.5-INCH TURNTABLE DIAMETER WITH A STANDARD THRU-HOLE DIAMETER OF 1.181 INCHES, SUPPORTING A MAXIMUM LOAD CAPACITY OF 100 POUNDS. THE ROTARY AXIS HAS A STANDARD TOTAL GEAR RATIO OF 80:1, ALLOWING A MAXIMUM SPEED RANGE OF 0-10 RPM, AND DELIVERS CONTINUOUS TORQUE OF 94 LBS-FT. IT OFFERS A PROGRAMMABLE RESOLUTION OF 0.001 DEGREES, WITH A STANDARD TOTAL ANGULAR ACCURACY OF +/- 60 SECONDS AND REPEATABILITY OF +/- 20 SECONDS. THE UNIT WEIGHS 400 POUNDS, WITH A SHIPPING WEIGHT OF 475 POUNDS. THE TILT AXIS HAS A STANDARD TOTAL GEAR RATIO OF 240:1, WITH A MAXIMUM SPEED RANGE OF 0-2 RPM. IT EMPLOYS A PNEUMATIC BRAKE METHOD, PROVIDING BRAKE TORQUE OF 125 LBS-FT AT 100 PSI. THE TILT AXIS OFFERS A MAXIMUM TRAVEL RANGE OF +100/-20 DEGREES, WITH A STANDARD TOTAL ANGULAR ACCURACY OF +/- 60 SECONDS AND REPEATABILITY OF +/- 30 SECONDS.
