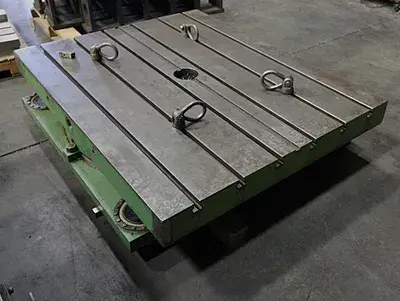

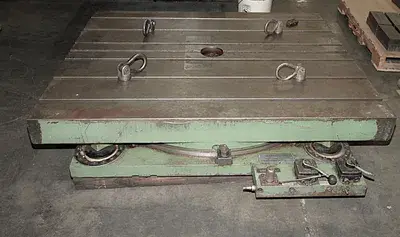

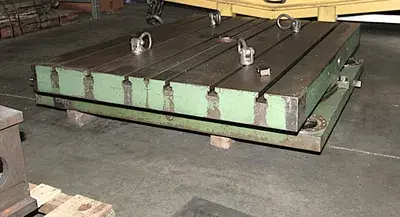

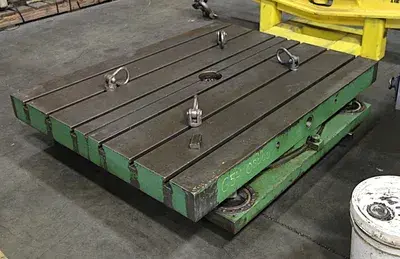

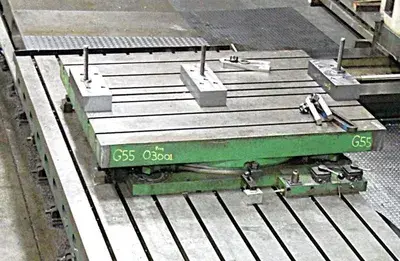

THE GIDDINGS & LEWIS (G&L) 48 X 60 AIR LIFT ROTARY TABLE IS A HEAVY-DUTY INDEXING SOLUTION DESIGNED FOR PRECISION WORKHOLDING. THIS UNIT FEATURES A WORKING SURFACE MEASURING 48 INCHES BY 60 INCHES (1,219.2 MM X 1,524 MM).
KEY FEATURES INCLUDE A HYDROSTATIC OR AIR-LIFT SYSTEM TO FACILITATE EASY ROTATION AND POSITIONING. INDEXING CAPABILITIES INCLUDE 360-DEGREE TABLE GRADUATIONS, TYPICALLY IN 1/2 DEGREE INCREMENTS, AND MAY FEATURE FOUR 90-DEGREE SHOT PIN INDEX POSITIONS. THE TABLE IS EQUIPPED WITH SIX T-SLOTS FOR SECURE WORK MOUNTING. CLAMPING IS ACHIEVED VIA A PNEUMATIC SYSTEM. THIS ROTARY INDEX TABLE IS ENGINEERED TO HANDLE SUBSTANTIAL WORKPIECES, WITH A TYPICAL CAPACITY UP TO 25,000 POUNDS. BASE DIMENSIONS ARE APPROXIMATELY 48 INCHES BY 52 INCHES, WITH AN OVERALL HEIGHT OF AROUND 11-3/4 INCHES.
