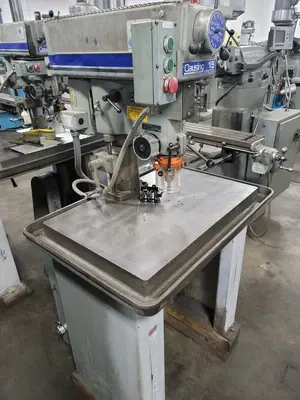

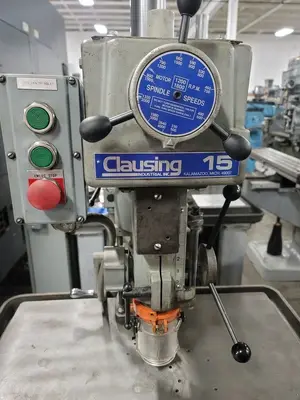

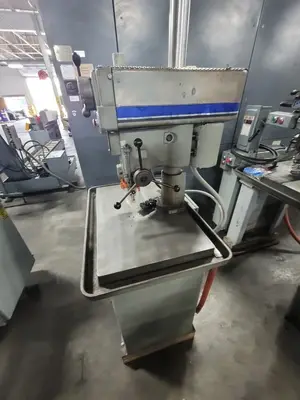

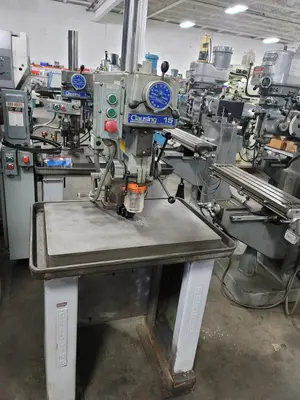

USED CLAUSING 1685

THE CLAUSING 1685 15" DRILL PRESS FEATURES INFINITELY VARIABLE SPINDLE SPEEDS RANGING FROM 330 TO 2,640 R.P.M., POWERED BY A 3/4 HP MOTOR (3 PHASE 208-230/480). IT IS EQUIPPED WITH A PRODUCTION TABLE, HAVING AN OVERALL SIZE OF 25" X 45" AND A WORKING SURFACE OF 20" X 40". THE MACHINE OFFERS A SPINDLE TRAVEL OF 4-3/4" AND UTILIZES A #33 JARNO SPINDLE TAPER. THE DISTANCE FROM THE FACE OF THE COLUMN TO THE CENTERLINE OF THE SPINDLE IS 7-1/2". DRILLING CAPACITY IS RATED AT 5/8" FOR CAST IRON AND 1/2" FOR MILD STEEL. THE MACHINE HAS A 2" QUILL DIAMETER AND A 3" COLUMN DIAMETER. IT INCLUDES A COOLANT TANK AND PUMP.
