USED LEBLOND 15 REGAL

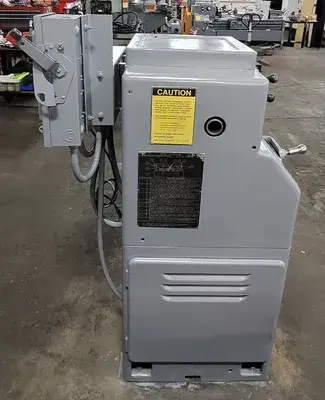

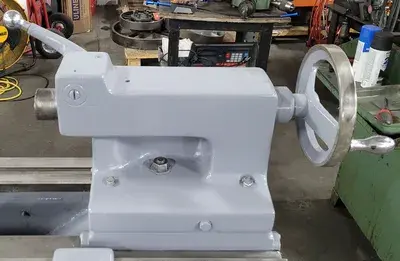

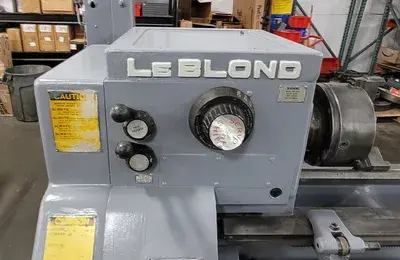

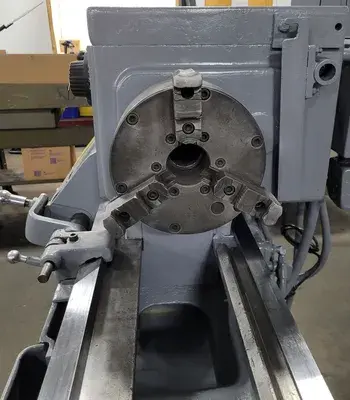

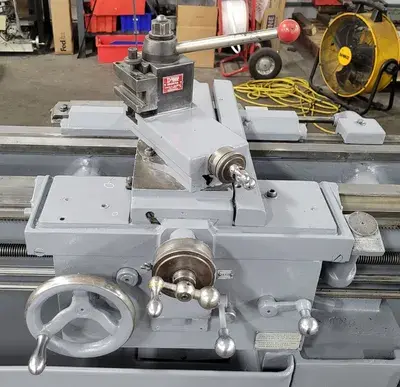

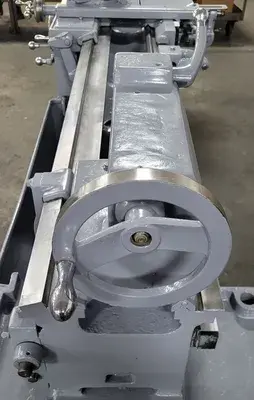

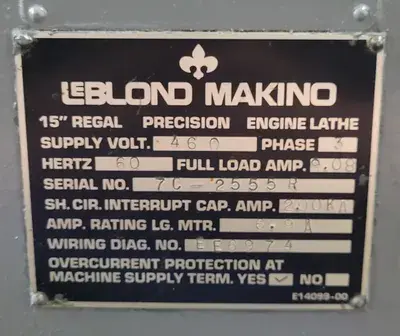

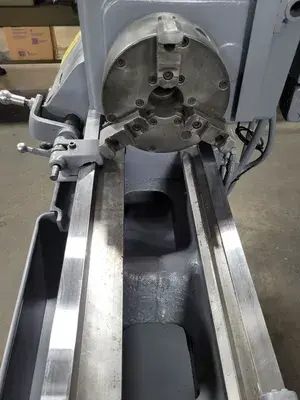

THIS IS A LEBLOND 15 REGAL ENGINE LATHE WITH A TAPER ATTACHMENT, FEATURING A 15" X 72" CAPACITY. IT OFFERS A SWING OVER THE BED OF APPROXIMATELY 15.5 INCHES AND A DISTANCE BETWEEN CENTERS OF APPROXIMATELY 72 INCHES. THE SPINDLE BORE MEASURES APPROXIMATELY 2.125" TO 2.2656" (2-1/8" TO 2-1/4"). POWER IS SUPPLIED BY A 7.5 HP SPINDLE MOTOR. THE MACHINE PROVIDES 12 SPINDLE SPEEDS, TYPICALLY RANGING FROM 45 TO 1200 RPM. FEED RATES ARE NUMEROUS (E.G., 48), RANGING FROM APPROXIMATELY 0.0018 TO 0.104 IPR. IT HANDLES A WIDE RANGE OF THREADS PER INCH (TPI), SUCH AS 4 TO 224 TPI, AND USES A #3MT TAILSTOCK TAPER. THE LATHE OPERATES ON 460V 3 PHASE POWER AND HAS A WEIGHT OF 3,500 LBS.
