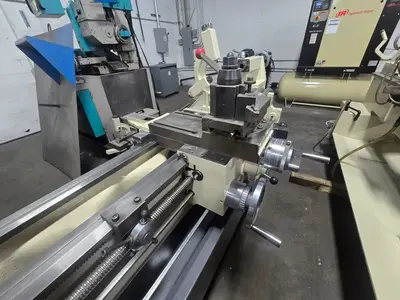

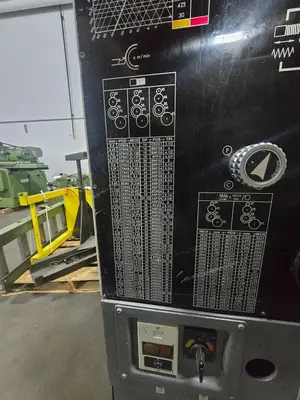

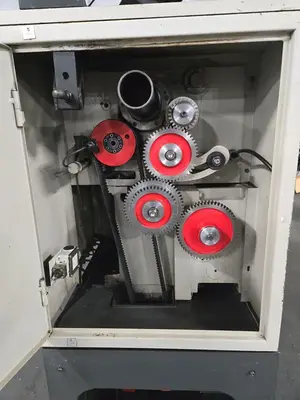

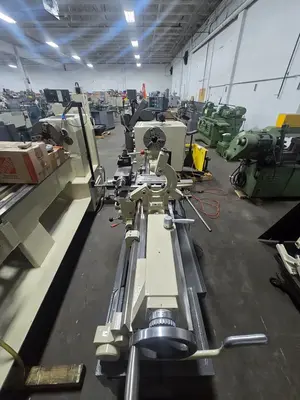

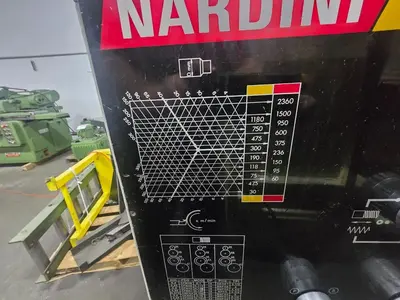

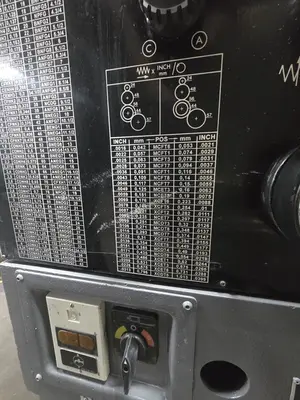

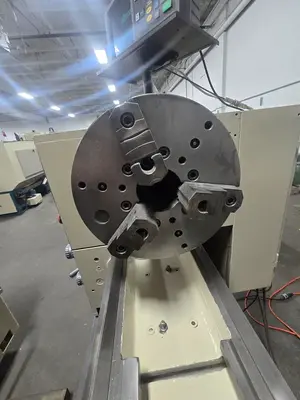

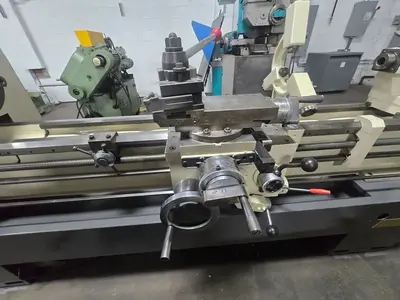

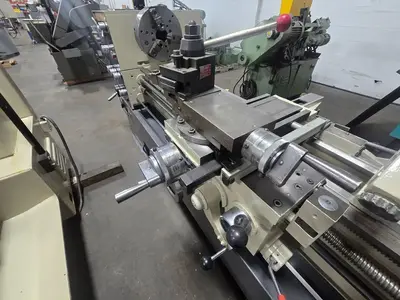

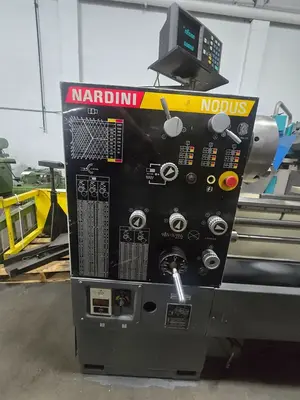

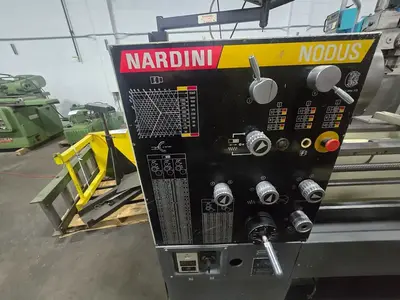

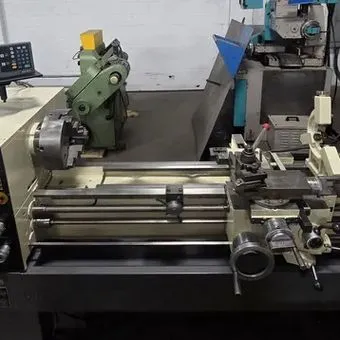

THE NARDINI NODUS ND1760 GAP BED LATHE FEATURES A 17-1/4" SWING OVER THE BED, A 24-3/4" SWING IN THE REMOVEABLE GAP, AND A 10-5/8" SWING OVER THE CROSS SLIDE, WITH A 60" DISTANCE BETWEEN CENTERS. ITS SPINDLE, FEATURING A D1-6"CAMLOCK NOSE AND A 2-1/32" HOLE, PROVIDES 18 SPEEDS RANGING FROM 30 TO 2360 RPM. FEED RANGES ARE .0021 TO .0976 IPR LONGITUDINALLY AND .0010 TO .0488 IPR CROSS-FEED. THE MACHINE SUPPORTS 54 ENGLISH THREAD PITCHES FROM 2-3/4 TO 42 TPI AND 54 METRIC PITCHES FROM .4 TO 18.472 MM. THE TAILSTOCK HAS A #4MT TAPER AND 7-7/8" OF SPINDLE TRAVEL. IT IS POWERED BY AN 8 / 4 HORSEPOWER TWO-SPEED MAIN MOTOR WIRED FOR 440V 3 PHASE. THE LATHE IS EQUIPPED WITH AN ACURITE DRO, TAPER TURNING ATTACHMENT, 12” 3-JAW CHUCK, DORIAN QUICK CHANGE TOOLPOST, COOLANT SYSTEM, AND HARDENED & GROUND BEDWAYS. APPROXIMATE DIMENSIONS ARE 120"L X 40"W X 60"H WITH AN APPROXIMATE WEIGHT OF 3,250 LBS.
